Help CenterVertical Injection Molding Machine Plug USB Making Machine,plastic Injection
Related Products
-
Injection Molding MachineUS$ 10,000 - 50,000MOQ: 1 Set -
Plastic Injection Molding Machine Vertical Type-2016 Quality ChoiceUS$ 2,000 - 8,000MOQ: 1 Set
-
LSR Vertical Injection Moulding Machine-double Sliding TableUS$ 1 - 46,000MOQ: 1 Set
-
Injection Molding Machine Rotary TypeUS$ 22,500 - 31,430MOQ: 1 Set
-
Vertical Injection Moulding Machine -price -power Plug Quality ChoiceUS$ 1 - 11,000MOQ: 1 Set

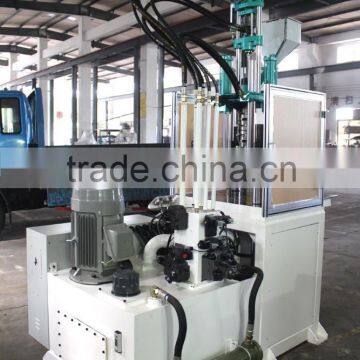

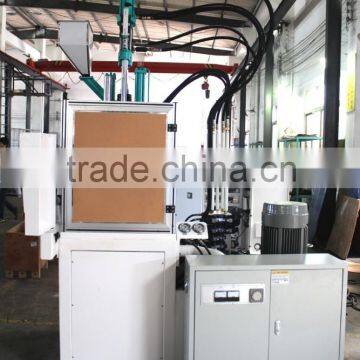

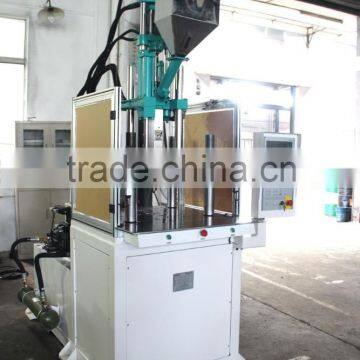

1.vertical injection molding machine .

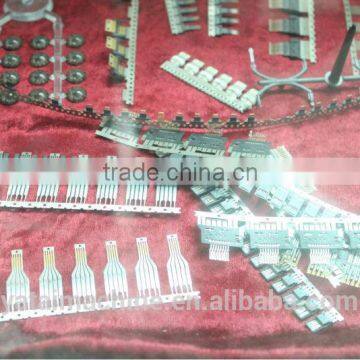

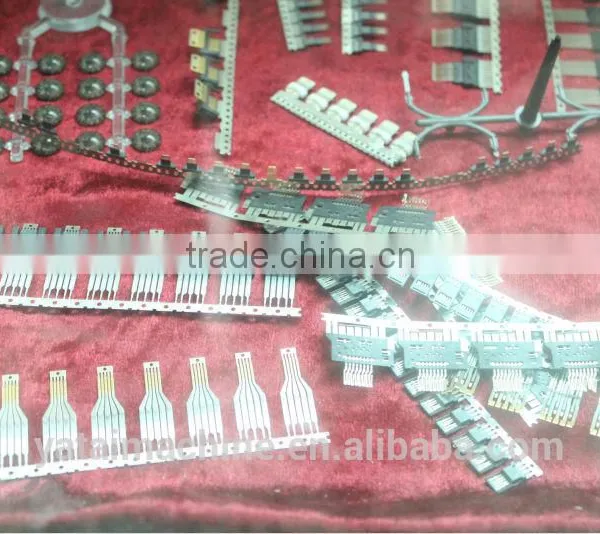

2.Products :USB cable or Power plug ...etc
3.plastic injection molding machine special in vertical type
4.Customzied design is availiable .
5.Hydraulic system is Yuken famous brand name and long life time .
6.
| Unit | V85 | |||||
| Injection Unit | Screw Diameter | mm | 32 | 36 | 40 | |
| Theoretical Injection Volume | cm3 | 113 | 142 | 176 | ||
| Injection Weight(PS) | g(oz) | 105(3.7) | 132(4.6) | 164(5.8) | ||
| Max.Injection Pressure | Mpa(kgf/cm2) | 229(2331) | 181(1842) | 146(1492) | ||
| Injection Rate | cm3/s | 86 | 109 | 134 | ||
| Injection Speed | mm/s | 107(138) | ||||
| Screw Speed Rotation | r.p.m | 0-300 | ||||
| Nozzle Out From Platens | mm | ≥45 | ||||
| Clamping Unit | Clamping Force | KN(tf) | 833(85) | |||
| Clamping Stroke | mm | 250 | ||||
| Min.Mold Thickness | mm | 230(330) | ||||
| Max.Opening | mm | 480(580) | ||||
| Distance Between Tie Bars | mm | 500*385 | ||||
| Max.Mould Size | mm | 550*480 | ||||
| Platen/Slide Size | mm | 680*570 | ||||
| Ejector Distance | mm | 50 | ||||
| Ejector Force | KN(tf) | 26.5(2.7) | ||||
| Others | System Pressure | Mpa(kgf/cm2) | 13.7(140) | |||
| Oil Tank Capacity | L | 280 | ||||
| Electric Power | KW(HP) | 15(20) | ||||
| Heater Power | KW | 6.4 | ||||
| Machine Dimensions | L*W | mm | 1960*1410 | |||
| H | mm | 2632(3352) | ||||
| Machine Weight | tf | 3.0 | ||||
1.More than 10 years of experience of installation service and trainging service . Trush us ,we can do .
1. We will arrange manufacture after confirmation,we can delivery it usually after 35days

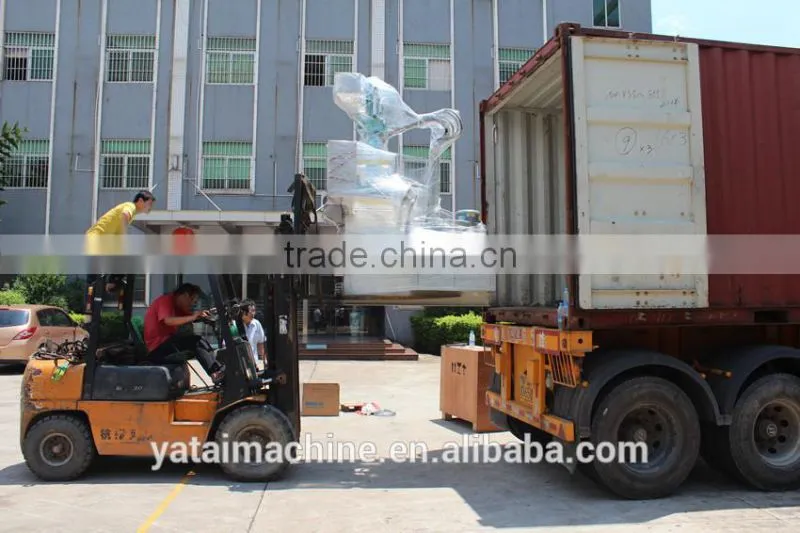

2. According to the destination,we will compare several transportation companies and select the most suitable and economic one to provide service for us

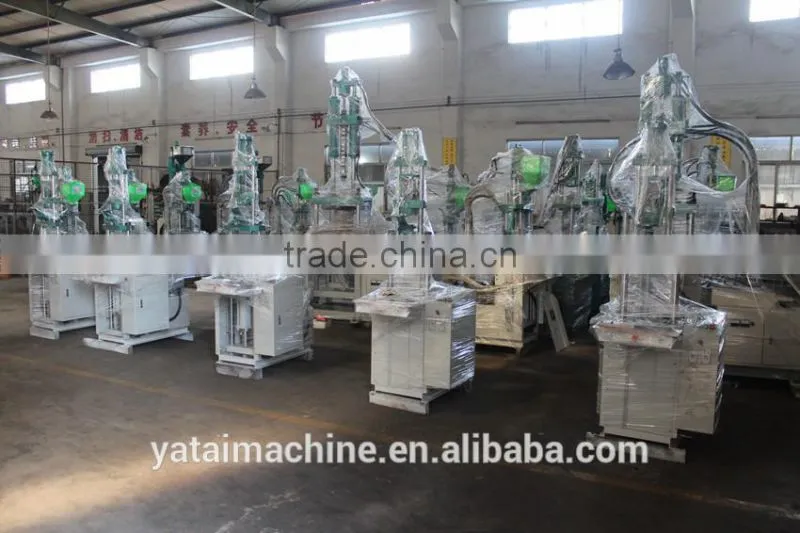

Zhongshan Yatai Machinery co.,ltd is located in Zhongshan City,China.The company has a factory area of more than 25000m2 and 60000m2 branch factory in Dengzhou city. Since it's establishment in 2007 Yatai Machinery has grown to a leading company in Plastic injection moulding machine ,wire harness equipment with customized automatic production line .Since it's establishment in 2007 Yatai Machinery has grown to a leading company in Vertiical Plastic injection molding machine ,Inserting mold production progress update and wire harness equipment.For now, we have 12branch factory in CHINA and more than 30 researcher .There are electrical engineer,hydraulic engineer ,program engineer,mechanical engineer ..etc . Our R&D team are good at the latest MDT, CAD, SOLIDWORKS and other well-known design software. Due to the three-dimensional parametric modeling, application of standard parts library and mechanical structure simulation, analysis of the main components of the high pressure zone, the distribution of pressure, peak pressure, finite element analysis is ready to risk area were calculated. To help designers to quickly understand, assess, and modify the design scheme, to ensure optimal design and reliability of important parts.From 2007 to 2014. Yatai group has more than 185 items of Patents and lots of inspection equipment to make sure each machine and parts under the QC control.Yatai has carried out industry-university research cooperation with HUST,SCUT,NUAA etc. Special in Project “Stirling solar engine” with NUAA UNIVERSITY and”full automatic cutting,stripping,crimping machine” with SCUT university .In the project development stage, the company has passed exam of the German TUV RHEINLAND certification, the European electrical safety standard CE and ISO9001 international quality management system certification. And obtained the accreditation of national "high-tech enterprises" which is only one in Zhongshan. Welcome to view website at : or
1) Can I order in 1unit ?
Of course you can
2) Can i be a agent in my market ?
We need talk details about agent agreement .
3)Did you have CE certificate ?
Yes, we have
4) How long year you do this machine
our factory start this equipment making since 1992.
5)what's your website ?
is offical one .
6) How i can talk with you online ?
QQ&wechat Number :251926058
what's app Number:+86-18664939871
Skype ID: jeapear
