Help CenterLSR Vertical Injection Moulding Machine-double Sliding Table
Related Products
-
Injection Molding Machine Rotary TypeUS$ 22,500 - 31,430MOQ: 1 Set -
Vertical Injection Moulding Machine -price -power Plug Quality ChoiceUS$ 1 - 11,000MOQ: 1 Set
-
Automatic Soldering Machine-both EndsUS$ 1 - 46,000MOQ: 1 Set
-
Led Bulbs Making Machine-vertical Injection Moulding Machine-rotary TableUS$ 1 - 54,000MOQ: 1 Set
-
Led Bulbs Making Machine by Vertical Injection Moulding Machine-rotary Table Quality ChoiceUS$ 1 - 54,000MOQ: 1 Set

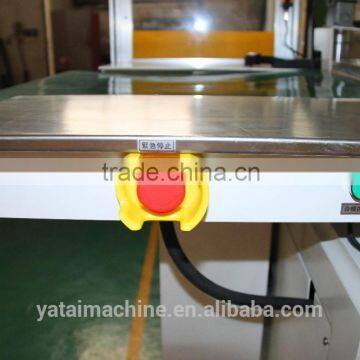

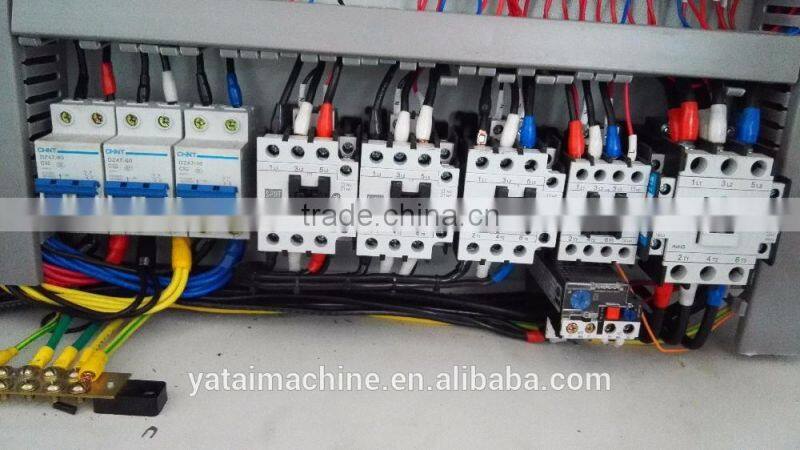

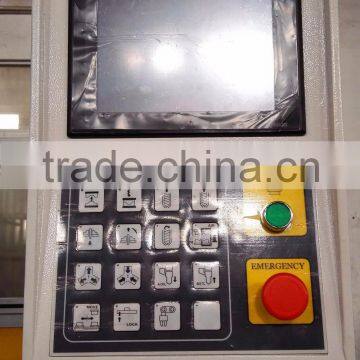

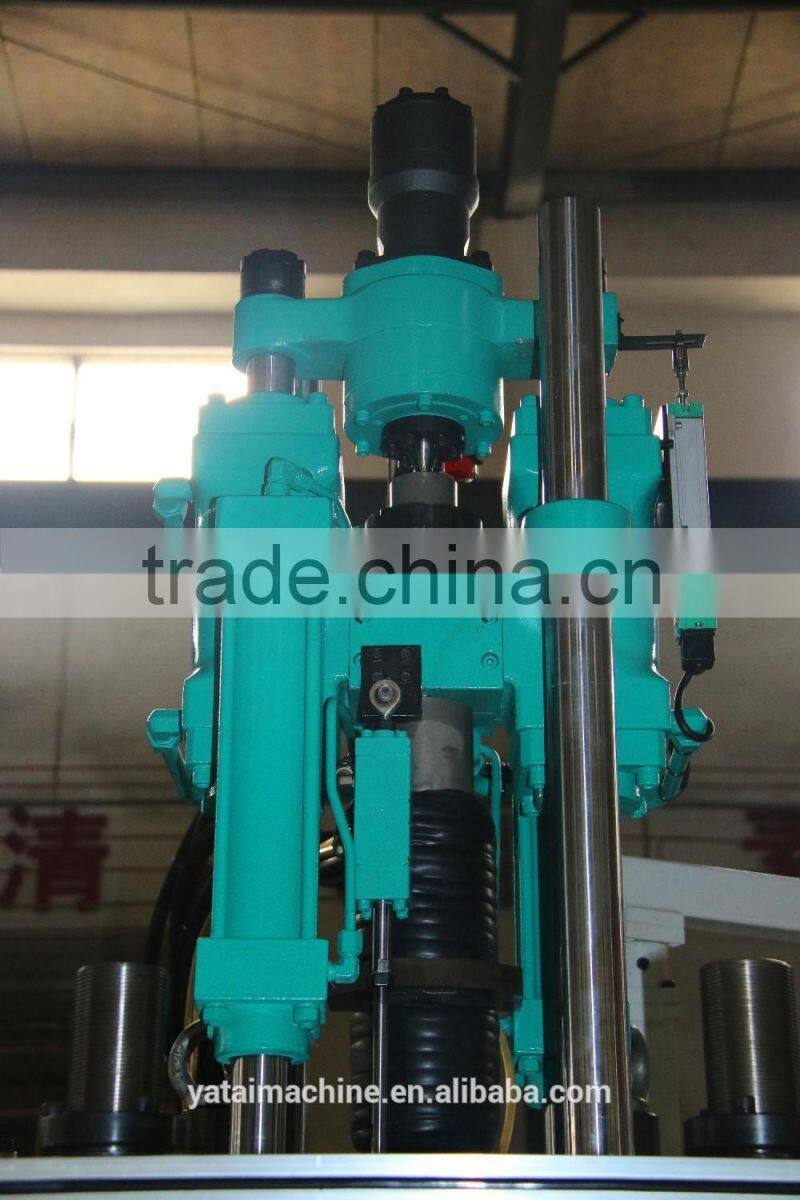

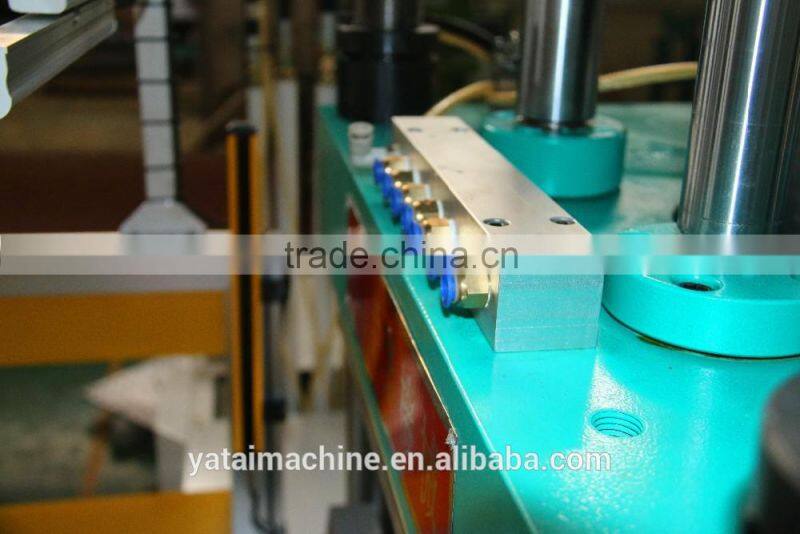

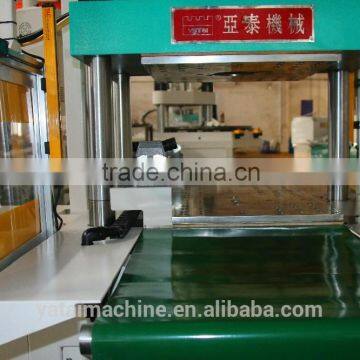

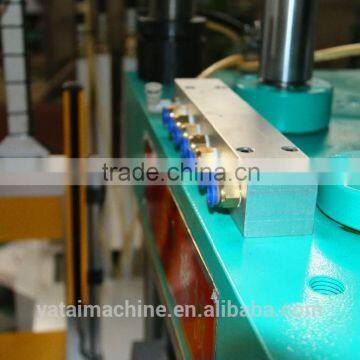

Machine's picture details as below
| V160SD-GII-LSR Technical Data Sheet Specification | ||||||
| INJECTION UNIT | Screw Diameter | mm | Φ50 | Φ55 | ||
| Theoretical Injection Volume | cm3 | 392 | 475 | |||
| Injection Rate | cm3/sec | 220 | 266 | |||
| Injection Speed | mm/s | 112 | 112 | |||
| Max.Injection Pressure | Mpa(kgf/cm2) | 176(1803) | 146(1490) | |||
| Screw Speed Rotation | r.p.m | 0~300 | ||||
| Nozzle Out From Platens | mm | 0-45 | ||||
| CLAMPING UNIT | Clamping Force | kN(tf) | 1568(160) | |||
| Clamping Stroke | mm | 300 | ||||
| Min.Mold Thickness | mm | 234(334) | ||||
| Max.Opening | mm | 534(634) | ||||
| Distance Between Tie Bars | mm | 860*420 | ||||
| Max Mould Size | mm | 550*550 | ||||
| Ejector Distance | mm | 95 | ||||
| Ejector Force | kN(tf) | 45(4.6) | ||||
| OTHERS | System Pressure | Mpa(kgf/cm2) | 13.7(140) | |||
| Oil Tank Capacity | L | 415 | ||||
| Electric Power | kW(HP) | 22.5(30) | ||||
| Machine Dimension | L*W | mm | 2296*2160 | |||
| H | mm | 3630(4530) | ||||
| Machine Weight | ton | 9.1 | ||||
2. We will arrange to manufacture the second day after confirmation,we can delivery it usually after 30 days
3. According to the destination,we will compare several transportation companies and select the most suitable and economic one to provide service for us
1. Provide free guidance of before you start use our plastic injection molding machine
2. 1 year warranty
3. Free remote guidance by video chat when you have problem during use the injection molding machine

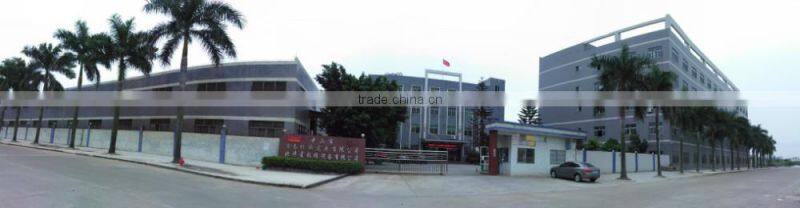

Zhongshan Yatai Machinery co.,ltd is located in Zhongshan City,China.The company has a factory area of more than 25000m2 and 60000m2 branch factory in Dengzhou city. Since it's establishment in 2007 Yatai Machinery has grown to a leading company in Plastic injection molding ,wire harness equipment and automatic production line .Since it's establishment in 2007 Yatai Machinery has grown to a leading company in CNC,Plastic injection molding ,3C maker and wire harness equipment.For now, we have 12branch factory in CHINA and more than 30 researcher .There are electrical engineer,hydraulic engineer ,program engineer,mechanical engineer ..etc . Our R&D team are good at the latest MDT, CAD, SOLIDWORKS and other well-known design software. Due to the three-dimensional parametric modeling, application of standard parts library and mechanical structure simulation, analysis of the main components of the high pressure zone, the distribution of pressure, peak pressure, finite element analysis is ready to risk area were calculated. To help designers to quickly understand, assess, and modify the design scheme, to ensure optimal design and reliability of important parts.From 2007 to 2014. Yatai group has more than 200 items of Patents and lots of inspection equipment to make sure each machine and parts under the QC control.Yatai has carried out industry-university research cooperation with HUST,SCUT,NUAA etc. Special in Project "Dish/Stirling solar engine "with NUAA UNIVERSITY and "full automatic cutting,stripping,crimping machine" with SCUT university .In the project development stage, the company has passed exam of the German TUV RHEINLAND certification, the European electrical safety standard CE and ISO9001 international quality management system certification. And obtained the accreditation of national "high-tech enterprises" which is only one in Zhongshan.

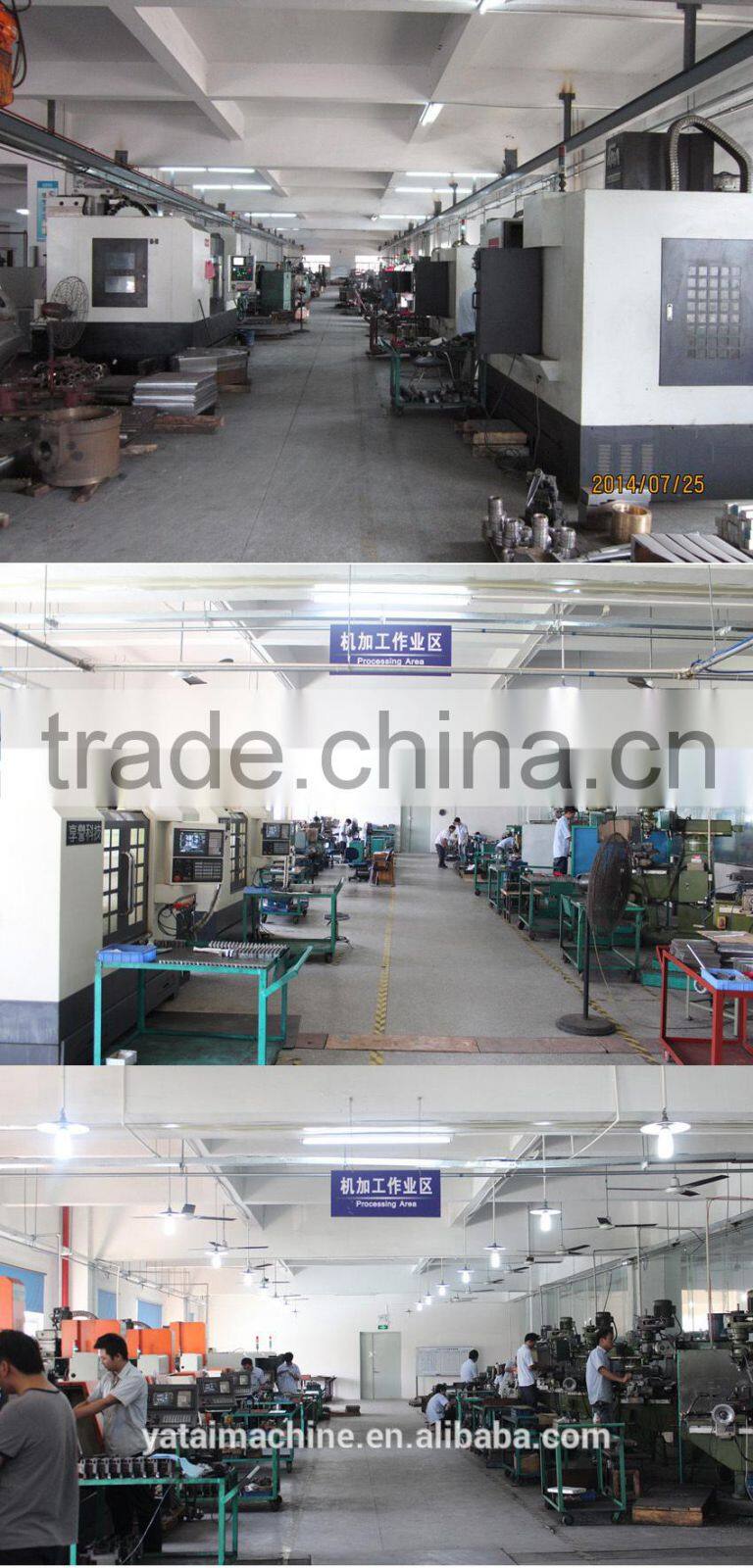

Factory room details and CNC group we made each parts on the machine by ourself .QC is the first thing.
1) Can I order in 1unit ?
Of course you can.
2) Can i be a agent in my market ?
We need talk details about agent agreement .
3)Did you have CE certificate ?
Yes, we have.
4) How long year you do this machine
our factory start this equipment making since 1992.
5)what's your website ?
is official one .
6) How i can talk with you online ?
QQ&wechat Number :251926058
what's app Number:+86-18664939871
Skype ID: jeapear
7) I'm alone, I just want chat with some guy from China .
Errrrr. Fine , what's thing you want know about China ?
8) I saw you have lots of molding machine and wire harness machine.Are you a trade company ?
No. We are manufacturer. We have two important department .One is wire harness equipment in automatic design , the other one is injection molding machine .
