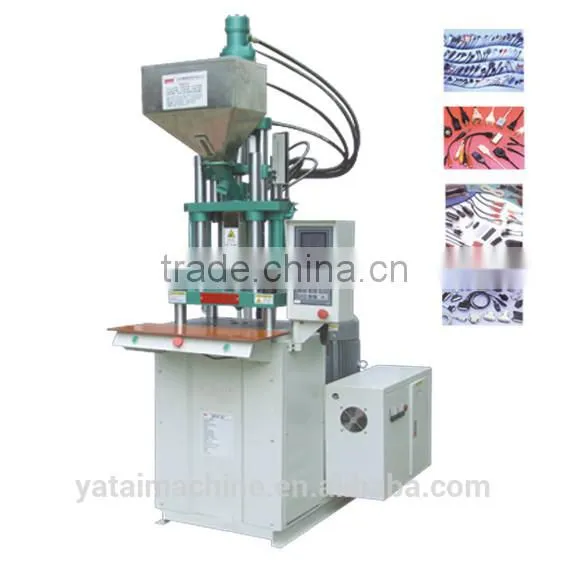

Vertical Injection Molding Machine
US$ 1 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Preform Injection
Style:
Vertical
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Preform Injection
Style
Vertical
Brand Name
Qianke
Model Number
YT-35T-C
Place of Origin
Guangdong, China
Plastic Type
Thermosetting
Automatic
Yes
Injection Weight
32-78g
Injection Rate
57-98cm3/s
Clamping Force
35Tf, 35tf
Power(W)
7.9KW
Certification
ISO9001,CE
After-sales Service Provided
Overseas service center available
Specifications
1.Vertical clamping,Vertical injection,easy to insert2.Famous brand in each parts.
3.Yuken,Omron
|
Injection Unit |
Screw Diameter | mm | 22 | 25 | 28 | |
| Theoretical Injection Volume | cm3 | 53 | 68.8 | 86 | ||
| Injection Weight(PS) | g(oz) | 49(1.7) | 63.8(2.2) | 80(2.8) | ||
| Max.Injection Pressure | Mpa(kgf/cm2) | 248(2530) | 192(1960) | 153(1563) | ||
| Injection Rate | cm3/s | 44 | 57 | 71 | ||
| Injection Speed | mm/s | 116(186) | ||||
| Screw Speed Rotation | r.p.m | 0-300 | ||||
| Nozzle Out From Platens | mm | ≥45 | ||||
|
Clamping Unit |
Clamping Force | KN(tf) | 343(35) | |||
| Clamping Stroke | mm | 200 | ||||
| Min.Mold Thickness | mm | 150(200) | ||||
| Max.Opening | mm | 350(400) | ||||
| Distance Between Tie Bars | mm | 370*210 | ||||
| Max.Mould Size | mm | 350*340 | ||||
| Platen/Slide Size | mm | 500*360 | ||||
| Ejector Distance | mm | 40 | ||||
| Ejector Force | KN(tf) | 17.2(1.75) | ||||
| Others | System Pressure | Mpa(kgf/cm2) | 13.7(140) | |||
| Oil Tank Capacity | L | 130 | ||||
| Electric Power | KW(HP) | 5.5(7.5) | ||||
| Heater Power | KW | 3.6 | ||||
| Machine Dimensions | L*W | mm | 1539*1152 | |||
| H | mm | 2196(2811) | ||||
| Machine Weight | tf | 1.3 | ||||
1. We will arrange to manufacture the second day after confirmation,we can delivery it usually after 20 days
2. According to the destination,we will compare several transportation companies and select the most suitable and economic one to provide service for you
1. Provide free guidance of before you start use our USB injection molding machine
2. 1 year warranty
3. Free remote guidance by video chat when you have problem during use the USB injection molding machine
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2007
Factory Size
10,000-30,000 square meters
Total Employees
101 - 200 People
