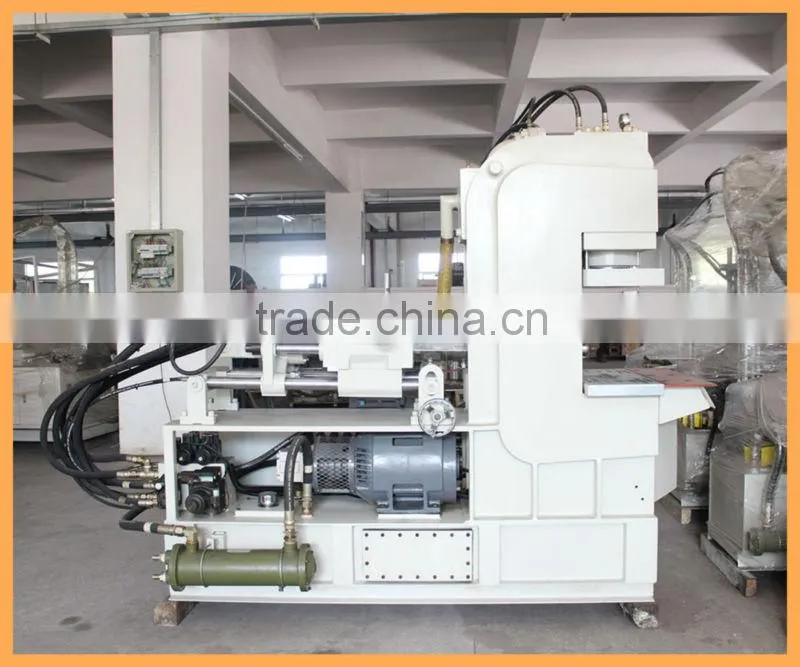

Help CenterPower Plug Cord Injection Molding Machine
Related Products
-
Hot Sale Injection Molding MachineUS$ 1 - 8,000MOQ: 1 Set -
Injection Molding Machine Audio Plug MakingUS$ 1 - 8,000MOQ: 1 Set
-
Small Size Vertical Injection MachineUS$ 1 - 9,000MOQ: 1 Set
-
LED Lamp Making Machine CE CertificateUS$ 1 - 54,000MOQ: 1 Set
-
Inserting Injection Molding MachineUS$ 1 - 8,000MOQ: 1 Set
Specifications

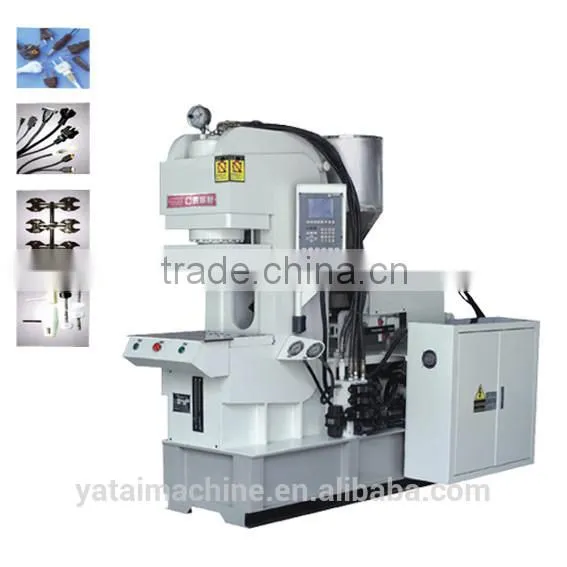

1.Vertical clamping,horizontal injection,easy to insert2.Full-automatic insert molding
3.We have the video about it
|
Injection Unit |
Screw Diameter | mm | 25 | 30 | |
| Theoretical Injection Volume | cm3 | 69 | 106 | ||
| Injection Weight(PS) | g(oz) | 64(2.2) | 98(3.5) | ||
| Max.Injection Pressure | Mpa(kgf/cm2) | 286(2912) | 214(2178) | ||
| Injection Rate | cm3/s | 69 | 73 | ||
| Injection Speed | mm/s | 140 | |||
| Screw Speed Rotation | r.p.m | 0-240 | |||
|
Clamping Unit |
Clamping Force | KN(tf) | 539(55) | ||
| Clamping Stroke | mm | 200 | |||
| Min.Mold Thickness | mm | 175 | |||
| Max.Opening | mm | 375 | |||
| Max.Mould Size | mm | 450*200 | |||
| Platen/Slide Size | mm | 490*288 | |||
| Ejector Distance | mm | 90 | |||
| Ejector Force | KN(tf) | 26.5(2.7) | |||
| Others | System Pressure | Mpa(kgf/cm2) | 13.7(140) | ||
| Oil Tank Capacity | L | 200 | |||
| Electric Power | KW(HP) | 7.5(10) | |||
| Heater Power | KW | 6.7 | |||
| Machine Dimensions | L*W | mm | 2410*1070 | ||
| H | mm | 1940 | |||
| Machine Weight | tf | 2.8 | |||
1. We will arrange to manufacture the second day after confirmation,we can delivery it usually after 25 days
2. According to the destination,we will compare several transportation companies and select the most suitable and economic one to provide service for us
1. Check and test the machine carefully before shipping
2. Provide free guidance of before you start use our plastic injection molding machine
3. 1 year warranty
4. Free remote guidance by video chat when you have problem during use the plastic injection molding machine
Zhongshan Yatai Machinery Co., Ltd. is biggest wire processing factory in the area of perl river delta region ,Specialized in R&D and producing plastic injection molding machines, full auto wire stripping crimping machines, cutting stripping machines, tube cutting machines and automatic robot hands.If you want to know more about our pruducts,please browse the website as follows
