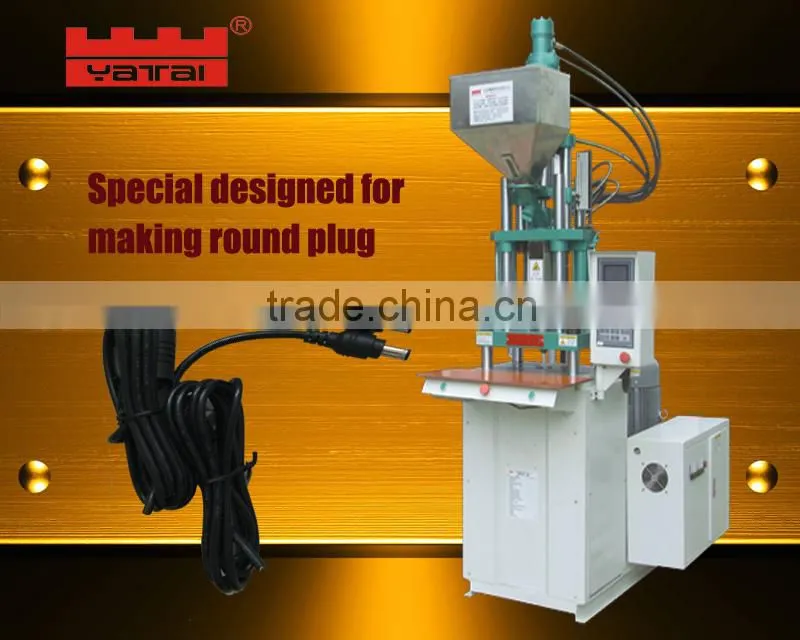

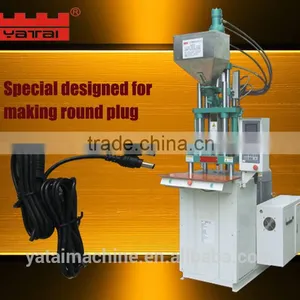

Round Plug Injection Molding Machine
US$ 1 - 6,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Preform Injection
Style:
Vertical
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Plastic Injection Molding Machine Best Price Quality ChoiceUS$ 1 - 8,000MOQ: 1 Set -
Plug Manufacturing MachineUS$ 1 - 8,000MOQ: 1 Set
-
China Cheap Injection Molding MachineUS$ 1 - 8,000MOQ: 1 Set
-
Vertical Injection Molding MachineUS$ 1 - 8,000MOQ: 1 Set
-
Plug Injection Molding Machine 85tonUS$ 1 - 25,000MOQ: 1 Set
Condition
New
Type
Preform Injection
Style
Vertical
Brand Name
Qianke
Model Number
YT-25T-C
Place of Origin
Guangdong, China
Plastic Type
Thermosetting
Automatic
Yes
Injection Weight
36-65g
Injection Rate
44-67cm3/s
Clamping Force
25Tf, 25tf
Opening Stroke
215mm
Power(W)
6.7KW
Certification
ISO9001,CE
After-sales Service Provided
Overseas service center available
Specifications
1.Suitable for making round plug2.Cheap and economic
3.Vertical type with clamping force 25ton
|
Injection Unit |
Screw Diameter | mm | 22 | 30 | |
| Theoretical Injection Volume | cm3 | 36 | 86 | ||
| Injection Weight(PS) | g(oz) | 32(1.2) | 78(2.7) | ||
| Max.Injection Pressure | kgf/cm2 | 2089 | 1367 | ||
| Injection Rate | cm3/s | 33 | 67 | ||
| Screw Speed Rotation | r.p.m | 0-215 | |||
|
Clamping Unit |
Clamping Force | tf | 25 | ||
| Clamping Stroke | mm | 215 | |||
| Min.Mold Thickness | mm | 140 | |||
| Max.Opening | mm | 355 | |||
| Max.Mould Size | mm | 350*350 | |||
| Platen/Slide Size | mm | 500*340 | |||
| Ejector Force | tf | 1.7 | |||
| Others | System Pressure | kgf/cm2 | 140 | ||
| Oil Resservoir Capacity | L | 100 | |||
| Electric Power | KW(HP) | 6.2 | |||
| Heater Power | KW | 2.4 | |||
| Machine Dimensions | L*W | mm | 1200*800 | ||
| H | mm | 2300 | |||
| Machine Weight | kg | 1150 | |||
1. Before shipping,we will check and test the machine carfully
2. We will arrange to manufacture the second day after confirmation,we can delivery it usually after 15 days
3. According to the destination,we will compare several transportation companies and select the most suitable and economic one to provide service for us
1. Provide free guidance of before you start use our injection molding machine
2. 1 year warranty
3. Free remote guidance by video chat when you have problem during use the injection molding machine
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2007
Factory Size
10,000-30,000 square meters
Total Employees
101 - 200 People
