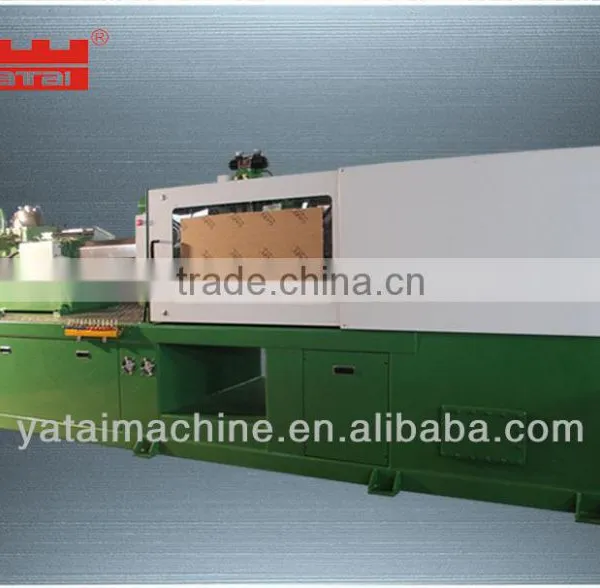

1000tf Horizontal Injection Molding Machine
US$ 5,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Preform Injection
Style:
Horizontal
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
850tf Horizontal Injection Molding MachineUS$ 5,000 - 30,000MOQ: 1 Set -
Medical Supplies Injection Molding MachineUS$ 1 - 80,000MOQ: 1 Set
-
Hydrauic Injection Molding Machine Cylinder Injection High PreciseUS$ 10,000 - 50,000MOQ: 1 Set
-
Injection Molding MachineUS$ 7,000 - 30,000MOQ: 1 Set
-
350tf Horizontal Injection Molding MachineUS$ 5,000 - 30,000MOQ: 1 Set
Condition
New
Type
Preform Injection
Style
Horizontal
Brand Name
YaTai
Model Number
NCII-1000
Place of Origin
Guangdong, China
Plastic Type
Thermoplastic
Automatic
Yes
Injection Weight
5720 6700 7785g
Injection Rate
75mm/s
Clamping Force
1000tf, 1000tf
Opening Stroke
1600mm
Power(W)
171.95kw
After-sales Service Provided
Overseas service center available
Specifications
1.Horizontal clamping,Vertical injection,easy to insert2.Full-automatic insert molding
3.The cooling time can be shortened
| Item | Unit | NCII-1000 | ||
| Screw Diameter | mm | 120 | 130 | 140 |
| Injection Weight(P.S.) | g | 5720 | 6700 | 7785 |
| oz | 202 | 237.5 | 276 | |
| Injection Pressure | kgf/cm2 | 2672 | 2277 | 1963 |
| Length/Diameter Ratio | L/D | 21.6 | 20 | 18.5 |
| Injection Speed | 75 | |||
| Injection Rate | mm/sec | 853 | 1001 | 1161 |
| Screw Speed | r.p.m | 90 | ||
| Plasticizing Capacity(P.S.) | kg/hr | 520 | 635 | 710 |
| Hopper Capacity | kg | 100 | ||
| Mold Opening Force | ton | 34.3 | ||
| Mold Opening Stroke | ton | 1000 | ||
| Mold Clamping Force | mm | 1600 | ||
| Min.Mold Thickness | mm | 530 | ||
| Max.Daylight Opening | mm | 2130 | ||
| Distance Between Tie Bars | mm | 1300*1300 | ||
| Mold Plate Dimension | mm | 1820*1820 | ||
| Ejector Force | ton | 29.2 | ||
| Ejector Stroke | mm | 250 | ||
| Ejector Quantity | p.c.s | 29 | ||
| Pump Motor | kw(HP) | 110(150) | ||
| Heater Band Capacity | kw | 61.95 | ||
| No.of Heating Zone | Nozzle+5 | |||
| Oiltank Capacity | L | 2580 | ||
| Machine Dimension(L*W*H) | m | 12*3.3*2.9 | ||
| Machine Weight | ton | 61 |
||
