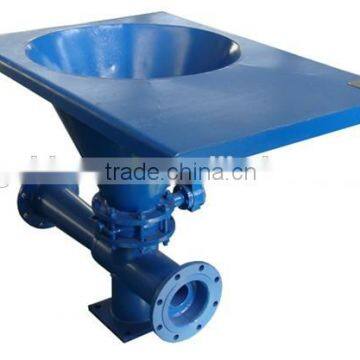

JSLH Series Jet Mixing Device
Jet mixing device is used to prepare or aggravate drilling fluid,change the density,viscosity,water loss of the drilling fluid.With the decive,the materials and agents can be mixed well.

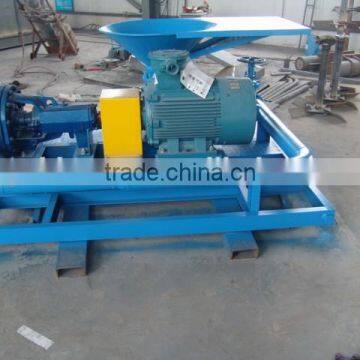

The jet mixing device is comprised of one sand pump,one jet mixer(or several pumps and mixers) ,valves and nvenient transporation,installation and service,etc.
We can offer various compoud type according to the customers’ requirements.
Main Technical Parameter
Model | JSLH150-55 | JSLH150-45 | JSLH150-37 |
Supporting pump | JSB8×6×14 | JSB8×6×11 | JSB6×5×11 |
Motor power | 55kW | 45kW | 37kW |
Discharge capacity | 240m3/h | 220m3/h | 200m3/h |
Working pressure | 0.25~0.6MPa | 0.25~0.6MPa | 0.25~0.6MPa |
Inlet diameter | 8″ | 8″ | 6″ |
Outlet diameter | 6″ | 6″ | 6″ |
Mixing speed | ≤100kg/min | ≤80kg/min | ≤60kg/min |
Weight | 1300kg | 1200kg | 1100kg |
Overall dimension | 2500×2300×1200mm | 2500×2300×1200mm | 2200×2200×1200mm |
Export packing or according clients demand
We also can supply the follows products :
1 | tubular | API5D drill pipe,API7 Drill collar, API 5CT coupling |
2 | well control system | BOP stack upto 15000 psi, choke &kill manifold ,control box for manifold ,choke &kill hose etc, Bop closing unit, high test unit |
3 | High pressure fluid control products | Chiksan swivel joint ,plug valve,pup joints ,hammer union etc |
4 | down hole tools | Drilling jar, stabilizer. Reamer ,casing scraper etc |
5 | Rotary and handling tools | manual tong, elevator, casing spider/elevator, rotary slip,hydraulic power tong |
| 1 | Founded | 2006 |
| 2 | Address | Dongying ,Shandong |
| 3 | Main products | Tubular( API5D drill pipe,API7 Drill collar, API 5CT coupling); well control system( BOP stack upto 15000 psi, choke &kill manifold ,control box for manifold ,choke &kill hose etc, Bop closing unit, high test unit); High pressure fluid control products( Chiksan swivel joint ,plug valve,pup joints ,hammer union etc); down hole tools( Drilling jar, stabilizer. Reamer ,casing scraper etc); Rotary and handling tools( manual tong, elevator, casing spider/elevator, rotary slip, hydraulic power tong) |
| 4 | Export | North America; south America; Eastern Europe; Southeast Asia; Africa; Mid East; Eastern Asia; Southern Europe; South Asia |
Why us GM(Goldenman)?
GM strongly believe that we offer a unique opportunity to the market by being able to offer equipment locally, with innovative pricing and terms of business which we believe separates us from the competition.
