Home > Electrical & Electronics > Relay & Contactor > Relay > ATDV-N Flush Mounted Type Manufacturer Twin Double Timer Relay With CE

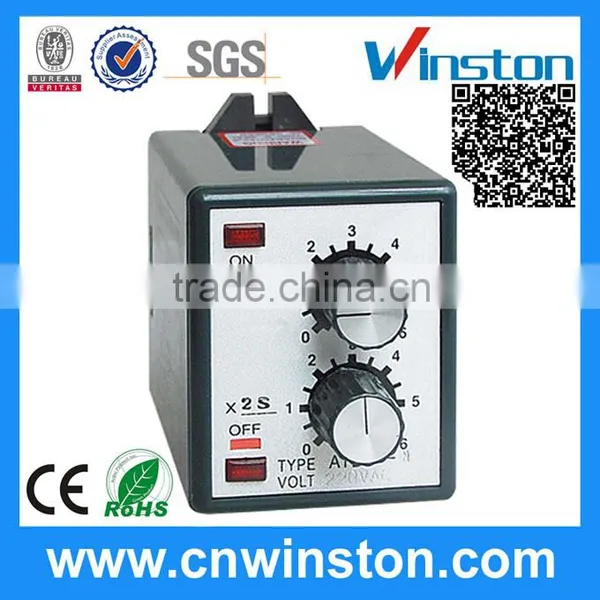

ATDV-N Flush Mounted Type Manufacturer Twin Double Timer Relay With CE

Name: ATDV-N Flush Mounted Type Manufacturer Twin Double Timer Relay With CE
Brand: Winston
SKU: 110978809
Availability: InStock

ATDV-N Flush Mounted Type Manufacturer Twin Double Timer Relay With CE thumbnail-1

ATDV-N Flush Mounted Type Manufacturer Twin Double Timer Relay With CE photo-1

US$ 5.5 - 8.5 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Winston

Model Number:

ATDV-N

Contact Supplier Request Quote Chat Now

Yueqing Winston Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Winston

Model Number ATDV-N

Theory Time Relay

Usage Auto

Size Miniature

Protect Feature Sealed

Contact Load Low Power

ATDV-N Flush Mounted Type Manufacturer Twin Double Timer Relay with CE

Features

1.Rated up to 220V
2.acceptable for OEM
ntact capacity 220V 3A
4.CE certification
5.IEC60947-4-1 stardand

Specifications

Type		ATDV-N			ATDV-Y
Dimensions		61HX49WX70D			88HX58WX68D
Mounting	Surface (-N)	PF083A(E) PS-08
Socket	Flush(-Y)	US-08 P3G-08
Full timing range		6S×6S,6S×60S,60Sx6S, 60S×60S,6M×6M 6M×60M,60M×6M,60M×60M, Longest time 12 hours upon clients' request
Rated voltage		DC(V):12,24 AC(V):12,24,110,220,240 50/60Hz
Indicator operation		ON,OFF Operation
O/P Contact	Model	ATDV-N		ATDV-Y
	Time limit 1c
	Time limit 2c	5A
	Instantaneous 1c
Service life	Mechanical	5000000 times
	Electrical	100000 times
Accuracy	Repeat error	±1% max	±2% max
	Setting error	±10% max	±20% max
	Voltage error	±1% max
	Temperature error	±2% max
Reset time		0.1 sec max
Consumed power		3VA
Ambient temperature		-10~+55
Ambient humidity		48-85% RH
Weight		160g		210g

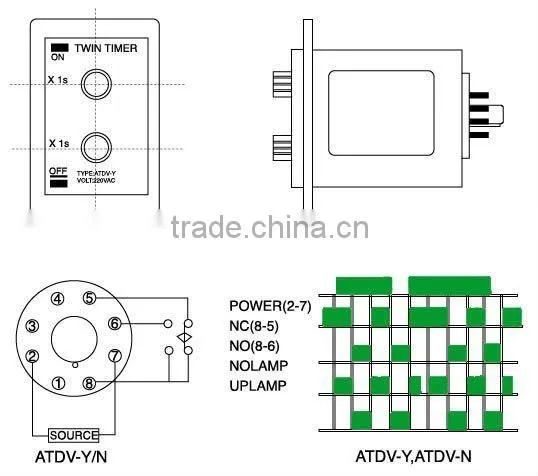

Dimension
