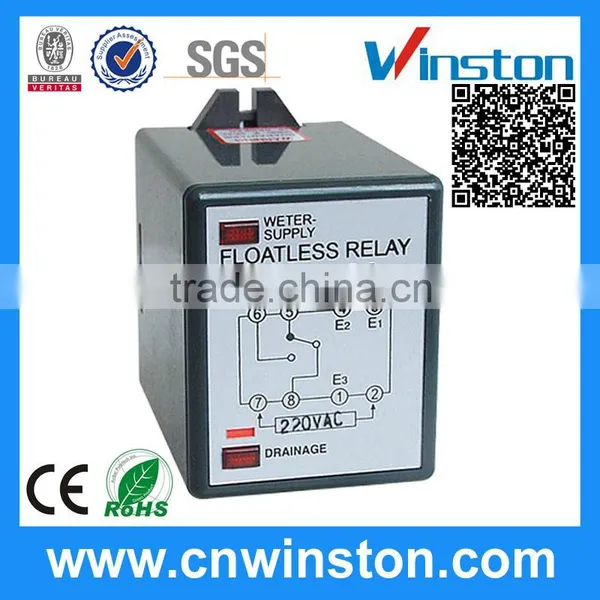

AFR-1 Electrical Digital Multi-function Liquid Level Control Floatless Relay with CE
Features
1.Socket type: PF083A
2.Rated voltage:AC 110V,220V,240V,50/60Hz
3.Indicate operation:two LED's use for two status
4.Contact rated: 5A 250VAC
5.Dielectric strength:1500VAC 50/60Hz, 1MINUTE
6.Consumed power:3.2VA
7.Weight:200g
Specifications
| CLASSIFICATION | FLOATLESS RELAY | |
| MODEL | AFR-1 | |
| DIMESIONS(mm) | 61H49W70D | |
| SOCKET TYPE | PF083A | |
|
SENSING MODE |
GENDRAL | AFR-1 |
| HIGH SENSING | AFR-1H | |
| LONG DISTANCE | AFR-1L | |
| LOW DENSITY | AFR-1D | |
|
TWOLINES |
AFR-1R | |
| RATED VOLTAGE | AC:110V,220V,240V,50/60HZ | |
| INDICATOR OPERATING | Two LED's use fro two status | |
| OPERATE VOLTAGE | 85110%of rated voltage | |
| SECND VOLTAGE | 8VAC (except highsensing 24VAC) | |
| OPERATE RESISTANCE | 4K MIN.(GENERAL) | |
| RELEASE RESISTANCE | 15K MIN.(GENERAL) | |
| RESPONSE TIM | OPERATE:80 MSEC MAX.RELEASE:160MSEC MAX. | |
| CONTACT RATING | 5A,250VAC(RESISTIVELOAD) | |
| LEGTH OF CABLE | 1KMMAX.(GENERAL) | |
| LIFE | MECHANICAL | 5106TIMES MIN |
| ELECTRICAL | 105 times min |
|
| INSULATION RESISTANCE | 100M (DC 500V)MIN | |
| DIELECTRIC STRENGTH | 1500VAC,50/60HZ,FOR 1MINUTE | |
| CONSUMED POWER | 3.2VA | |
| AMBIENT TEMPERATURE | -10+55 | |
| AMBIENT HUMIDITY | 4585%RH | |
| WEIGHT | 200g | |
Dimension
Packaging & Shipping
Certifications
FAQ
Q: How to order our product ?
A:1). Please tell us the model and quantity and other request you need.
2). We make the PI for you.
3). After you confirm the PI, we arrange the order for you after receiving your payment.
4). After the goods finished, we send the goods out to you and tell you the tracking number.
5). We will track your goods until you receive the goods.
Q: What's your warranty ?
A: Two years
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by Maoyt or send us by email, we will reply within 24hrs.
