ASY-2D Electronical Programmable Countdown Mechanical Digital Delay Time Relay With CE

ASY-2D Electronical Programmable Countdown Mechanical Digital Delay Time Relay With CE thumbnail-1
ASY-2D Electronical Programmable Countdown Mechanical Digital Delay Time Relay With CE thumbnail-2
ASY-2D Electronical Programmable Countdown Mechanical Digital Delay Time Relay With CE photo-1

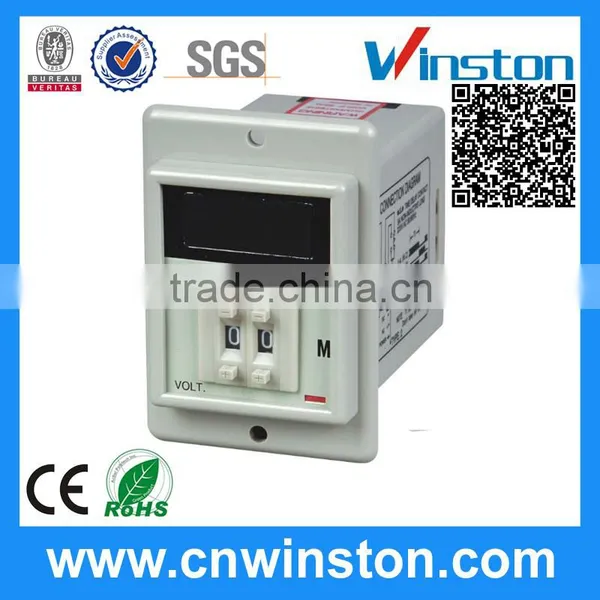

ASY-2D Electronical Programmable Countdown Mechanical Digital Delay Time Relay With CE photo-2
US$ 6.5 - 8.5 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Winston
Model Number:
ASY-2D
Contact Supplier Request Quote Chat Now
Yueqing Winston Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Winston
Model Number ASY-2D
Theory Time Relay
Usage Auto
Size Miniature
Protect Feature Sealed
Contact Load Low Power



characteristics



1) Types: ASY-2D, digital timer, 2 digital
2) Contact capacity: 5A, 250V AC
3) Coil voltage:
a) DC: 12, 24V
b) AC: 12, 24, 48, 110, 220, 240V
4) Coil power: 3VA
5) Time range:
a) ASY-2D: 9.9s, 99s, 9.9min, 99min, 9.9h, 99h
b) ASY-3D: 9.99s, 99.9s, 999s, 9.99min, 99.9in, 999min, 9.99h, 99.9h, 999h
6) Electrical life: 100,000 times
7) Mechanical life: 5,000,000 times
8) Operating temperature: -40 - +50°C
9) Repeat error: ±0.05%
10) Temperature error: ±0.05%
11) Voltage error: ±0.05%
12) Reset time: 0.3s

Technique parameter





Type

ASY-2D

ASY-3D

Dimensions

88HX58WX68D

Mounting

Surface (-N)



Socket

Flush(-Y)

US-08 P3G-08

Full timing range

SEC:9,9,99

MIN:9,9,99

HR:9,9,99

SEC:9,99,99,9,999

MIN:99,9,999

HR:99,9,999

Rated voltage

DC(V):12,24

AC(V):12,24,110,220,240  50/60Hz

Indicator operation

After contact transfer

O/P

Contact

Model

ASY-2D

ASY-3D

Time limit 1c



Time limit 2c



Instantaneous 1c

5A

Service life

Mechanical

5000000 times

Electrical

100000 times

Accuracy

Repeat error

±0.05% max

Setting error

0

Voltage error

±0.05 sec

Temperature error

±0.05 sec

Reset time

0.3 sec max

Consumed power

3VA

Ambient temperature

-10~+55

Ambient humidity

48-85% RH

Weight

230g

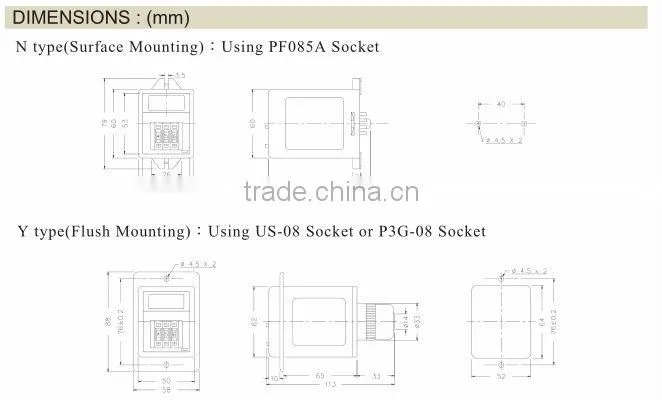

Overall dimensions

 ASY-2D Electronical Programmable Countdown Mechanical Digital Delay Time Relay with CE
