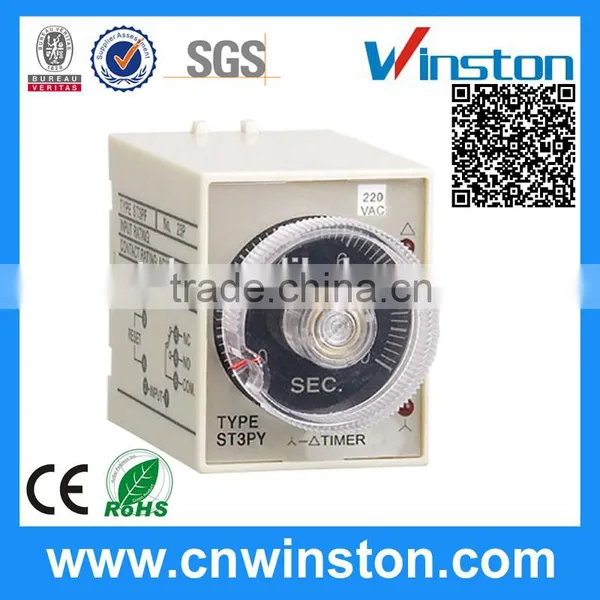

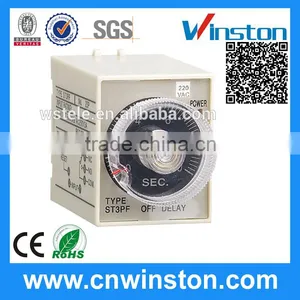

ST3P Series Multi-Range Electronic Adjustable Mechanical Time Relay with CE
Features
1, the air damping type time relay, also known as bellows type time relay, it is based on the air compression resistance to delay, its structure is simple, cheap, wide time delay range (0.4 ~ 180 s), but the delay precision is low.
2, electromagnetic relay time delay time is short (0.3 ~ 1.6 s), but its structure is simple, usually used in delay occasions and dc power.
3, the principle of dynamic time relay like clocks and watches, it is obtained by internal motor drive gear rotation and time delay. The relay delay of high precision, wide time delay range (0.4 ~ 72 h), but the structure is more complex, the price is very expensive.
4, the transistor type time relay, also known as electronic time relay, it is to use time delay circuit for time delay. This kind of relay with high precision, small volume.
Specifications
Type |
ST3P |
||
Dimensions |
50HX40WX57.5D |
||
Mounting |
Surface (-N) |
PF083A(E) |
|
Socket |
Flush(-Y) |
US-08 P3G-08 |
|
Full timing range |
A:0.05-0.5S/5S/30S/3MIN B:0.1-10S/60S/6MIN C:0.5-5S/50S/5MIN/30MIN D:1-10S/100S/100MIN/60MIN E:5-60S/10S/60MIN/6H F:0.25-2MIN/20MIN/2H/1H G:0.5-4MIN/40MIN/4H/24H |
||
Rated voltage |
AC(V):24-220 DC(V):24-110(50/60Hz) |
||
Indicator operation |
ON-UP operation |
||
|
O/P Contact |
Model |
ST3PA |
ST3PC |
Time limit 1c |
|
5A |
|
Time limit 2c |
5A |
|
|
Instantaneous 1c |
|
5A |
|
Service life |
Mechanical |
5X10000000 times |
|
Electrical |
100000 times |
||
Accuracy |
Repeat error |
±2% max |
|
Setting error |
±5% max |
||
Voltage error |
±5% max |
||
Temperature error |
±2% max |
||
Reset time |
0.5 sec max |
||
Consumed power |
2VA |
||
Ambient temperature |
-10~+55 |
||
Ambient humidity |
35-85% RH |
||
Weight |
100g |
||
Dimension
Packaging & Shipping
Certifications
FAQ
Q: How to order our product ?
A:1). Please tell us the model and quantity and other request you need.
2). We make the PI for you.
3). After you confirm the PI, we arrange the order for you after receiving your payment.
4). After the goods finished, we send the goods out to you and tell you the tracking number.
5). We will track your goods until you receive the goods.
Q: What's your warranty ?
A: Two years
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by Maoyt or send us by email, we will reply within 24hrs.
