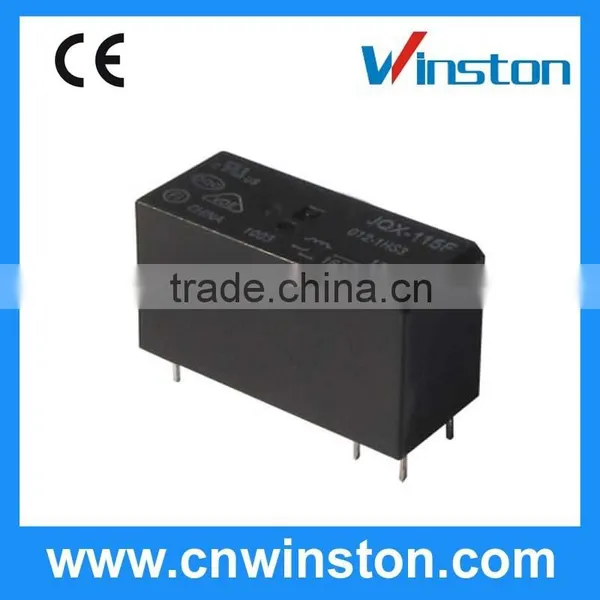

JQX-115F mini pcb relay pcb mounting relay
Technique parameter
Contact Specification | ||||
Contact form |
1Z, 1H, 1D 2Z, 2H, 2D |
|||
Contact resitance |
≤100mΩ(1A 6VDC) |
|||
Contact material |
AgCdO AgSnO2 |
|||
Contact capacity |
16A 250VA/30VDC 8A 250VAC/30VDC |
|||
Technical Specification | ||||
Insulation resistance |
≥1000 Mω(500VDC) |
|||
Dielectric strength |
Between coil and contacts≥5000VAC 1min |
|||
Between open contacts≥1000VAC 1min | ||||
Between contacts of different poless≥2500VAC 1min | ||||
Operate/Release time |
≤15ms/5ms |
|||
Terminal type |
PCB mounting |
|||
Coil Specification | ||||
Rated coil power |
0.4W |
|||
Coil Data | ||||
Nominal voltage |
Operate voltage |
Release voltage |
Coil resistance |
|
VDC |
VDC |
VDC |
Ω±10% |
|
5 |
3.75 |
0.5 |
55 |
|
6 |
4.5 |
0.6 |
68 |
|
12 |
9.0 |
1.2 |
270 |
|
24 |
18.0 |
2.4 |
1087 |
|
48 |
36.4 |
4.8 |
4347 |
|
60 |
48.0 |
6.0 |
7500 |
|
110 |
82.5 |
11.0 |
27170 |
|
Coil Data | ||||
Nominal voltage |
Operate voltage |
Release voltage |
Coil resistance |
|
VAC |
VAC |
VAC |
Ω±10% |
|
24 |
19.2 |
7.2 |
350 |
|
110 |
88.0 |
33.0 |
8100 |
|
230 |
184.0 |
69.0 |
32500 |
|
Dimension
Partner
Trade info
Trade Terms:FOB ,CIF ,CFR,EXW,DDP
Payment terms:T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions:30% deposit in advance,70% balance before shipping.
Delivery time:3-7working days after deposit,2-4 working days for inventory
Packing:Neutral carton,Wooden case for large size
Shipping:By sea,by air and by express delivery
Certifications
FAQ
Q: How to order our product ?
A:1). Please tell us the model and quantity and other request you need.
2). We make the PI for you.
3). After you confirm the PI, we arrange the order for you after receiving your payment.
4). After the goods finished, we send the goods out to you and tell you the tracking number.
5). We will track your goods until you receive the goods.
Q: What's your warranty ?
A: Two years
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by Maoyt or send us by email, we will reply within 24hrs.
