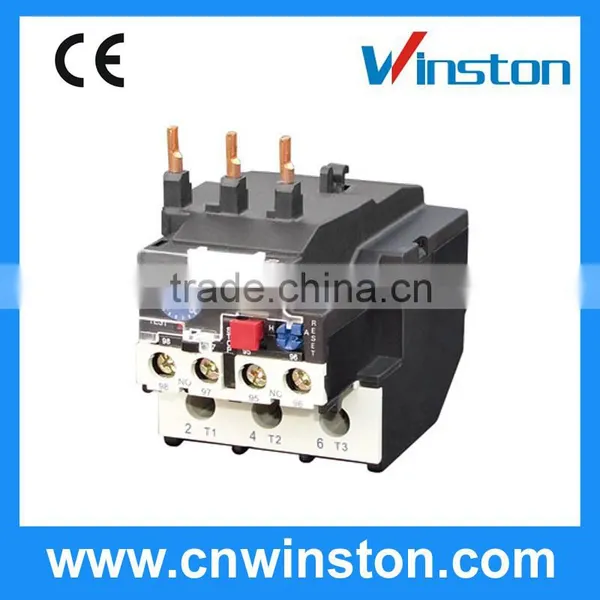

Help CenterLR2D23 Thermal Overload Relay Low Power
Related Products
-
JQX-14F Pcb Relay 10A16A 5A Silver Alloy 0.4W 240VAC/30VDC Pcb Mounting RelayUS$ 0.1 - 0.5MOQ: 1000 Pieces -
ZG3NC-340B Miniature Electric Input Voltage 3-32VDC Output Voltage 90-480VAC Solid State Relay Socket With CEUS$ 3.2 - 5.5MOQ: 10 Pieces
-
TN1-4840AA Miniature General Purpose Remote Electric Rail Solid State Relay Socket With CEUS$ 3.2 - 5.5MOQ: 10 Pieces
-
TN1-350D Miniature General Purpose Remote Electric Rail Solid State Relay Socket With CEUS$ 3.2 - 5.5MOQ: 10 Pieces
-
Rail Type Wire Connector PCB Electric Manufaturer Screw Clamp Terminal Block With CEUS$ 1 - 10MOQ: 10 Pieces
Application
This series of thermal overload relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V, rated current 0.1-93A for protecting the phase break when the electric motor is overload.
The relay has different mechanism and temperature compensation & can be pluged in DLC1-D series AC contactor. It is the most advanced thermal relay in the nineties in the world. The products comply with IEC 60947-5.
Characteristics
a. Fundamental parameter of the main circuit
(a). Rated insulation voltage 660V.
(b). Rated working current 25,36,93A separately.
(c). The regulator seal of rated setting current.
(d). Current of the Thermal component (see list 1)
b. Auxiliary Circuit
(a). There is one pair of N/O and N/C contact with electric insulation.
(b). Rated insulation Voltage 500V.
(c). Rated frequency 50-60Hz.
(d). Use group, rated working voltage, appoint thermal current and rated current.
Specifications
| Type | Rated working current | Thermal component | ||
| Rated current(A) |
Regular or scale of rated current(A) |
|||
| DLR2-D23 | 36 | DLR2-D 2353 | 32 | 23.0-32.0 |
| 2355 | 36 | 28.0-36.0 | ||
