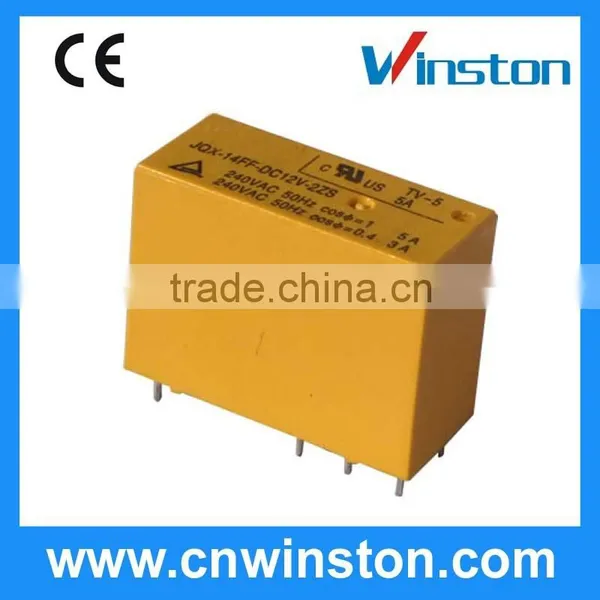

JQX-14F pcb relay 10A16A 5A Silver alloy 0.4W 240VAC/30VDC pcb mounting relay
Features
Height is only 20.5 mm
Contact with the coil voltage 5 kv
Multiple connection mode and the load current, standby all kinds of socket
Technique parameter
| characteristics | ||||||
| Contact Form | 1A 1C 2A 2C | |||||
| Contact Resistance | 100mΩ(1A 6VDC) | |||||
| Contact Rating | 16A/5A 240VAC/30VDC | |||||
| Contact material | Silver Alloy | |||||
| Max.Switching Current | 16A | |||||
| Max.Switching voltage | 240VAC/30VDC | |||||
| Electrical life | 100000 ops | |||||
| Mechanical Life | 10000000 ops | |||||
| Initial insulation resistance | 1000MΩ | |||||
| Dielectric strength | 5000VAC/1000VAC | |||||
| Operate Time | ≤15ms | |||||
| Release Time | ≤5ms | |||||
| Ambient temperature | -40°C~+85°C | |||||
| Termination | PCB | |||||
| Construction | Sealed | |||||
| Coil Power | 0.4W | |||||
| Unit Weight | 13g | |||||
Dimension

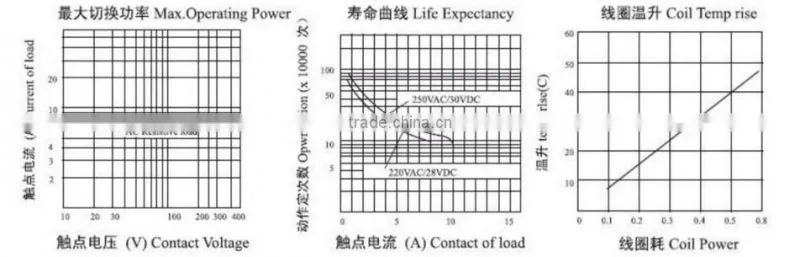

Performance graph
Partner
Trade info
Trade Terms:FOB ,CIF ,CFR,EXW,DDP
Payment terms:T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions:30% deposit in advance,70% balance before shipping.
Delivery time:3-7working days after deposit,2-4 working days for inventory
Packing:Neutral carton,Wooden case for large size
Shipping:By sea,by air and by express delivery
Certifications
FAQ
Q: How to order our product ?
A:1). Please tell us the model and quantity and other request you need.
2). We make the PI for you.
3). After you confirm the PI, we arrange the order for you after receiving your payment.
4). After the goods finished, we send the goods out to you and tell you the tracking number.
5). We will track your goods until you receive the goods.
Q: What's your warranty ?
A: Two years
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by Maoyt or send us by email, we will reply within 24hrs.
