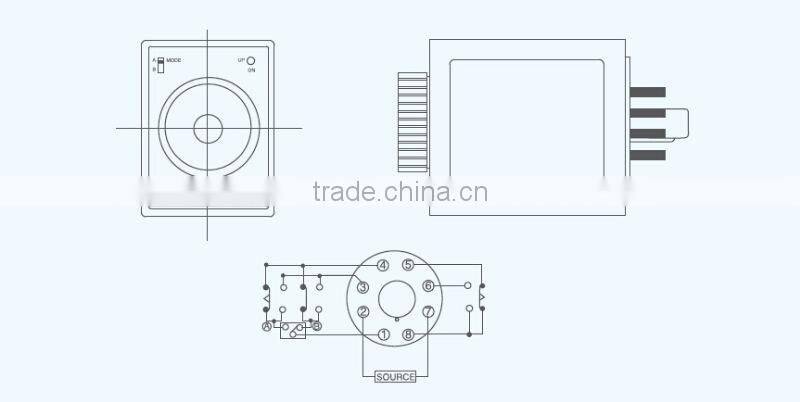

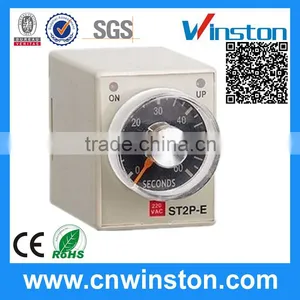

ST2P Mechanical Countdown Electronic Programmable Time Delay Realy with CE
1.Voltage:AC12-380V 50/60Hz DC12-24V
2.Operation:On-delay with inst. contact
3.Matched socket:PF083A(E)
4.Led display
Type |
ST2P |
|
Dimensions |
50HX40WX57.5D |
|
Mounting |
Surface (-N) |
PF083A(E) |
Socket |
Flush(-Y) |
US-08 P3G-08 |
Full timing range |
Sec:1,3,6,10,12,30,60 Min:3,6,10,12,30,60 HR:3,6,10,12,30 |
|
Rated voltage |
AC(V):12,24,110,220,50/60Hz DC(V):12-24(50/60Hz) |
|
Indicator operation |
ON-UP operation |
|
|
O/P Contact |
Model |
ST2P-E |
Time limit 1c |
||
Time limit 2c |
5A |
|
Instantaneous 1c |
||
Service life |
Mechanical |
5X10000000 times |
Electrical |
100000 times |
|
Accuracy |
Repeat error |
±2% max |
Setting error |
±5% max |
|
Voltage error |
±5% max |
|
Temperature error |
±2% max |
|
Reset time |
0.5 sec max |
|
Consumed power |
2VA |
|
Ambient temperature |
-10~+55 |
|
Ambient humidity |
35-85% RH |
|
Weight |
100g |
|
Q: How to order our product ?
A:1). Please tell us the model and quantity and other request you need.
2). We make the PI for you.
3). After you confirm the PI, we arrange the order for you after receiving your payment.
4). After the goods finished, we send the goods out to you and tell you the tracking number.
5). We will track your goods until you receive the goods.
Q: What's your warranty ?
A: Two years
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by Maoyt or send us by email, we will reply within 24hrs.
Yueqing Winston Electric Co., Ltd. is not only an exporting company, but also a professional manufacturer in China. We have our own production base. The products we professionally deal with are switching power supplies, sensors, relays, voltage stabilizers, AC contactors, circuit breakers, distribution boxes, industrial plugs & sockets and others. Since we are a manufacturer & exporter, we are sure that we can best support our customers with high quality products and the most competitive prices. Our company is located in Wenzhou - the Electric Capital of China. We specialize in developing, manufacturing and distributing low voltage & high voltage electrical products. We are an ISO9001:2000 certified company.
