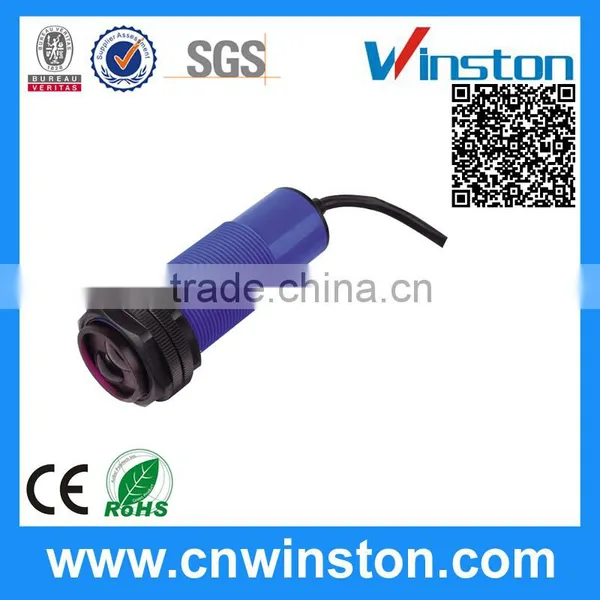

Help CenterG30 Series 10-30VDC/90-250VAC NPN/PNP/2 Wires With NO/NC/NO+NC Output Infrared Photoelectric Sensor , Photoelectric Switches
Related Products
-
G33 Series 10-30VDC/90-250VAC NPN/PNP/2 Wires With NO/NC/NO+NC Output Infrared Photoelectric Sensor , Photoelectric SwitchesUS$ 9.9 - 17.6MOQ: 10 Pieces -
G35 Series 10-30VDC/90-250VAC NPN/PNP/2 Wires With NO/NC/NO+NC Output Infrared Photoelectric Sensor , Photoelectric SwitchesUS$ 30.9 - 37.4MOQ: 10 Pieces
-
G36 Series 10-30VDC/90-250VAC NPN/PNP/2 Wires With NO/NC/NO+NC Output Infrared Capacitance Photoelectric Sensor SwitchesUS$ 9.9 - 17.6MOQ: 10 Pieces
-
G40 Series 10-30VDC/90-250VAC NPN/PNP/2 Wires With NO/NC/NO+NC Output Infrared Capacitance Photoelectric Sensor SwitchesUS$ 7.7 - 14.3MOQ: 10 Pieces
-
G44 Series 10-30VDC/90-250VAC NPN/PNP/2 Wires With NO/NC/NO+NC Output Infrared Capacitance Photoelectric Sensor SwitchesUS$ 9.9 - 18.7MOQ: 10 Pieces
Principle of photoelectric switch
The working principle of the photoelectric switch is that when the beam emitted by the emitter is blocked or partly reflected by the object, the beam receiver whereby makes a judgment and reacts.
Structural category
Throuht-beam type
Through-beam bype photoelectric switch is designed that via the light beam between opposite-mounted transmitter and receiver, the object passing through these two devices will interrupt the light beam and start the receiver.
Diffuse type
Diffuse reflection type photoelectric switch integrates the transmitter and the reciver. Light reflected by the photoelectric switch is reflected back to the receiver by the detected object.
Retroreflective type
Retroreflective type photoelectric switch also integrates the transmitter and the receiver, Its difference from other models is that reflecotr is used to relfect light to the photoelectric switch. Though the object between the photoelectric switch and reflector can reflect the light, it is much less efficient than the reflector so as to cut down reflected light.
Convergence reflection type (condensation type)
The working principle of convergence reflection type photoswitch is similar to that of direct reflection type one, while its projector and light receiver focus on boject distance, only when the object presents to the focus can the photoswitch actuate.
Feature
2 . high precision of repeated location
3 . Diversified exterior structures
4 . Good performance of anti-interference
5 . Many output forms
6 . High on-off frequency
7 . Dust proof,vibration proof,water proof and oil proof.
8 . With short-circuit protection and inverted connecting protection.
9 . Long service life
| Diffuse type | Detection distance | 20-100cm | ||
| 10-30VDC | NPN | NO | G30-3A70NA | |
| NC | G30-3A70NB | |||
| NO+NC | G30-3A70NC | |||
| PNP | NO | G30-3A70PA | ||
| 90-250VAC | NC | G30-3A70PB | ||
| NO+NC | G30-3A70PC | |||
| SCR Contro Hable silicon | NO | G30-2A70LA | ||
| NC | G30-2A70LB | |||
| Relay output | G30-2A70JC | |||
| Retroreflective type | Detection distance | 3m | ||
| 10-30VDC | NPN | NO | G30-3B3NA | |
| NC | G30-3B3NB | |||
| NO+NC | G30-3B3NC | |||
| PNP | NO | G30-3B3PA | ||
| 90-250VAC | NC | G30-3B3PB | ||
| NO+NC | G30-3B3PC | |||
| SCR Contro Hable silicon | NO | G30-2B3LA | ||
| NC | G30-2B3LB | |||
| Relay output | G30-2B3JC | |||
| Through beam | Detection distance | 10m | ||
| 10-30VDC | NPN | NO | G30-3C101NA | |
| NC | G30-3C101NB | |||
| NO+NC | G30-3C101NC | |||
| PNP | NO | G30-3C101PA | ||
| 90-250VAC | NC | G30-3C101PB | ||
| NO+NC | G30-3C101PC | |||
| SCR Contro Hable silicon | NO | G30-2C101LA | ||
| NC | G30-2C101LB | |||
| Relay output | G30-2C101JC | |||
| DC/SCR Control output | DC:200mA | |||
| DC/AC Consumption current | DC<15mA,AC<10mA | |||
| DC/AC Response time | AC/Dc<2ms | |||
| Detected object | transparent or opaque body | |||
| Intensity of illumination of working environment | Sunlight under 1000LX incandescent lamp under 3000LX |
|||
Application
What is the delivery way?
(1)If ship by sea and Air,you can get Bill of Loading,CO,Commerical invoice,Packing list from us after ship.
(2)If ship by express company,you will get a Tracking No. from us after ship.
What the Certifications do we have obtained?
What is the payment?
Other product
What's the Refund & Replacement?
1. 90-day-warranty.
If there is any quality problem (defective / don't work) of the goods, it could be returned within the warranty days. (Please notify us as soon as possible)
2. Any items must be returned in their original condition to qualify for a refund or replacement. (Any used items cannot be refunded or replaced).
Company view
What is the MOQ of our power supply?
MOQ: We support sample order.(1~5PCS)
More than 500PCS,can pring Logo on the products.
What is the guarantee Period for our power supply?
1-2Year after sold
How to Visit and contact us?
Firstly, you are highly welcomed to visit our factory, we can provide you an invitation letter from Chinese Embassy for you if needed. Besides, we are more pleased to help you to book a flight or hotel to save your time.
