Home > Electrical & Electronics > Sensor > Pressure Sensor > G33 Series 10-30VDC/90-250VAC NPN/PNP/2 Wires With NO/NC/NO+NC Output Infrared Photoelectric Sensor , Photoelectric Switches

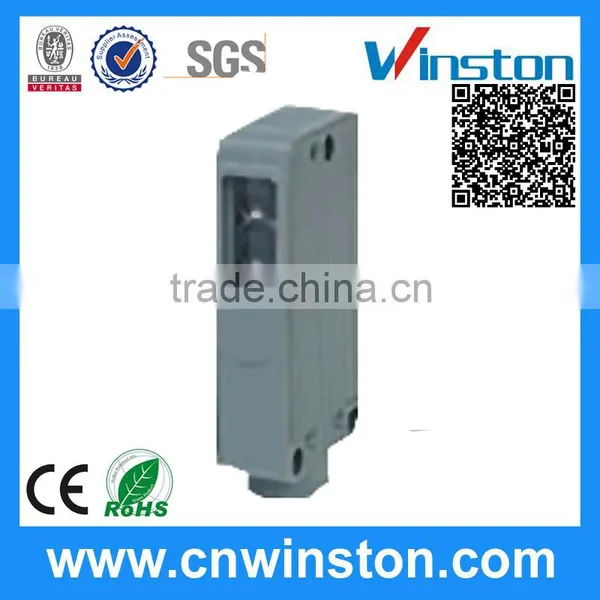

G33 Series 10-30VDC/90-250VAC NPN/PNP/2 Wires With NO/NC/NO+NC Output Infrared Photoelectric Sensor , Photoelectric Switches

Name: G33 Series 10-30VDC/90-250VAC NPN/PNP/2 Wires With NO/NC/NO+NC Output Infrared Photoelectric Sensor , Photoelectric Switches
Brand: Winston, Winston
SKU: 110976385
Availability: InStock

G33 Series 10-30VDC/90-250VAC NPN/PNP/2 Wires With NO/NC/NO+NC Output Infrared Photoelectric Sensor , Photoelectric Switches thumbnail-1

G33 Series 10-30VDC/90-250VAC NPN/PNP/2 Wires With NO/NC/NO+NC Output Infrared Photoelectric Sensor , Photoelectric Switches photo-1

US$ 9.9 - 17.6 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Winston, Winston

Model Number:

G33

Contact Supplier Request Quote Chat Now

Yueqing Winston Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Winston, Winston

Model Number G33

Usage Other, photoelectric switch, Consumption Sensor

Theory Other, Photoelectric switch, photoelectric

Output Other, Analog Sensor, Switching Transducer

Main features:

1 . Compact volume
2 . high precision of repeated location
3 . Diversified exterior structures
4 . Good performance of anti-interference
5 . Many output forms
6 . High on-off frequency
7 . Dust proof,vibration proof,water proof and oil proof.
8 . With short-circuit protection and inverted connecting protection.
9 . Long service life

Overall dimensions

Diffuse type	Detection distance			50cm
	10-30VDC	NPN	NO	G33-3A10NA
			NC	G33-3A10NB
			NO+NC	G33-3A10NC
		PNP	NO	G33-3A10PA
	90-250VAC		NC	G33-3A10PB
			NO+NC	G33-3A10PC
		SCR Contro Hable silicon	NO
			NC
		Relay output
Retroreflective type	Detection distance			1m
	10-30VDC	NPN	NO	G33-3B1NA
			NC	G33-3B1NB
			NO+NC	G33-3B1NC
		PNP	NO	G33-3B1PA
	90-250VAC		NC	G33-3B1PB
			NO+NC	G33-3B1PC
		SCR Contro Hable silicon	NO
			NC
Through beam	Detection distance			3m
	10-30VDC	NPN	NO	G33-3C3NA
			NC	G33-3C3NB
			NO+NC	G33-3C3NC
		PNP	NO	G33-3C3PA
	90-250VAC		NC	G33-3C3PB
			NO+NC	G33-3C3PC
		SCR Contro Hable silicon	NO
			NC
DC/SCR Control output				DC:200mA
DC/AC Consumption current				DC<15mA,AC<10mA
DC/AC Response time				AC/Dc<2ms
Directional angle				3 . -10 .
Detected object				transparent or opaque body
Intensity of illumination of working environment				Sunlight under 1000LX incandescent lamp under 3000LX

Control diagram

Packaging & Shipping

What is the packing for our product?

What is the delivery way?

(1)If ship by sea and Air,you can get Bill of Loading,CO,Commerical invoice,Packing list from us after ship.

(2)If ship by express company,you will get a Tracking No. from us after ship.

Our Services

What the Certifications do we have obtained?

What is the payment?

What's the Refund & Replacement?

1. 90-day-warranty.

If there is any quality problem (defective / don't work) of the goods, it could be returned within the warranty days. (Please notify us as soon as possible)

2. Any items must be returned in their original condition to qualify for a refund or replacement. (Any used items cannot be refunded or replaced).

Company view

Our team

FAQ

What is the MOQ of our relay?

MOQ: We support sample order.(1~5PCS)

More than 500PCS,can pring Logo on the products.

How to Visit and contact us?

Firstly, you are highly welcomed to visit our factory, we can provide you an invitation letter from Chinese Embassy for you if needed.

Besides, we are more pleased to help you to book a flight or hotel to save your time.

Send your Inquiry Details in the Below, Click "Send" Now!
