Home > Electrical & Electronics > Sensor > Pressure Sensor > G36 Series 10-30VDC/90-250VAC NPN/PNP/2 Wires With NO/NC/NO+NC Output Infrared Capacitance Photoelectric Sensor Switches

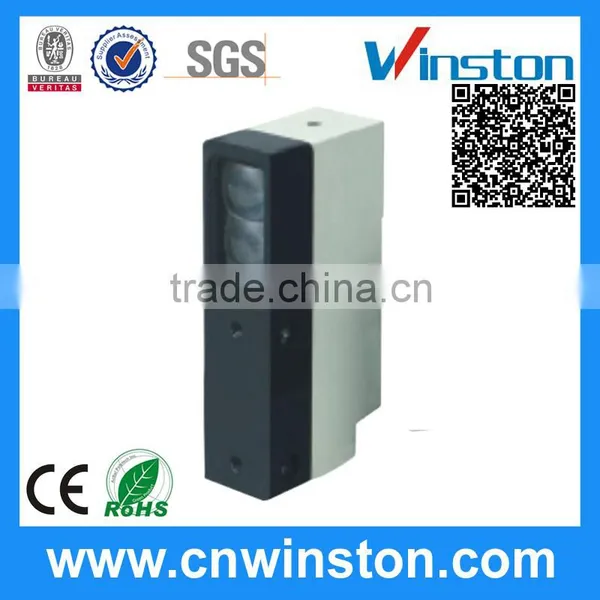

G36 Series 10-30VDC/90-250VAC NPN/PNP/2 Wires With NO/NC/NO+NC Output Infrared Capacitance Photoelectric Sensor Switches

Name: G36 Series 10-30VDC/90-250VAC NPN/PNP/2 Wires With NO/NC/NO+NC Output Infrared Capacitance Photoelectric Sensor Switches
Brand: Winston, Winston
SKU: 110976409
Availability: InStock

G36 Series 10-30VDC/90-250VAC NPN/PNP/2 Wires With NO/NC/NO+NC Output Infrared Capacitance Photoelectric Sensor Switches thumbnail-1

G36 Series 10-30VDC/90-250VAC NPN/PNP/2 Wires With NO/NC/NO+NC Output Infrared Capacitance Photoelectric Sensor Switches photo-1

US$ 9.9 - 17.6 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Winston, Winston

Model Number:

G36

Contact Supplier Request Quote Chat Now

Yueqing Winston Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Winston, Winston

Model Number G36

Usage Other, photoelectric switch, Consumption Sensor

Theory Other, Photoelectric switch, photoelectric

Output Other, Analog Sensor, Switching Transducer

Main features:

1 . Compact volume
2 . high precision of repeated location
3 . Diversified exterior structures
4 . Good performance of anti-interference
5 . Many output forms
6 . High on-off frequency
7 . Dust proof,vibration proof,water proof and oil proof.
8 . With short-circuit protection and inverted connecting protection.
9 . Long service life

Overall dimensions

iffuse type	Detection distance			20cm
	10-30VDC	NPN	NO	G36-3A20NA
			NC	G36-3A20NB
			NO+NC	G36-3A20NC
		PNP	NO	G36-3A20PA
	90-250VAC		NC	G36-3A20PB
			NO+NC	G36-3A20PC
		SCR Contro Hable silicon	NO
			NC
		Relay output
Retroreflective type	Detection distance			2m
	10-30VDC	NPN	NO	G36-3B2NA
			NC	G36-3B2NB
			NO+NC	G36-3B2NC
		PNP	NO	G36-3B2PA
	90-250VAC		NC	G36-3B2PB
			NO+NC	G36-3B2PC
		SCR Contro Hable silicon	NO
			NC
		Relay output
Through beam	Detection distance			5m
	10-30VDC	NPN	NO	G36-3C5NA
			NC	G36-3C5NB
			NO+NC	G36-3C5NC
		PNP	NO	G36-3C5PA
	90-250VAC		NC	G36-3C5PB
			NO+NC	G36-3C5PC
		SCR Contro Hable silicon	NO
			NC
		Relay output
DC/SCR Control output				DC:200mA
DC/AC Consumption current				DC<15mA,AC<10mA
DC/AC Response time				AC/Dc<2ms
Directional angle				3 . -10 .
Detected object				transparent or opaque body
Working environment temperature				25~+55ºC
Intensity of illumination of working environment				Sunlight under 1000LX incandescent lamp under 3000LX
Shell material				Metal
Protection grade				IP54

Control diagram

Packaging & Shipping

What is the delivery way?

(1)If ship by sea and Air,you can get Bill of Loading,CO,Commerical invoice,Packing list from us after ship.

(2)If ship by express company,you will get a Tracking No. from us after ship.

Our Services

What the Certifications do we have obtained?

What is the payment?

What's the Refund & Replacement?

1. 90-day-warranty.

If there is any quality problem (defective / don't work) of the goods, it could be returned within the warranty days. (Please notify us as soon as possible)

2. Any items must be returned in their original condition to qualify for a refund or replacement. (Any used items cannot be refunded or replaced).

Company view

What is the MOQ of our power supply?

MOQ: We support sample order.(1~5PCS)

More than 500PCS,can pring Logo on the products.

What is the guarantee Period for our power supply?

1-2Year after sold

How to Visit and contact us?

Firstly, you are highly welcomed to visit our factory, we can provide you an invitation letter from Chinese Embassy for you if needed. Besides, we are more pleased to help you to book a flight or hotel to save your time.
