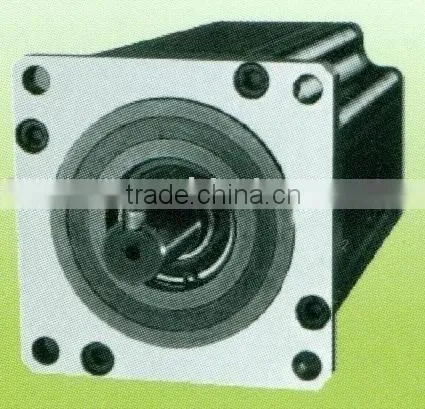

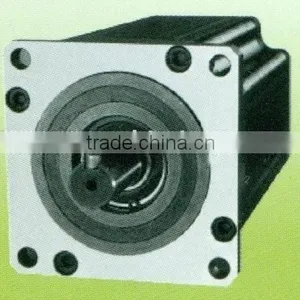

1.2 Three-phase Hybrid Stepper Motor (DM313xx)
US$ 147 - 255
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
Leetro
Model Number:
DM313xx
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1.2 Three-phase Hybrid Stepper Motor (DM39xxE)US$ 50 - 66MOQ: 1 Piece -
DM36x, 3-phase Hybrid Stepper MotorUS$ 15 - 28MOQ: 1 Piece
-
Cost Effective and Reliable DM86xxE, 2-phase Hybrid Stepper/stepping MotorUS$ 70 - 80MOQ: 1 Piece
-
Cost Effetive and Reliable DM60xxE, 2-phase Hybrid Stepper MotorUS$ 40 - 50MOQ: 1 Piece
-
2-phase Hybrid Stepper/stepping Motor (DM56xxE)US$ 22 - 32MOQ: 1 Piece
Place of Origin
Sichuan, China
Brand Name
Leetro
Model Number
DM313xx
Phase
3
Type
Hybrid
Certification
ISO
Step Angle(degrees)
1.2
Holding Torque
20.35 Nm
Current / Phase
4 A
Item |
Specifications |
Step Angle |
1.2° |
Step Angle Accuracy |
±5% (full step, no load) |
Resistance Accuracy |
±10% |
Inductance Accuracy |
±20% |
Temperature Rise |
80C Max. (rated current, 2 phase on) |
Ambient Temperature |
-20~+50C. |
Insulation Resistance |
100MΩMin., 500VDC |
Dielectric Strength |
500VAC for one minute |
Shaft Radial Play |
0.025mm Max. (450 g-load) |
Shaft Axial Play |
0.1~0.3mm Max. (450 g-load) |
Max. radial force |
220N (20mm from the flange) |
Max. axial force |
60N |
| Model | Rated | Current | Holding | Rotor | Weight | Length | Key Value | Recommended Driver | |
| Voltage | /Phase | Torque | Inertia | ||||||
| (V) | (A) | (Nm) | (gcm2) | (kg) | (mm) | (mm) | |||
| DM31318 | 120~310 | 4.0 | 20.0 | 26700 | 14.1 | 183 | 8x30 | DMDT68A | |
| DM31322 | 120~310 | 4.0 | 28.0 | 33970 | 17.2 | 215 | 8x30 | ||
| DM31325 | 120~310 | 4.0 | 35.0 | 41240 | 19.8 | 247 | 8x30 | ||
Packaging & Shipping
DHL, TNT, FedEx air express
Our Services
12-month product warranty
