Home > Electrical & Electronics > Electric Motor > Stepper Motor > 1.2 Three-phase Hybrid Stepper Motor (DM39xxE)

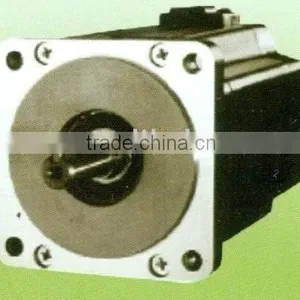

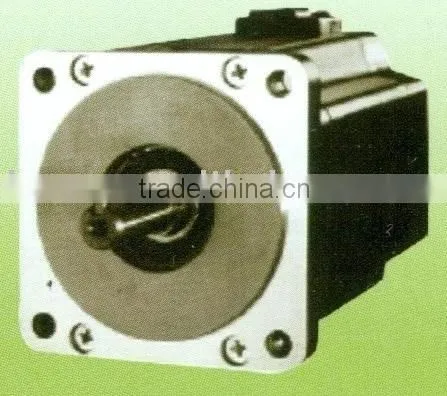

1.2 Three-phase Hybrid Stepper Motor (DM39xxE)
US$ 50 - 66
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
Leetro
Model Number:
DM39xxE
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DM36x, 3-phase Hybrid Stepper MotorUS$ 15 - 28MOQ: 1 Piece -
Cost Effective and Reliable DM86xxE, 2-phase Hybrid Stepper/stepping MotorUS$ 70 - 80MOQ: 1 Piece
-
Cost Effetive and Reliable DM60xxE, 2-phase Hybrid Stepper MotorUS$ 40 - 50MOQ: 1 Piece
-
2-phase Hybrid Stepper/stepping Motor (DM56xxE)US$ 22 - 32MOQ: 1 Piece
-
2-phase Hybrid Stepper/stepping Motor (DM42xxE)US$ 14 - 30MOQ: 1 Piece
Place of Origin
Sichuan, China
Brand Name
Leetro
Model Number
DM39xxE
Phase
3
Type
Hybrid
Step Angle(degrees)
1.2
Holding Torque
2.0-6.0 Nm
Current / Phase
1.75-5.80 A
Item |
Specifications |
Step Angle |
1.2° |
Step Angle Accuracy |
±5% (full step, no load) |
Resistance Accuracy |
±10% |
Inductance Accuracy |
±20% |
Temperature Rise |
80C Max. (rated current, 2 phase on) |
Ambient Temperature |
-20~+50C |
Insulation Resistance |
100MΩMin., 500VDC. |
Dielectric Strength |
500VAC for one minute |
Shaft Radial Play |
0.02Max. (450 g-load) |
Shaft Axial Play |
0.08Max. (450 g-load) |
Max. radial force |
220N (20mm from the flange) |
Max. axial force |
60N |
| Model | Rated | Current | Holding | Rotor | Weight | Length | Axial Diameter | Key Value | Recommended Drivers | |
| Voltage | /Phase | Torque | Inertia | |||||||
| (V) | (A) | (Nm) | (gcm2) | (kg) | (mm) | (mm) | (mm) | |||
| DM397H | 325 | 1.75 | 2.0 | 1320 | 2.0 | 69 | 12 | 4x20 | DMDT68A | |
| DM397L | 40 | 5.80 | 2.0 | 1320 | 2.0 | 69 | 12 | 4x20 | DMDT506 | |
| DM3910H | 325 | 2.00 | 4.0 | 2400 | 3.0 | 97 | 12 | 4x20 | DMDT68A | |
| DM3910L | 40 | 5.80 | 4.0 | 2400 | 3.0 | 97 | 12 | 4x20 | DMDT506 | |
| DM3913H | 325 | 3.00 | 6.0 | 3480 | 4.0 | 125 | 14 | 4x20 | DMDT68A | |
| DM3913L | 40 | 5.80 | 6.0 | 3480 | 4.0 | 125 | 14 | 4x20 | DMDT506 | |
Packaging & Shipping
TNT, DHL, FedEx air express
sea shipping available under request
Our Services
12-month product warranty
