Home > Electrical & Electronics > Electric Motor > Stepper Motor > Cost Effective and Reliable DM86xxE, 2-phase Hybrid Stepper/stepping Motor

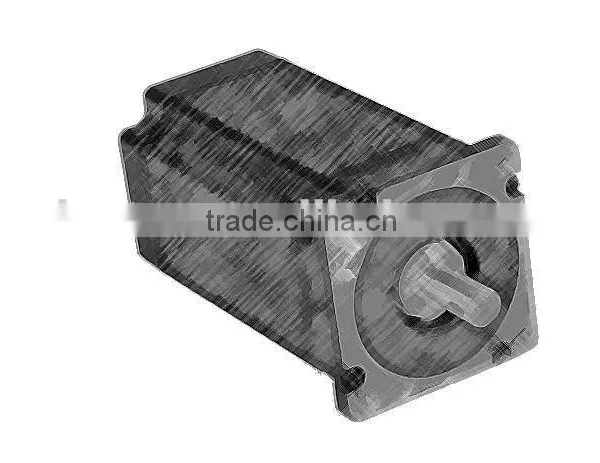

Cost Effective and Reliable DM86xxE, 2-phase Hybrid Stepper/stepping Motor
US$ 70 - 80
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
Leetro
Model Number:
DM86xxE
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cost Effetive and Reliable DM60xxE, 2-phase Hybrid Stepper MotorUS$ 40 - 50MOQ: 1 Piece -
2-phase Hybrid Stepper/stepping Motor (DM56xxE)US$ 22 - 32MOQ: 1 Piece
-
2-phase Hybrid Stepper/stepping Motor (DM42xxE)US$ 14 - 30MOQ: 1 Piece
-
2-phase Hybrid Stepper/stepping Motor (DM39xxE)US$ 12 - 19MOQ: 1 Piece
-
2-phase Hybrid Stepper/stepping Motor (DM35xxE)US$ 12 - 22MOQ: 1 Piece
Place of Origin
Sichuan, China
Brand Name
Leetro
Model Number
DM86xxE
Phase
2
Type
Hybrid
Step Angle(degrees)
1.8
Holding Torque
3.4-8.7 Nm
Current / Phase
1.4-4.24 A
Item |
Specifications |
Step Angle |
1.8° |
Step Angle Accuracy |
±5% (full step, no load) |
Resistance Accuracy |
±10% |
Inductance Accuracy |
±20% |
Temperature Rise |
80CMax. (rated current, 2 phase on) |
Ambient Temperature |
-20~+50C |
Insulation Resistance |
100MΩMin., 500VDC. |
Dielectric Strength |
500VAC for one minute |
Shaft Radial Play |
0.02Max. (450 g-load) |
Shaft Axial Play |
0.08Max. (450 g-load) |
Max. radial force |
220N (20mm from the flange) |
Max. axial force |
60N |
| Model | Parallel /Series | Current | Resistance | Inductance | Holding | Rotor | Weight | Length |
| /Phase | /Phase | /Phase | Torque | Inertia | (kg) | (mm) | ||
| (A) | (Ω) | (mH) | (Nm) | (g×cm2) | ||||
| DM8665E | P | 2.8 | 0.7 | 1.95 | 3.40 | 1000 | 1.7 | 65 |
| S | 1.4 | 2.8 | 7.8 | |||||
| DM8680E | P | 4.24 | 0.375 | 1.7 | 4.6 | 1400 | 2.3 | 80 |
| S | 2.12 | 1.5 | 6.8 | |||||
| DM86118E | P | 4.2 | 0.45 | 3 | 8.70 | 2700 | 3.8 | 118 |
| S | 2.1 | 1.8 | 12 |
| Model | Leetro Drivers | ||
| DM8665E |
DMD605, DMD808A |
||
| DM8680E | |||
| DM86118E | |||
Packaging & Shipping
DHL, TNT, FedEx air express
Sea shipping available under request
Our Services
12-month product warranty
