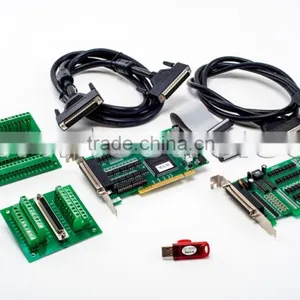

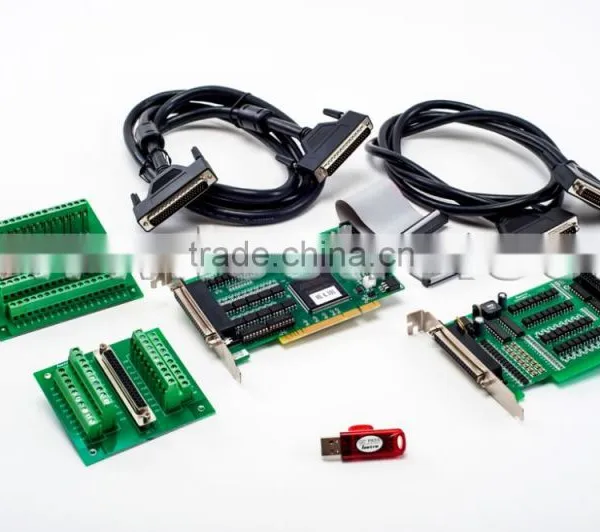

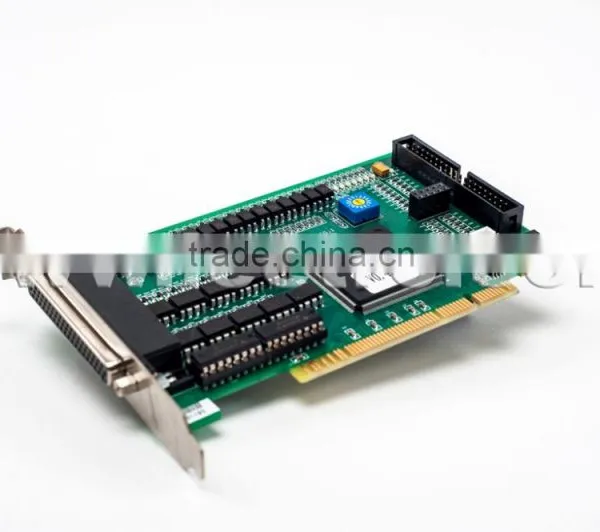

Channel Letter Bending machine motion controller

MPC08B (V04101) is designed with the open-loop motion control for the auto channel letter bending machine only. Based on DSP and FPGA technology, the advanced velocity look-ahead and trajectory blending algorithm ensure the velocity invariableness and transition smoothness between any two-trajectory segments during the high speed X-Y continuous trajectory motion. And therefore the perfect smoothness and precision of the machining can be easily achieved.

Applications

Over 6-year experience in auto channel letter bending machine exclusively, open-loop motion control system

Hardware Features

l      4-axis per card

l      4 channel encoder input

l      Encoder input counter: 4-axis, 32-bit, ±2147483647, A/B/Z Phase (2Mpps)

l      General digital input: DC24V/DC5V, Opto-coupled 16

l      General digital output:     DC24V/DC5V, Opto-coupled 16

l      Dedicated input in each axis: Limit+, Limit-, ORG, Dec, Alarm (shared)

l      4M max. pulse output freq.

l      Each Axis: Trapezoidal Acc/Dec

l      Pul/Dir or CW/CCW

l      Each axis: 32-bit, ±2147483647

l      Speed variable changes while moving

l      Both servo and stepper motor supported

l      Two feeding modes, seven notching modes, six bending modes

l      Various fonts

l      Workmanship database

l      Graphic interference reminding in bending mode

l      Support DXF, PLT and AI (under V7.0)

l      One PLT file for soleplate and work piece ensures precision

l      Zoom-out for outer-line, zoom-in for inner-line; tooling radius compensation

l      The joint-add and delete, any point to start

l      Required system: Windows 7 (32-bit) and XP

l      User-defined interface language, company info and boot image

Software Environment

Windows XP/7 (32-bit)

Bundled with application software, CBS4

Working Environment

Temperature: 0-60℃

Humidity: 5-90%, non condensing

Power

PCI, 3.3V

 TNT, DHL and FedEx are available for selection for shipping. Sea shipping is available under request

 12-month product warranty. Remote technical support by on-line. Engineer on-site is available under request and a certain condition
