DryConcrete Shotcrete Machine

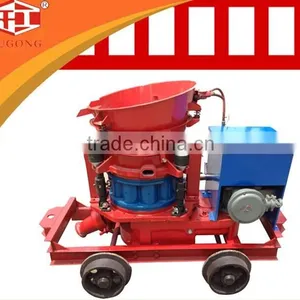

DryConcrete Shotcrete Machine thumbnail-1

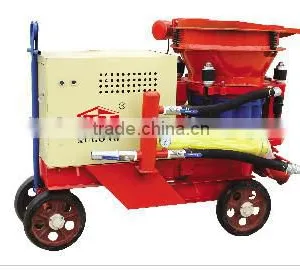

DryConcrete Shotcrete Machine thumbnail-2
DryConcrete Shotcrete Machine photo-1

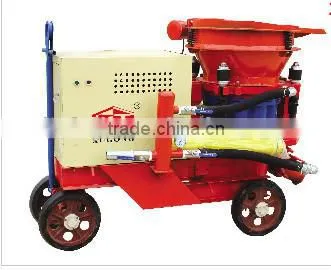

DryConcrete Shotcrete Machine photo-2
US$ 500 - 3,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Max. Conveying Distance:
200m
Max Aggregate Size:
20mm
Contact Supplier Request Quote Chat Now
Henan Baorun Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/QINGDAO/NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Max. Conveying Distance 200m
Max Aggregate Size 20mm
Hose Inner Diameter 50 mm
Air Consumption 7-8m³/min
Place of Origin Henan, China
Brand Name XUGONG
Model Number PZ-5 Electric Motor
Voltage 380V or 660V
Power(W) 5.5KW(Explosion-proof motor)
Dimension(L*W*H) 1520x820x1280mm
Weight 600kgs
Warranty 1year
After-sales Service Provided No overseas service provided

Specifications

Nonexplosive Throwing Jet;
- Good Quality;
- Competitive Costs Control;



PZ-5B Concrete Nonexplosive Throwing Jet







This is a kind of Dry type Shotcrete Spray Machines for Concrete, it has many obvious advantages such as simple structure, easy to operate and convenient after sales service and very long service life etc.



Pictures Show:

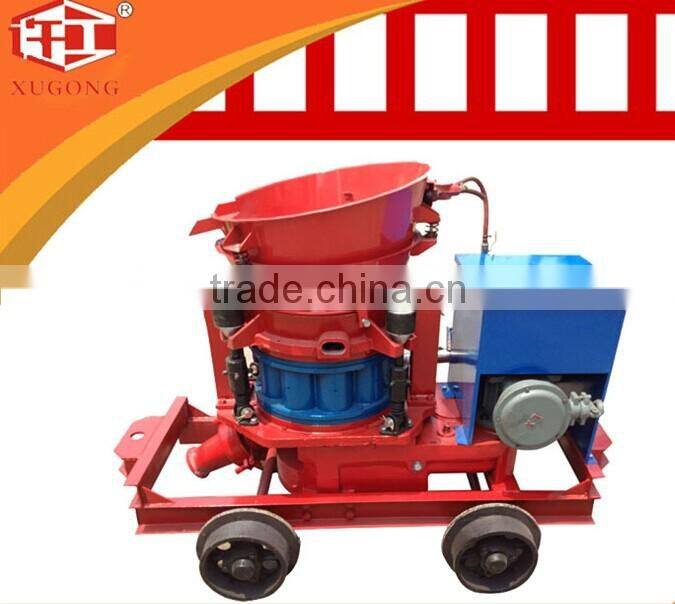

DryConcrete shotcrete machine







Technical Parameter of Shotcrete Machine:









Model

PZ-5B

Output

5-5.5m³/h

Max. Convey Distance

Horizontal:200m;  Vertical: 20m

Max. Aggregate. Size

φ20mm

Hose Inner Size

φ50mm

Rotor Diameter

φ480mm

Operating Pressure

0.2-0.4MPa

Air Consumption

7-8m³/min

Motor Power

YB132M-6

Voltages

380V

Dimension

1520×820×1280mm

Net Weight

600kg





 Wear resistance higher than ordinary standard 3 times.









What can we do for you?

1. We can change the color according to your actual requirements.
2. Customize the voltage motor based on your country standard.
3. Choose different wheels according to your needs.
