Specifications
Grouting pump - Mud pump- Good Quality;
- Competitive Costs Control;
Piston grouting pump
ZUB - 3 mortar pump is a kind of single cylinder piston mortar pump used to transport mortar and spraying operations, this pump is the most ideal a high-performance cement grouting pump at home and abroad.Is widely used in roads, Bridges, municipal construction, tunnels, ports, DAMS, subway, underground construction and building products such as grouting pressure, high pressure, high production efficiency, compact structure is simple, reliable performance, safe and convenient operation, wheel design, convenient movement, etc.
ZUB - 3 type duplex mortar pump advantage: rational design, integration of pumps and compressors, mobile convenience;Continuous, no pulse phenomenon;Applicability is wide and can spray powder, mortar, also can spray ordinary mortar;Spraying uniformity, strong adhesion function is all ready, can either spray and spray;Spray gun and nozzle connection can choose any direction, easy to operation.

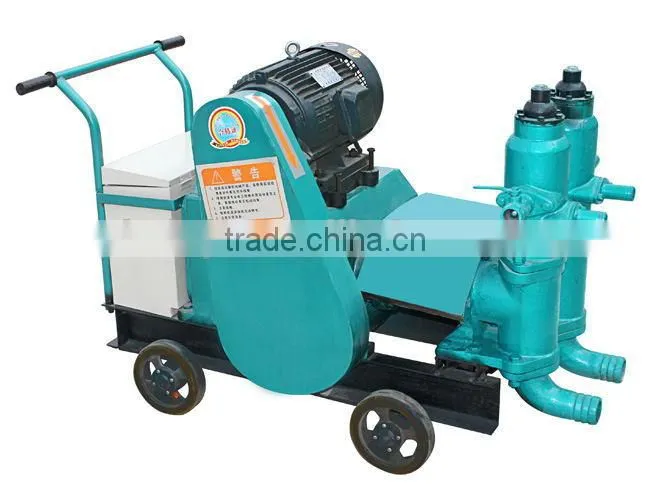

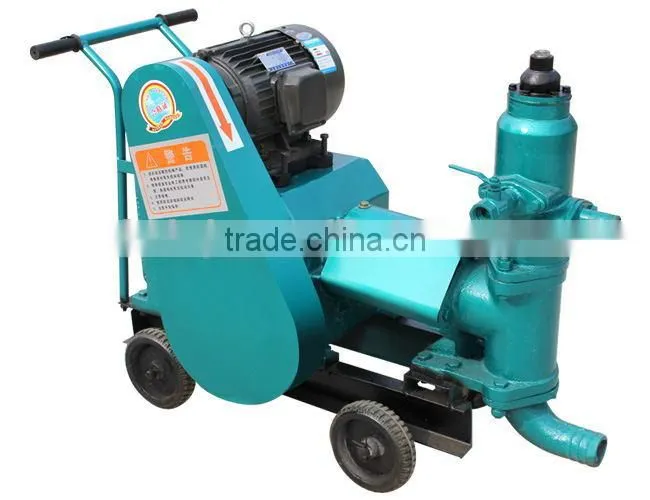

Pictures Show:
Model and technical parameter as follows :
Pulp quantity drained: 3 m3 / h
Pressure of work: 3 mpa
Transmission distance Level 100 m vertical 40 meters
The motor power: 4 kw
Motor speed: 1420 r/min
The piston times back and forth : 150 times/minInto
the slurry pipe inner: 51 mm
The slurry pipe inner: 32/38 mm
Appearance of size:1250 x430x850
The whole machine and accessories: 250 kg
What can we do for you?
1. We can change the color according to your actual requirements.
2. Customize the voltage motor based on your country standard.
3. Choose different wheels according to your needs.
