Specifications
shoctcrete machine -Concrete Throwing Jet- 7m3/h Electric Driven;
- Good Quality;
- Competitive Costs Control;
PA-7 shoctcrete machine -Concrete Throwing Jet

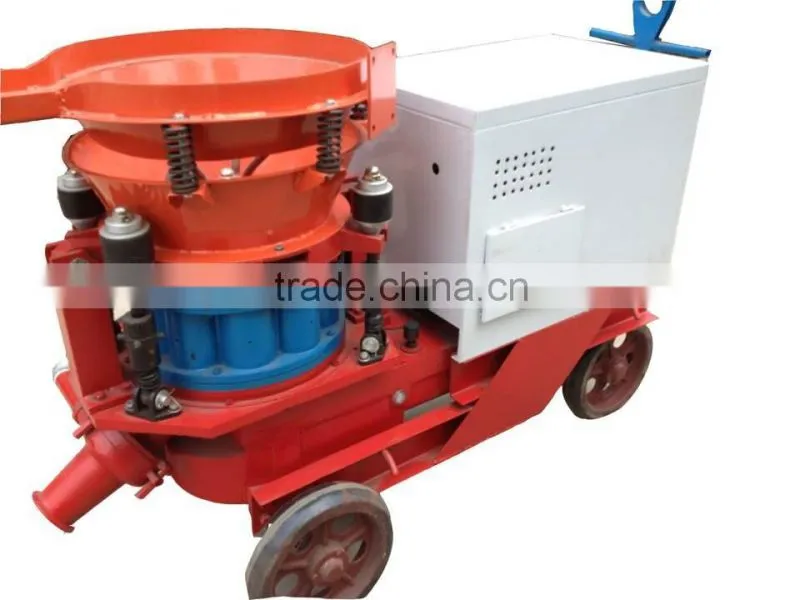

This is a kind of Dry type Shotcrete Spray Machines for Concrete, it has many obvious advantages such as simple structure, easy to operate and convenient after sales service and very long service life etc.
Pictures Show:
Technical Parameter of Shotcrete Machine:
Model |
PZ-7 |
Output |
7m³/h |
Max. Convey Distance |
Horizontal:200m; Vertical: 20m |
Max. Aggregate. Size |
φ20mm |
Hose Inner Size |
φ63mm |
Rotor Diameter |
φ480mm |
Operating Pressure |
0.2-0.4MPa |
Air Consumption |
9-10m³/min |
Motor Power |
Y132M2-6-7.5KW |
Voltages |
380V |
Dimension |
1520×820×1180mm |
Net Weight |
850kg |
WORKSHOP SHOW :
What can we do for you?
1. We can change the color according to your actual requirements.
2. Customize the voltage motor based on your country standard.
3. Choose different wheels according to your needs.
The main advantage of this technology of Shotcrete Machine:
in particular, its top rate of discharge from the jet (up to 30 m/s),which enables perfect consolidation of the concrete mixture and high strength of the sprayed concrete.
Another important feature is the long distance transfer,which enables the application of concrete mixture at hard to access places (up to 200 m horizontally and 20 m vertically).
