WBL1200*14880 Feeding Machine Middle Type Apron Feeder

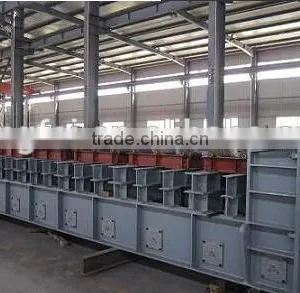

WBL1200*14880 Feeding Machine Middle Type Apron Feeder thumbnail-1
WBL1200*14880 Feeding Machine Middle Type Apron Feeder photo-1
US$ 10,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
YVF2-180L -4-22
Power Type:
Electric
Contact Supplier Request Quote Chat Now
Jiangsu Pengfei Group Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application YVF2-180L -4-22
Power Type Electric
Capacity(t/h) 15-150t/h
Place of Origin Jiangsu, China
Brand Name Pengfei
Model Number WBL1200*14880
Power(W) 22kw
Dimension(L*W*H) according to requirment
Weight 12T
Certification CE ISO
Warranty 12 month
After-sales Service Provided Engineers available to service machinery overseas

Imp&Exp. Sales Manager:Darek Wang

Mobile: 0086-13862700215

SKYPE: tigertiger7353

Wechat: wanghu0215



Application



Apron feeder can be suitable for conveying all kinds of lumpy or loosened material from storage bin to crusher, conveyor or other working machinery along horizontal or inclined direction;  It have three types: light , middle  and heavy types. It is widely used for mine, metallurgy and cement industries etc. and especially suitable for large lump and sharp materials.  It is necessary equipment during raw material treatment or continuous production.



 WBL1200 Apron feeder is designed for middle equipment. It can convey limestone and gypsum etc. whose lumpiness shalln’t be more than 500mm and stacking density shalln’t be more than 1.8×104 N/m3 during operation.



Specification and performance

Width:  1200mm

Inclination:  20°

Center distance of head/end wheel:  14880mm

Conveying speed:  0.1m/s

Amount sending amount :15-150t/h

Conveying capacity: Gypsum etc

Conveying material:  ≤500

Reducer model: P2KA13-400

Speed ratio: i=400

 Motor: YVF2-180L -4-22

 Rated power: 22kW



Working principle and structure & character



The apron feeder consists of drive unit, frame, head device, running parts and end tension device etc. Running parts is a key of the machine.  It can be dragged by circular circuit drag chain; drag chain can be traction on supporting wheel and supporting roller can support conveying channel so as to convey materials.

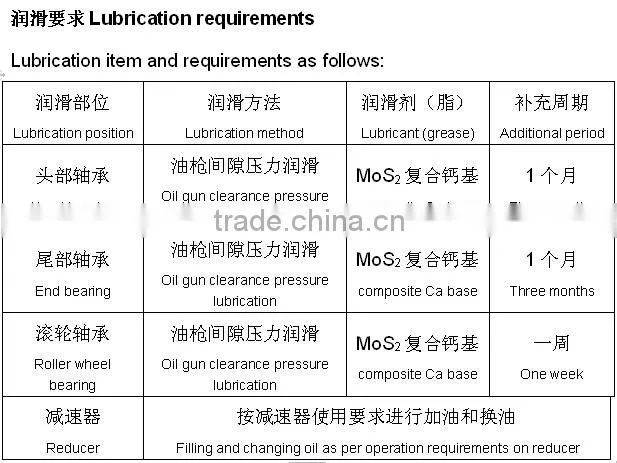

WBL1200*14880 feeding machine middle type apron feeder

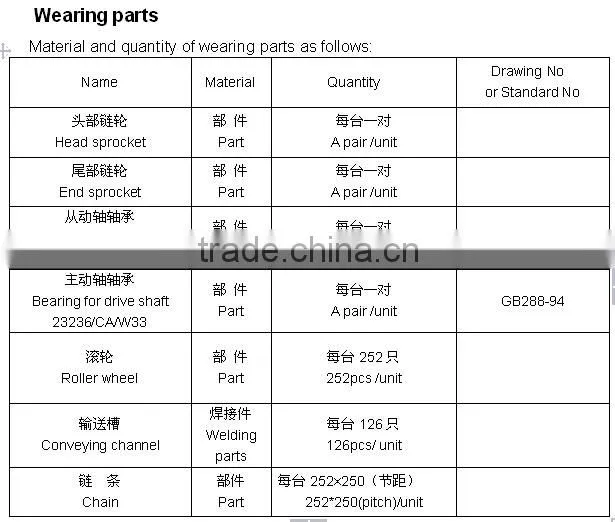

WBL1200*14880 feeding machine middle type apron feeder

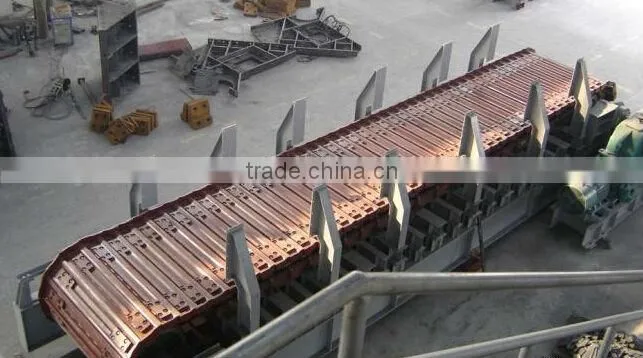

WBL1200*14880 feeding machine middle type apron feeder
