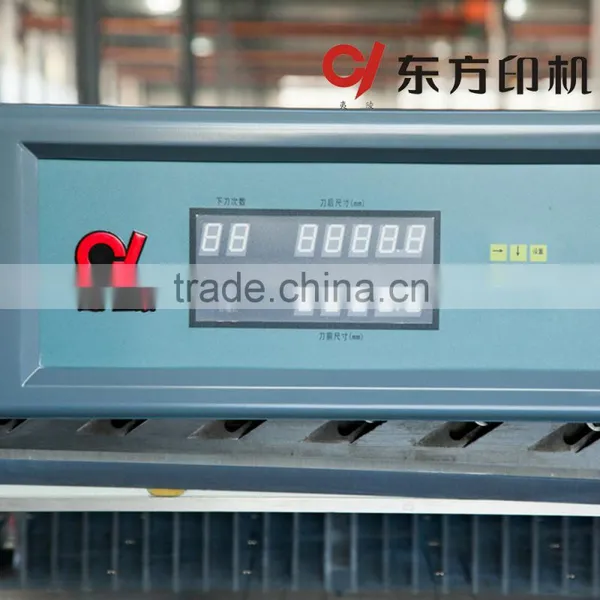

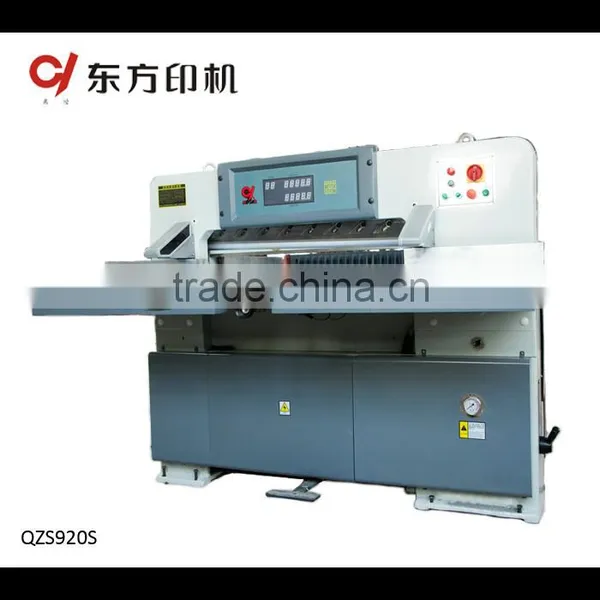

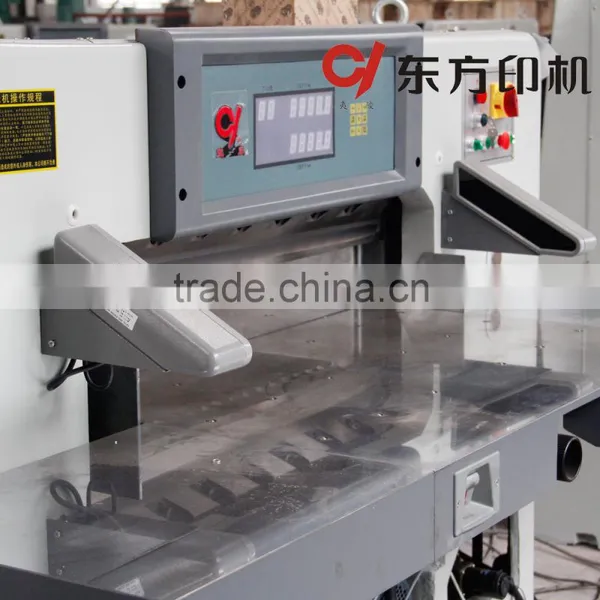

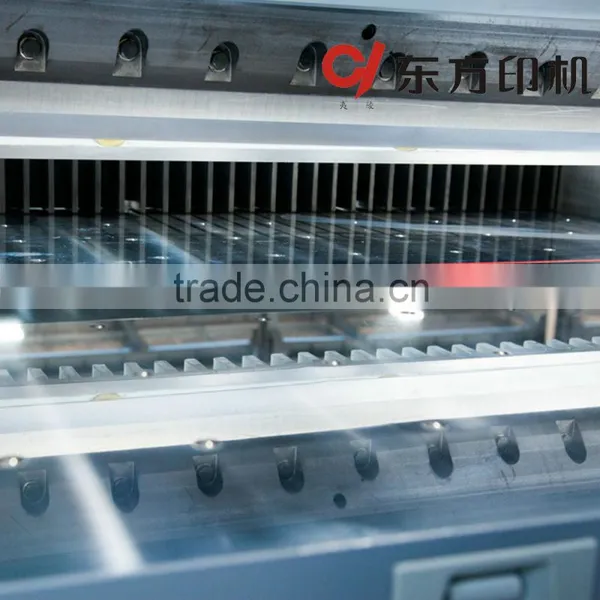

QZX920S Digital-display hydraulic guillotine paper cutter
1.Combined hydraulic with machinery driving, the cutting force is strong. It is fast running and quick to react.

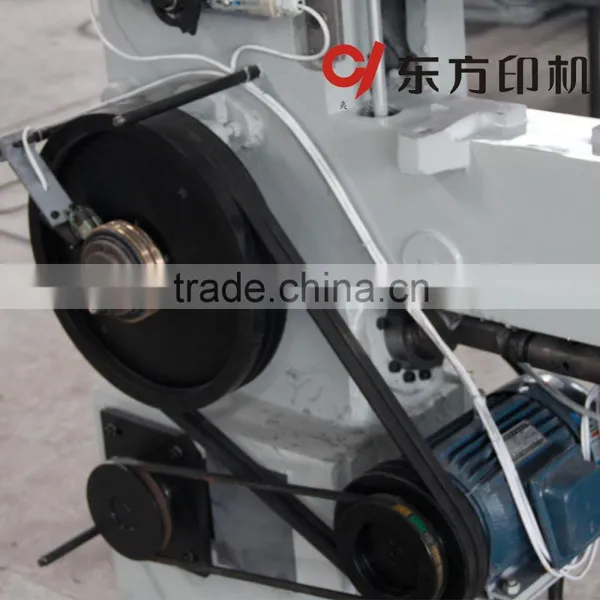

2. Electromagnetic clutch and brake units reduces the damage of the machine. It is energy-saving and consistent.
3.Security System:

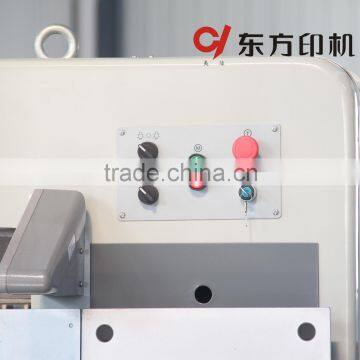

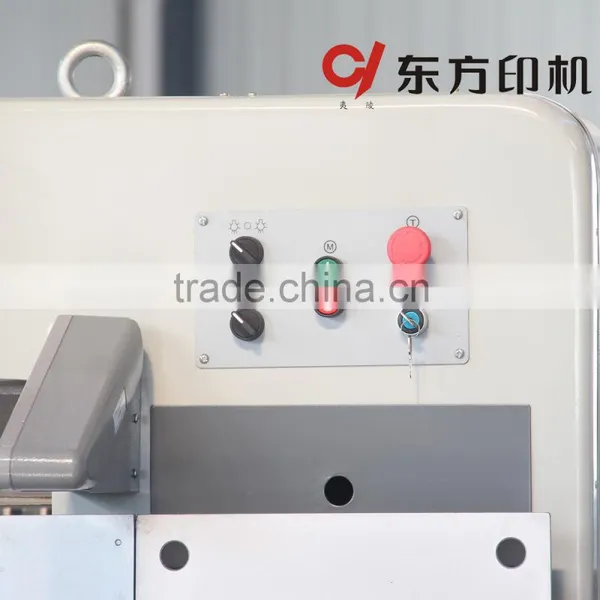

Infrared protection device; cutter block security system, overload protection and two hands operation device
4. the paper-pusher is Dual rail, the positioning and cutting are always accurate.
Application:
The paper cutter is used for cutting various kinds of printing paper materials,paperboard,plastic,leather,cloth and metallic foil,etc with high accuracy high accuracy.
Main Type:
The main paper cutter machine type is showed as below, and we also can produce and design according to consumer's special requirements.
| QZK(X)920S | QZK(X)920B | QZK(X)920W | QZK(X)1300W | QZK(X)1370W | |
| Max. Cutting width(mm) | 920 | 920 | 920 | 1300 | 1370 |
| Max. Cutting height(mm) | 115 | 115 | 120 | 130 | 165 |
| Cutting Speed(times/min) | 30 | 40 | 40 | 45 | 45 |
| Max clamping pressure(N) | 28000 | 35000 | 35000 | 45000 | 45000 |
| Total power(KW) | 4.1 | 4.3 | 4.3 | 5.5 | 5.85 |
| Overall Dimensions(mm) | 2280×1100×1760 | 2210×1230×1735 | 2280×1400×1850 | 2730×1350×1830 | 2950×1400×2000 |
| Gross Weight(KG) | 2000 | 2200 | 2600 | 4000 | 4500 |
| Drivetrain System | Gear | Worm gear | Worm gear | Worm gear | Worm gear |
| Blade Size(mm) | 1065×127×12.7 | 1065×127×12.7 | 1100×127×12.7 | 1520×127×12.7 | 1605×160×13.75 |

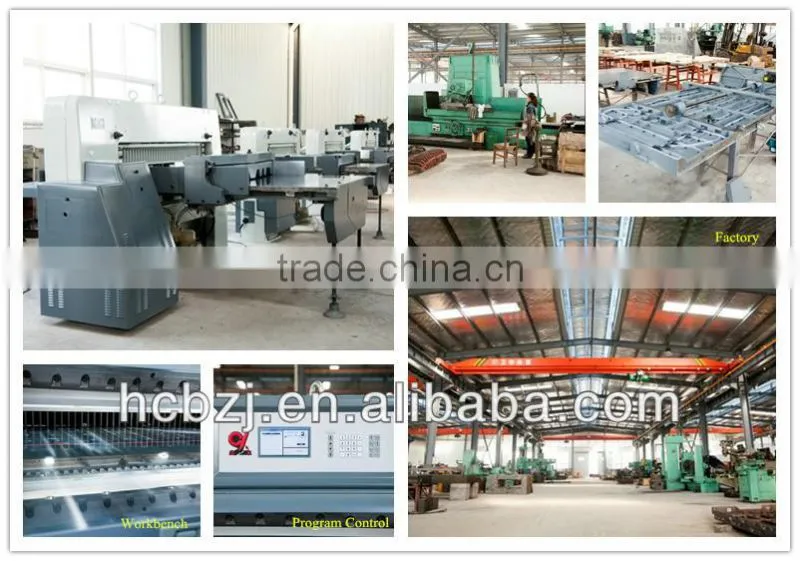

Detail & Factory:

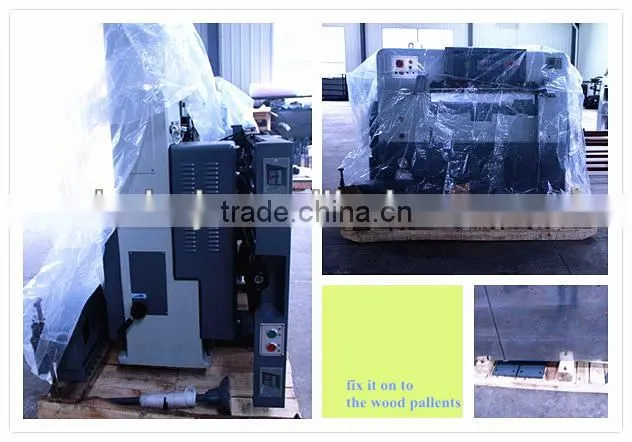

The paper cutter machine is packaged in wooden crate and it is separated to two parts:the body of machine and the workbench.
All the parts are fix on to the wooden crate to make sure that it will not hurt during the transportation.(as it showed in pic)
We export by Shanghi Port usually!
You want progammable ones?OK, i will advice another type.
You worry about machine? OK, welcome to our factory !
Guarantee and after sale Service:
- one year for whole machine
- 24 hour technical support by email
- friendy english content and instructions about the machine
alice huang
0086 15897506175 -both what's app and wechat
Related products:
QZK 920B Programable electric guillotine paper cutter
QZK 1300W Industrial hydraulic paper cutter
