5Liter Pet Semi-automatic Bottle Blow Molding Machine

FOB Price

US$ 94,840 - 316,130 / Set

1 Set(Min. Order)

Port NINGBO
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Bottle
Plastic Processed	PE	Blow Moulding Type	Extrusion Blow Moulding
Automatic	Yes	Place of Origin	Zhejiang, China
Brand Name	YANFENG	Model Number	YF-150B
Voltage	220-380 v; 3 phase; 50-60HZ	Power(W)	100kw
Dimension(LWH)	750045004500mm	Weight	23T
Certification	CE;I SO9001; SGS	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

1,Our Industry Advantage:

(1) PP/PE/PVC/PC/AS/PET/PET-G;

(2) Products of volume: 30ml-1000L;

(3) 1 year warranty;

(4) 20 years experience

(5) After-sales Service Provided: Engineers available to service machinery overseas

(6) All machine for Hydraulic system

(7) Many patent certificates

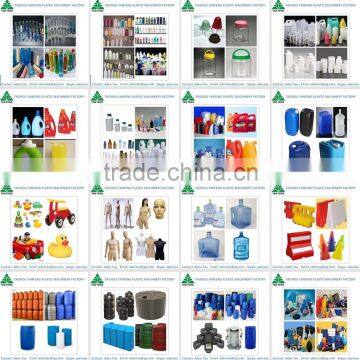

(8) More than 1000pcs different samples

(5)Screw diameter :50mm;55mm,65mm,70mm,80mm,90mm,100mm,120mm,130mm etc.

(6) L/D: 23:1; 25:1; 28:1, 30:1

(7) Sales to more than 30 countries

(8) From 1-3 layers

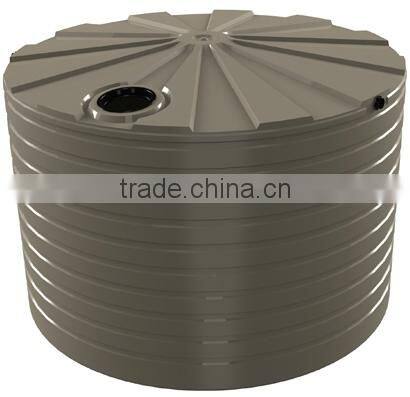

water storage tank extrusion blow molding machine in taizhou from YF-150B

Product Description

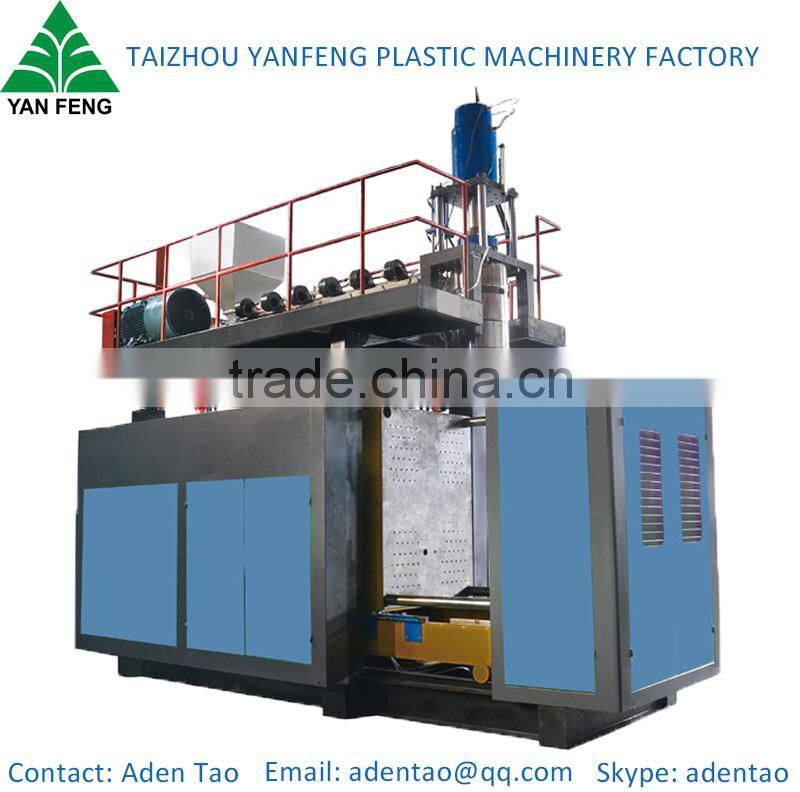

2, YF-150B water storage tank extrusion blow molding machine-Hydraulic system For Max. 1000L

3, Main characteristic

(1) Single process with single Die-head

(2) Max. 1000L

(3) Hydraulic system

(4) Diameter of product 280mm-1200mm

(5) 220-380V; 3 phase; 50-60HZ (Custom Made)

(6) 130mm Diameter of screw; L/D 28:1

(7) 1 Year warranty

4, Technical specification

water storage tank extrusion blow molding machine

System	Item	YF-150B
Basic spec	Applicable Raw Material	HMWHDPE/HDPE
	Max Container Capacity	1000L
	Diameter of product	280mm-1200mm
	Dimension	750045004500mm
	Total Weight	23ton
Extrusion	Main (driving) screw	Φ150mm
	Screw ratio	28:1
	Barrel screw	38CRDOALA
	MAX extruder output	500kg/h
	Drive motor	100KW
	Heating power	28KW
Clamping system	MAX locking plate spacing	1200*1500mm
	Mold open spacing	2300mm
	Clamping force	600KN
	mould thickness	1000mm
Die head	Die head material	38CRDOALA
	Accumulator volume	45L
	Heating power	35kw
	Temperature Regulation Sides	4pcs
Power	Oil pump drive power	35kw
	Total power	200kw
	Average Power Consumption	140kw
	Blowing Pressure	0.6Mpa
	Cooling Water Power	0.2Mpa

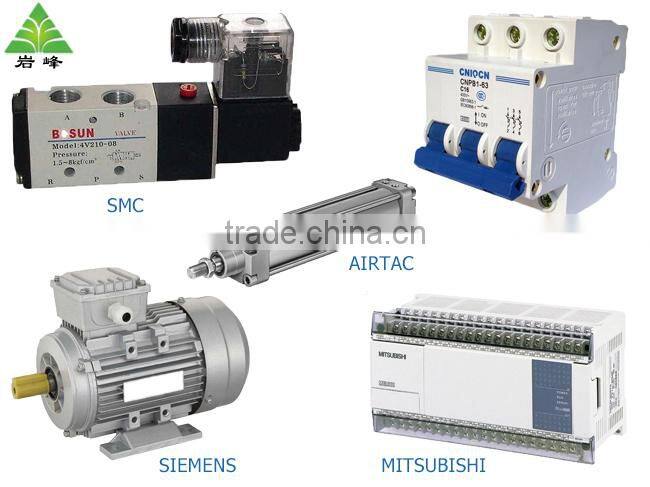

5, Parts and Brand for your reference

Item	Brand	Country
Oil Pump	YUKEN	Japan
Control switch	MITSUBISHI PLC	Japan
The contactor	Schneider Electric	France
Reversing valve	DUPLOMATIC	Italy
Proportioning valve	SMC	Japan
oil valve	YUKEN	Japan
Touch screen	PROFACE	Japan
PLC	MITSUBISHI	Japan
Inverter	INVT	Taiwan
Temperature	OMRON	Japan
Valve	ATOS	Italy

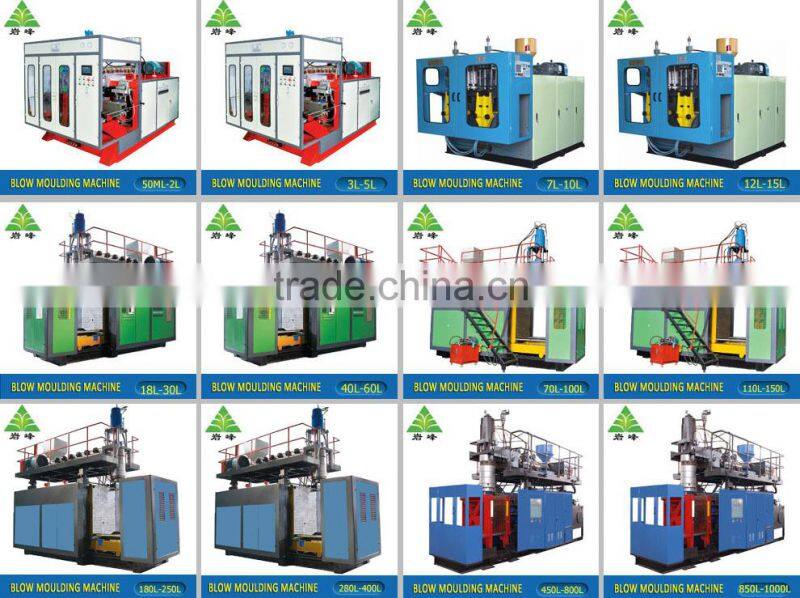

6, Main part pictures
