Our Industry Advantage:
(1) PP/PE/PVC/PC/AS/PET/PET-G;
(2) Products of volume: 30ml-1000L;
(3) 2 years warranty;
(4) 20 years experience
(5) After-sales Service Provided: Engineers available to service machinery overseas
(6) All machine for Hydraulic system
(7) Many patent certificates
(8) More than 1000pcs different samples
(5)Screw diameter :50mm;55mm,65mm,70mm,80mm,90mm,100mm,120mm,130mm etc.
(6) L/D: 23:1; 25:1; 28:1, 30:1
(7) Sales to more than 30 countries
(8) From 1-3 layers
bottle making machine and automatic blowing machine
1, Our machines and samples
Extrusion blow moulding machine
PET blow moulding machine
Samples

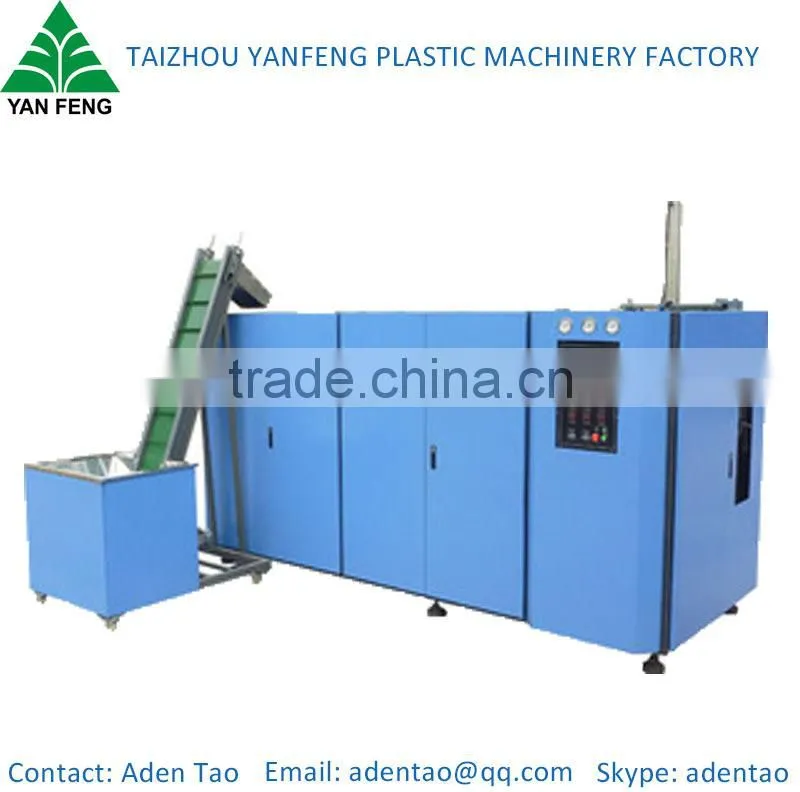

2, YF-Q500 pet water bottle full automatic blow moulding machine
Features
1. Produce bottle from 350MLto 1500ML (From one cavity to six cavities)
2. Output capacity up to 1300-1500 pcs/h for one cavity; 2000-2200pcs/h for two cavities; 3400-3600pcs/h for four cavities;
3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.05second
4. Equipped with special designed air storage unit
5. Using Infrared preform heater
6. Independent Temperature Control for different heating lamp to get ideal preform heating results
7. Heating lamps are adjustable in directions to suit various preforms.
8. Operated only by one person without special training.
9. Simple installation & startup adjustment.
10. Waste rate of finished bottle is less than 0.3%

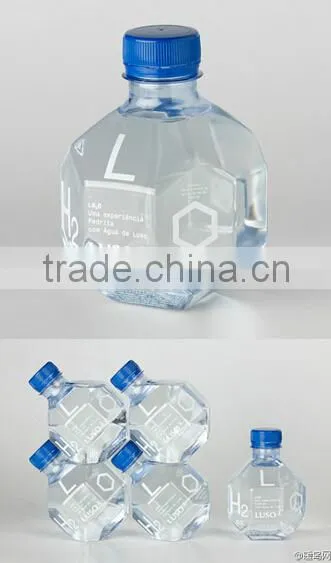

Containers/Samples
3, Technical specification
item |
YF-Q500-1 |
YF-Q500-2 |
YF-Q500-4 |
cavities |
1 |
2 |
4 |
container volume |
1500ML |
1500ML |
1500ML |
clamping stroke |
105mm |
105mm |
105mm |
mold thickness |
160mm |
160mm |
160mm |
stretching stroke |
360mm |
360mm |
360mm |
output |
1400bph |
2300bph |
3500bph |
container diameter |
20-95mm |
20-95mm |
20-95mm |
container height |
30-360mm |
30-360mm |
30-360mm |
neck range size |
18-38mm |
18-38mm |
18-38mm |
Total power |
12kw |
18kw |
30kw |
use power |
6kw |
10kw |
16kw |
working power |
8bar |
8bar |
8bar |
blow pressure |
30bar |
30bar |
30bar |
low air consuming |
0.5m3/min |
0.8m3/min |
1.2m3/min |
air consuming |
0.6m3/min |
1.0m3/min |
1.5m3/min |
water consuming |
16-25L/min |
20-30L/min |
20-30L/min |
size |
1.8*1.5*1.8 |
2.4*1.4*1.8 |
3.8*1.4*1.8 |
weight |
1300kg |
1600kg |
2200kg |
Gate of Factory
Sample Room
Meeting Room
Reception Room
