5L Olive oil bottle blow moulding machine
1, Our machines and samples
Extrusion blow moulding machine
PET blow moulding machine

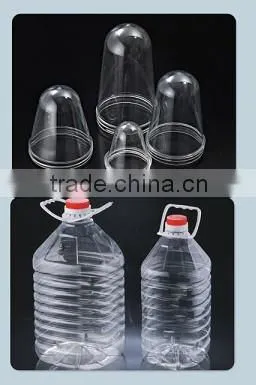

Samples

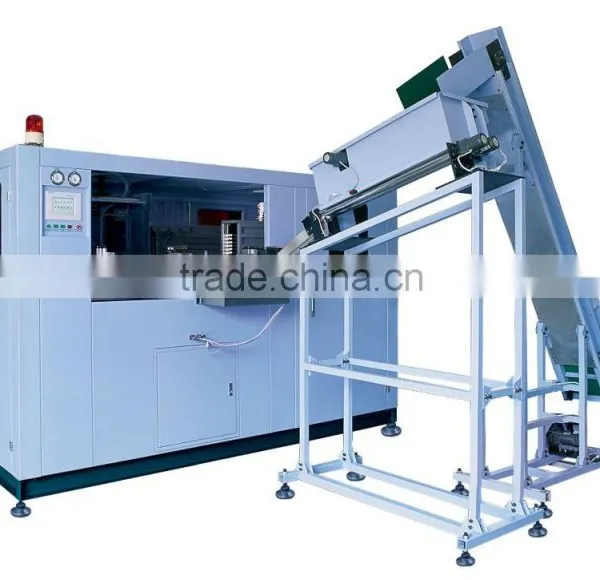

2, YF-Q5 Olive oil bottle blow moulding machine-For max.5L
Features
1. Produce bottle from 1500MLto 5000ML (From one cavity to four cavities)
2. Output capacity up to 400-600 pcs/h for one cavity; 1100-1200pcs/h for two cavities;
3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.05second
4. Equipped with special designed air storage unit
5. Using Infrared preform heater
6. Independent Temperature Control for different heating lamp to get ideal preform heating results
7. Heating lamps are adjustable in directions to suit various preforms.
8. Operated only by one person without special training.
9. Simple installation & startup adjustment.
10. Waste rate of finished bottle is less than 0.3%

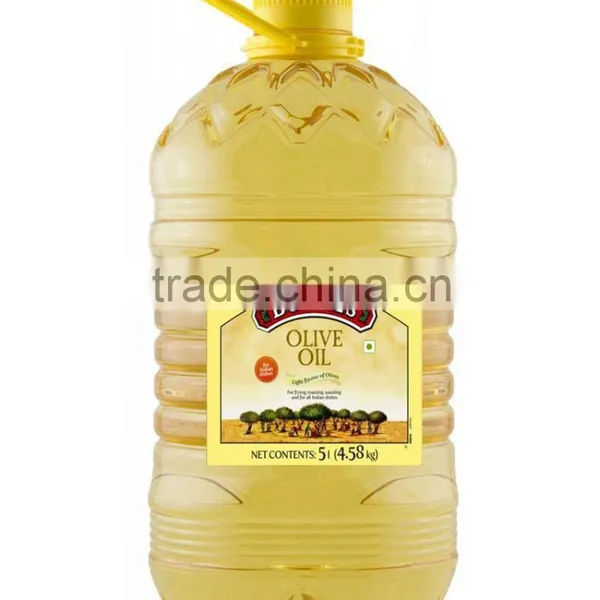

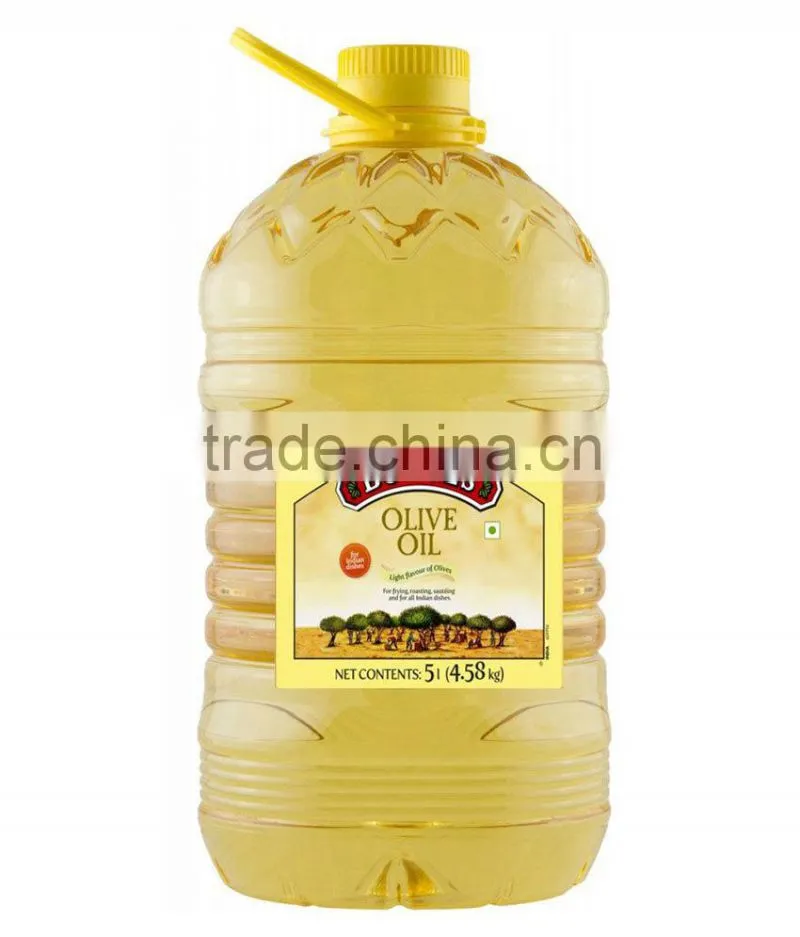

Containers/Samples
3, Technical specification
item |
YF-Q5-1 |
YF-Q5-2 |
cavities |
1 |
2 |
container volume |
5L |
5L |
clamping stroke |
190mm |
190mm |
mold thickness |
200mm |
200mm |
stretching stroke |
450mm |
450mm |
output |
600bph |
110bph |
container diameter |
80-165mm |
80-165mm |
container height |
50-410mm |
50-410mm |
neck range size |
32-68mm |
32-68mm |
Total power |
16kw |
26kw |
use power |
10kw |
18kw |
working power |
8bar |
8bar |
blow pressure |
30bar |
30bar |
low air consuming |
0.6m3/min |
1.0m3/min |
air consuming |
1.0m3/min |
1.5m3/min |
water consuming |
16-25L/min |
20-30L/min |
size |
2.2*2.0*2.0 |
3.2*1.8*2.0 |
weight |
1500kg |
2000kg |
