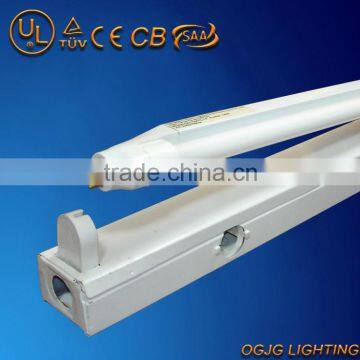

Super Slim T5 Retrofit Kit Adapter Convert T8 T10 T12 UL SAA C-TICK CE
1.CE, SAA, C-TICK, EEI=A2
2.tri-phosphor tube
3.saving energy up to 40%
4.with nano mirror reflecting film ,saving power up to 60%
5.bulit-in night power factor elecrronic ballast , for voltage supply 110V,240V,277V,110V~277V optional.
6.aluminium/PC material optional
7.pins can turn by 90 degree for retrofit almost any style of t8/t10/t12 luminaire
•For retrofittingT8/T10/T12 flourescent light fittings with electronic ballasts, please refer to below wiring diagram.
General information:
| description | model | lamps | replace T8/T12 | fixture Dim. |
| L X W X H(mm) | ||||
| T5 in T8 retrofit lighting fixture | OG-T8/T5-35D |
T5 1X 35W | 58W | 1514X40X38 |
OG-T8/T5-28D |
T5 1X 28W |
36W/40W | 1214X40X38 | |
OG-T8/T5-21D |
T5 1X 21W |
30W | 910X40X38 | |
| OG-T8/T5-14D | T51X 14W | 18W/20W | 606X40X38 |
| Model Mumber | OG-T8/T5-28 |
| Fixture Material: | White coated aluminium/Polycarbonate optional |
Protection Class: |
Ⅱ |
| Moisture Protection: | lP20 |
| Input Voltage: | 220~240V AC |
| Input Frequency: | 50/60Hz |
| Total Circuit Power: | 28W±1W |
| Total Lamp Power: | 24W±1W |
| Efficiency: | >85 lm/W |
| Ballast Lifespan: | 20000H |
| Lamp Lifespan: | 15000H |
| Current Crest Factor: | ≤1.7 |
|
Power Factor: (working with current T8 magnetic ballast) |
≥0.98 |
| Total Harmonic Distortion: | ≤15% |
Install LED tube:(work with electronic ballast or driver)
Install fluorescent tube:(work with electronic ballast)
Other styles:
- installation method
Cautions:
1. Switch off the electricity before replacing the lamp
2. Keep away from direct sunshine and high temperature
3. Indoor use only
4. If any doubt about the installation or use of this product, consult a competent
electrician.
Application Area:
A. Basic commercial lighting;
B. Generally matching in downlight, celling light, household lighting etc;
C. Shopping, lighting, specialty lighting, hotel lighting, office lighting, homelight;
D. Commercial show windows and bars, airport, subway, cloverleaf junction and
architecture field.
LIGHTING FAIR:
Automatic component insert machine :
Certifications:
