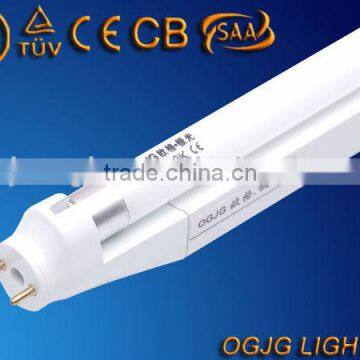

277v T8 to T5 retrofit kit UL listed lighting
Aluminium/PC housing,
for retrofitting T8/T10/T12 lamps,
built-in electronic ballast, high PF
UL TUV-CE CB SAA certified
UL, TUV-CE, TUV-CB, SAA, C-Tick certified.
tri-phosphor tube
saving energy up to 40%
with nano mirror reflecting film, saving power up to 60%
bulit-in night power factor elecrronic ballast, for voltage supply 110V, 240V, 277V, 110V~277V optional.
aluminium/PC material optional
pins can turn by 90 degree for retrofit almost any style of T8/T10/T12 luminaire
General information:
| Model | Power | Lamps | Replace T8 | Fixture Dim(L×W×H)mm |
| OG-T8/T5-35(C) | 1 × 35W | T5 1×35W | 58W | 1514 × 25 × 38 |
| OG-T8/T5-28(C) | 1 × 28W | T5 1×28W | 36W/40W | 1214 × 25 × 38 |
| OG-T8/T5-21(C) | 1 × 21W | T5 1 × 21W | 30W | 910 × 25 × 38 |
| OG-T8/T5-14(C) | 1 × 14W | T5 1 × 14W | 18W/20W | 606 × 25 × 38 |
| Model | Power | Lamps | Replace T8 | Fixture Dim(L×W×H)mm |
| OG-T8/T5-28(UL 110-270V) | 28W | T5 1X28W | 36W/40W | 1214 × 25 × 38 |
| OG-T8/T5-28(UL 277V) | 28W | T5 1X28W | 36W/40W | 1214 × 25 × 38 |
| Model Mumber | OG-T8/T5-28 |
| Fixture Material: | White coated aluminium/Polycarbonate optional |
Protection Class: | Ⅱ |
| Moisture Protection: | lP20 |
| Input Voltage: | 110~277V AC |
| Input Frequency: | 50/60Hz |
| Total Circuit Power: | 28W±1W |
| Total Lamp Power: | 24W±1W |
| Efficiency: | >85 lm/W |
| Ballast Lifespan: | 30000H |
| Lamp Lifespan: | 15000H |
| Current Crest Factor: | ≤1.4 |
Power Factor: (working with current T8 magnetic ballast) | ≥0.99 |
| Total Harmonic Distortion: | ≤8% |
Ballast image:
Cautions:
1. Switch off the electricity before replacing the lamp
2. Keep away from direct sunshine and high temperature
3. Indoor use only
4. If any doubt about the installation or use of this product, consult a competent
electrician.
Application Area:
A. Basic commercial lighting;
B. Generally matching in downlight, celling light, household lighting etc;
C. Shopping, lighting, specialty lighting, hotel lighting, office lighting, homelight;
D. Commercial show windows and bars, airport, subway, cloverleaf junction and
architecture field.
