UL t8 t5 Converter ,t8 to t5 Adapter,t8 Convert t5 Lighting Fixture
Benefits:
1. Energy Saving:
This product is designed for retrofitting existing T8/T10/T12 fluorescent luminaries for saving electricity. Additional NANO reflecting film
is fitted in the reflector to improve brightness by 15%.
2. Easy to install:

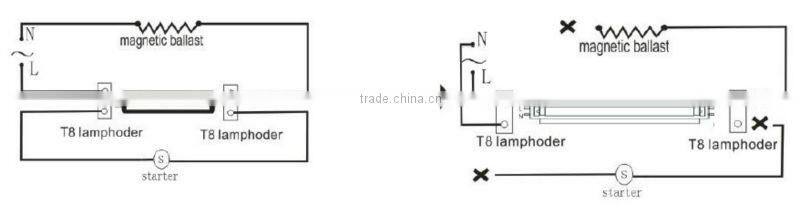

for retrofitting T8/T10/T12 fluorescent light fittings with magnetic ballasts, please refer to below wiring diagram,

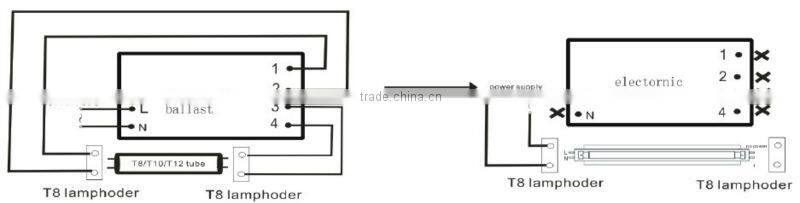

For retrofittingT8/T10/T12 flourescent light fittings with electronic ballasts, please refer to below wiring diagram.

Specification:
| Model | Power | Lamps | Tube Dia. | Replace T8 | Fixture Dim. | Carton Dim. | Pcs./ctn. |
| L× W× H(mm) | L× W× H(mm) | (pcs) | |||||
| OG-T8/T5-35(A) | 1 × 35W | T5 1×35W | Φ16 | 58W | 1514×23×34 | 1530×220×170 | 30 |
| OG-T8/T5-28(A) | 1 × 28W | T5 1×28W | Φ16 | 36W/40W | 1214×23×34 | 1245×220×170 | 30 |
| OG-T8/T5-21(A) | 1 × 21W | T5 1×21W | Φ16 | 30W | 910×23×34 | 930×220×170 | 30 |
| OG-T8/T5-14(A) | 1 × 14W | T5 1×14W | Φ16 | 18W/20W | 606×23×34 | 635×220×170 | 30 |
| Model | Power | Lamps | Tube Dia. | Replace T8 | Fixture Dim. | Carton Dim. | Pcs./ctn. |
| L× W× H(mm) | L× W× H(mm) | (pcs) | |||||
| OG-T8/T5-35(B) | 1 × 35W | T5 1×35W | Φ16 | 58W | 1514×38×34 | 1530×220×170 | 20 |
| OG-T8/T5-28(B) | 1 × 28W | T5 1×28W | Φ16 | 36W/40W | 1214×38×34 | 1245×220×170 | 20 |
| OG-T8/T5-21(B) | 1 × 21W | T5 1×21W | Φ16 | 30W | 910×38×34 | 930×220×170 | 20 |
| OG-T8/T5-14(B) | 1 × 14W | T5 1×14W | Φ16 | 18W/20W | 606×38×34 | 635×220×170 | 20 |

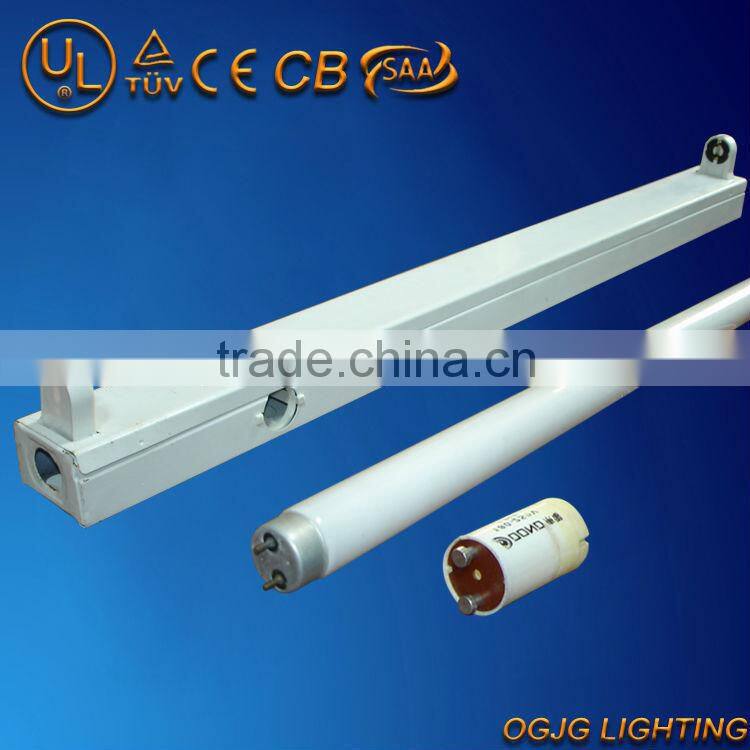

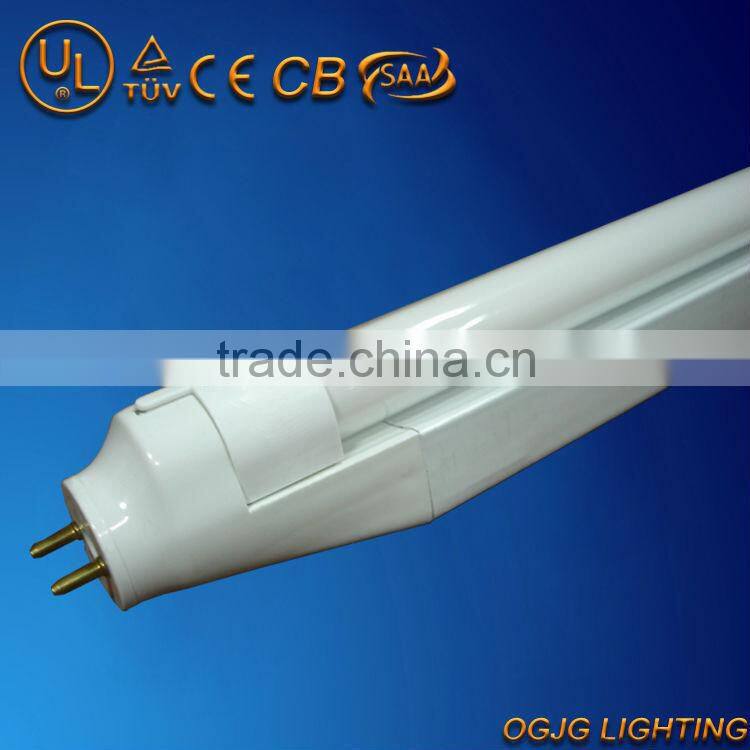

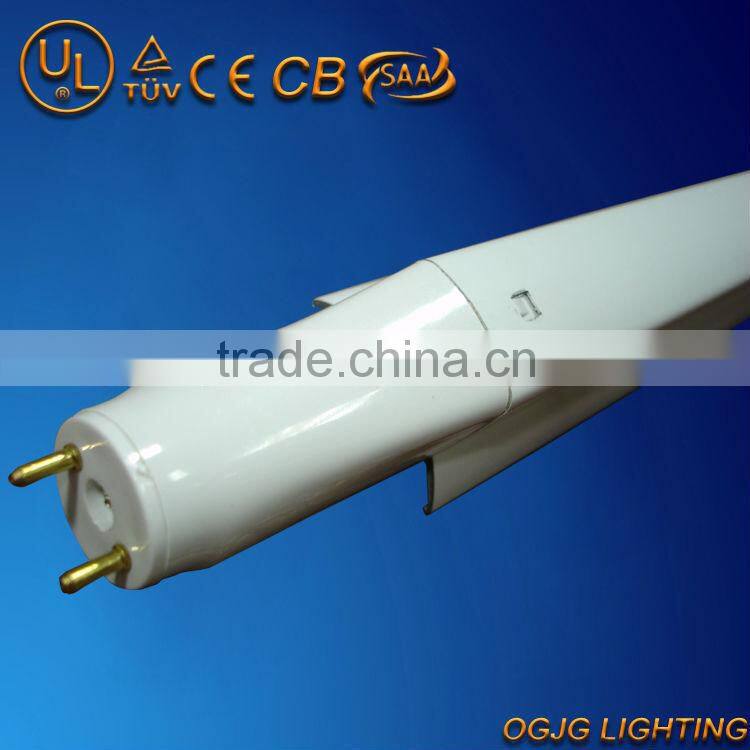

Picture:
↓

↓


Hong Kong Lighting Fair in 2013:
Good feedback from Customers:
If convenient,pls use your phone to scan the two-dimension code,keep my contact information in your phone.
Any problems,pls feel free to contact me.
