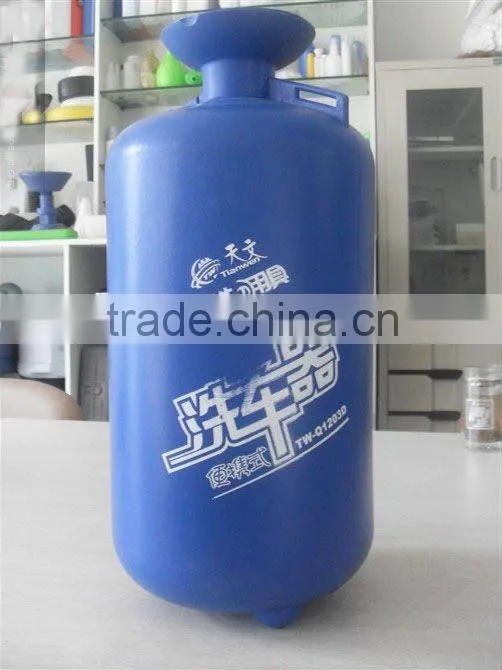

Help CenterPlastic Double Station Extrusion Blow Molding Machine Sprayer Tank 5-15L
Related Products
-
Bottle Double Station Automatic Extrusion Blow Molding MachineNegotiableMOQ: 1 Set -
Double Station Extrusion Blow Moulding Machine Container Jug BottleNegotiableMOQ: 1 Set
-
Double Station Automatic Extrusion Blow Molding MachineNegotiableMOQ: 1 Set
-
PP PEplastic Double Station Blow Moulding Machine Zk-90SNegotiableMOQ: 1 Set
-
PP PE Double Station Accumulator Plastic Blow Moulding Machine Zk-90SNegotiableMOQ: 1 Set
Specifications

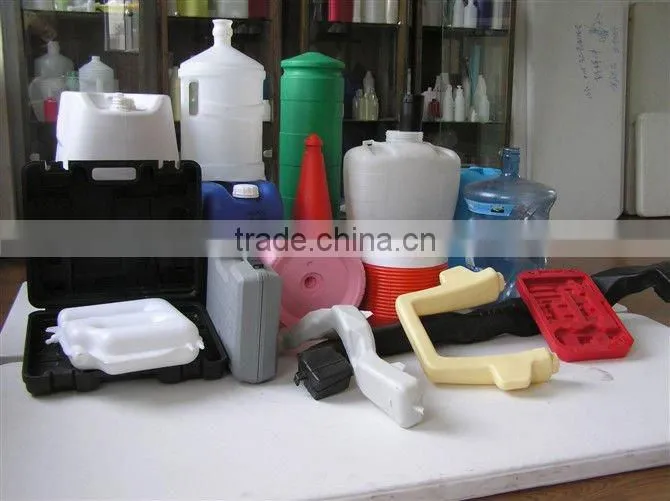

plastic double station Extrusion blow molding machine PLC+touch screen+3-5 point parison controlcar accessories blow parts

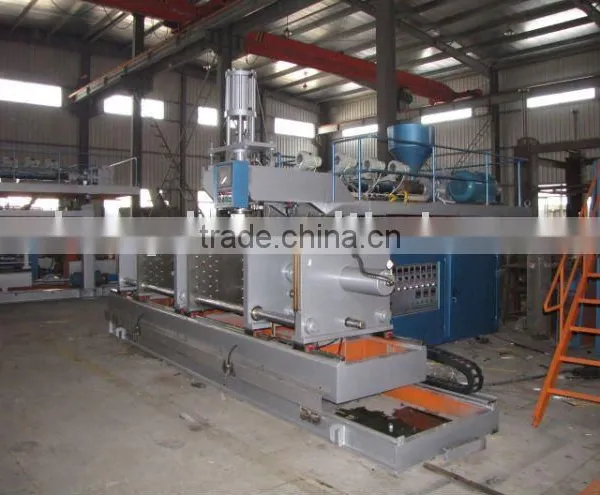

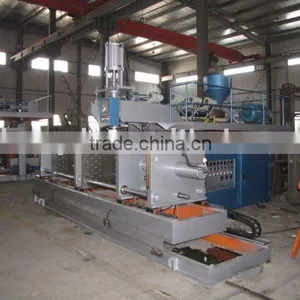

plastic blow molding machine plastic double station Extrusion blow molding machine

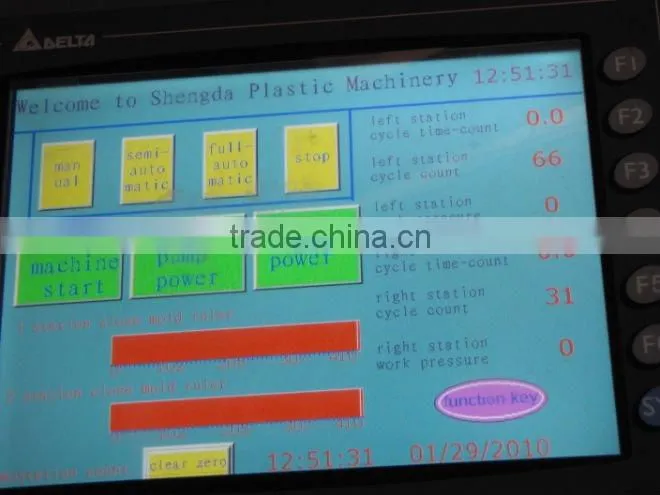

PLC plus man-machine interface, operate by touch screen. Self-diagnosis alarm, clear at a glance.
Accumulator die head whose runner is made by high-quality nitride alloy steel with mirror surface treatment, material and color quick reload.
Unique " three tie bar +three cylinder + linear guide" structure of the clamping structure to ensure a more uniform mode-lock, knit line more smooth.
Hydraulic system designed under energy-saving hydraulic principles, lower energy consumption by 20% -40% compared with the conventional model. At the same time, a significant reduction in oil temperature extends the service life of hydraulic parts.
Variety of functions for different products matching the technological requirements: bottom blow and lift, rotation, encapsulation, material su pport, sub-mould, robot, parison control system ,etc.
specification |
unit |
ZK-70S |
max container capacity |
L |
20 |
machine dimension |
M |
4*4.5*2.7 |
total weight |
ton |
6 |
clamping system |
|
|
clamping force |
KN |
160 |
plate opening stroke |
mm |
250-800 |
max mould size(W*H) |
mm |
520*600 |
mould thickness |
mm |
250-400 |
double moulds stroke |
mm |
1150 |
power |
|
|
max drive |
KW |
11 |
total power |
KW |
60 |
fan power for screw |
KW |
0.72 |
air pressure |
Mpa |
0.7 |
air consumption |
m3/min |
0.9 |
average energy consumption |
KW |
28 |
extruding system |
|
|
screw diameter |
mm |
90 |
screw L/D ratio |
L/D |
25:1 |
plasticising capacity |
kg/hr |
110 |
number of heating zone |
zone |
5 |
extruder heating power |
KW |
12.5 |
extruder driving power |
KW |
22 |
die head |
|
|
number of heating zone |
zone |
3 |
power of die heating |
KW |
7 |
max die-pin diameter |
mm |
250 |
accumulator capacity |
L |
3 |
