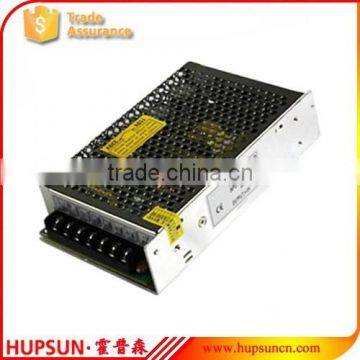

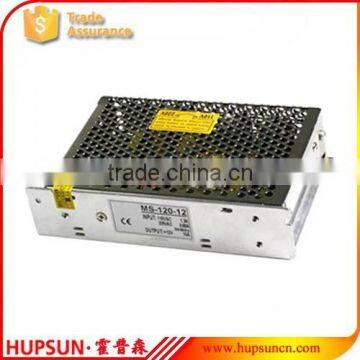

High Quality Compact 120w 12 Volts 15v 24v 27v 48v Switch Led Source Mini Smps Power Supply

Model&Specification

MS-120-12

MS-120-15

MS-120-24

MS-120-27

MS-120-48

DC output voltage

12V

15v

24V

27V

48V

Output voltage range

±1%

±1%

±1%

±1%

±1%

Rated output current

10A

8A

5A

4.5A

2.5A

Output current range

0-10A

0-8A

0-5A

0-4.5A

0-2.5A

Wave and noise

75mVp-p

75mVp-p

75mVp-p

75mVp-p

75mVp-p

Inlet stability

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load stability

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

DC output power

120W

120W

120W

120W

120W

Efficiency

82%

83%

85%

85%

86%

Adjustable range for DC voltage

±10%

±10%

±10%

±10%

±10%

AC input voltage range

AC 170-264VAC 47-63Hz,240-370VDC

Input current

0.65A/230V

AC Inrush current

Cold-start current 36A/230V

Leakage current

<0.5mA/240VAC

Overload protection

105%-150% Type: pulsing hiccup shutdown Reset: auto recovery

Temperature coefficient

±0.03%/°C(0~50°C)

Setup, rise, hold up time

200ms,100ms,30ms

Vibration

10~500Hz, 2G 10min,/1 cycle. Pariod for 60min,Each axes

Withstand voltage

Input and output internal:1.5KvAC,Input and enclosure:l.5KvAC,Output and enclosure:0.5KvA

Isolation resistance

input and output internal : input and enclosure, Output and enclosure:500VDC/100MΩ

Working temperature and humidity

-10°C~+60°C,20%~90%RH

Store temperature and humidity

-20°C~+85°C,10%~95%RH

Overall dimension

157*97*38mm

Weight

0.5kgS

Safety standards

Meet UL 1012 requirement(Not apply for the mark)
