Mid-weight Volume Vertical Automatic Price flour packing machine for soybean milk powder
- 500 Set / Sets per Month
- Guangzhou/Shenzhen/Foshan
- T/T
- CE certificated hydraulic press/Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
- 20 years manufacturer, automatic hay and straw baling machine
- more than 20 years factroy supply CE certificated used clothes and textile baling machine
- more than 20 years factory supply Hard plastic/ Fiber/Cotton/Woolen/Clothes/Textile Baler machine press
- more than 20 years factory supply plastic baler machine
- more than 20 years factory supply Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
Product Details
Condition: | New | Application: | Apparel, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, Packing powder | Packaging Type: | Bags |
Packaging Material: | Plastic | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 220V,50HZ | Power: | 2.2kw | Place of Origin: | Guangdong, China |
Brand Name: | CHLBAO | Model Number: | CB-4230-PA | Weight: | 540kg, 540kg |

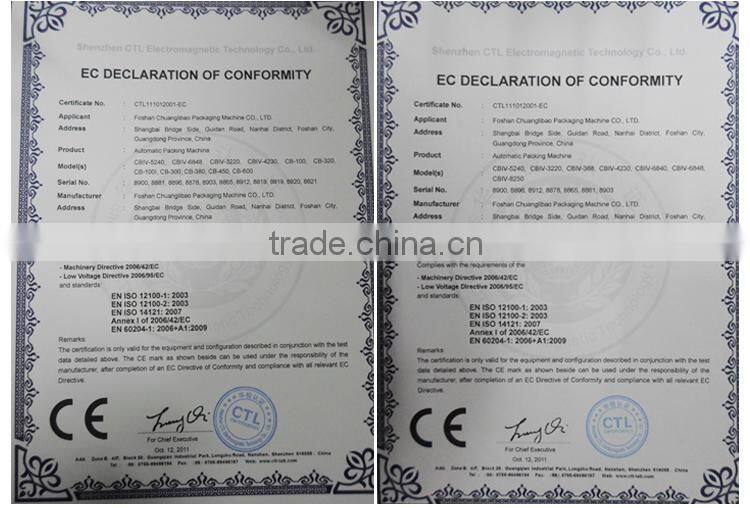

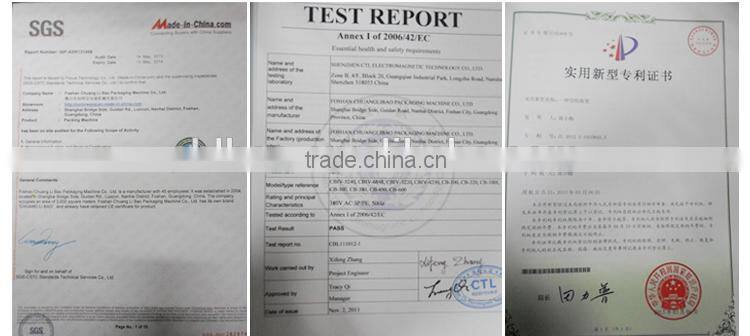

Dimension(L*W*H): | 1080*1300*1400 | Certification: | BV,SGS,CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Automatic Vertical soybean milk powder packaging machine
1.all automatic
2.CE approved
3.high speed
Scope of application:
Suitable for Powder like flour,cocoa,powdered milk chemical powders etc.
Machine components:
No | Components | Remark |
1 | CB-4230 Host machine(included) | Structure:SUS304 |
2 | Auger elevator (included) | Structure:SUS304 |
3 | Auger feeder (included) | SUS304 |
4 | Auger filler (included) | SUS304 |
5 | Finished product conveyor (included) | Carbon steel |
6 | Printer (included) | |
7 | Eye mark (included) |

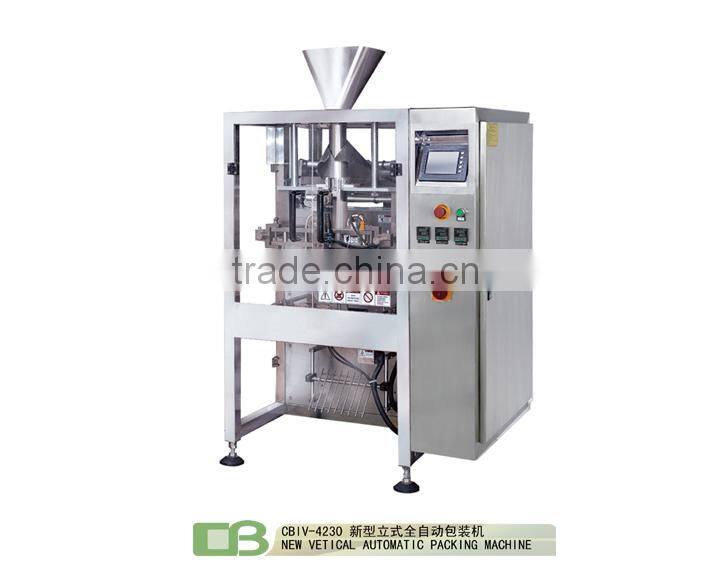

1.The Main Machine(CBSS-4230)
Main feature:
l Import PLC computer control system, human-machine screen, easy touch screen operation.
l With imported servo film transporting system and mark sensor, accurate positioning, perfect packing.
l Perfect automatic alarm function, to minimize the loss.
l Combine with metering device, it can finish the process of metering, feeding, filling, bag making, printing.

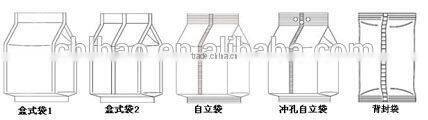

l Bag type: can make it with pillow bag and vertical bag according to customer needs.
Technical Specifications:
Type | CB-4230 |
Bag length | 60-300mm |
Bag width | 60-200mm |
Max width of roll film | 420mm |
Packing material | OPP/CPP,OPP/PE,PET/PE |
Packing speed | 5-60bags/min |
Measuring range | 150-1200ml |
Air pressure | 0.65Mpa |
Gas consumption | 0.3m3/min |
Power voltage | 220V |
Sealing Type |

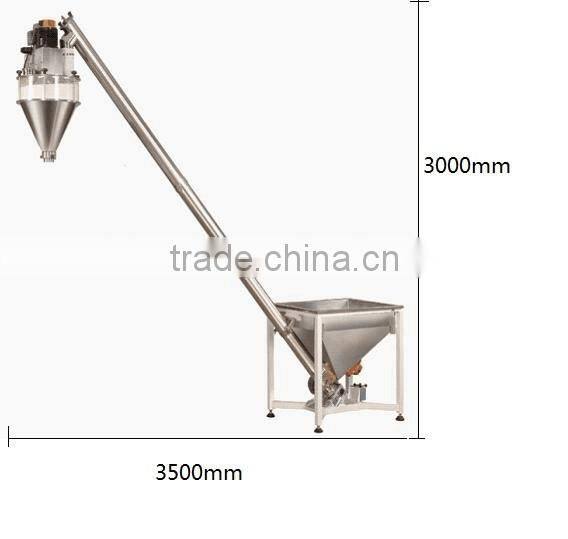

2.The whole set of auger:
Specification:
Auger elevator parameters | |
Lifting height | 3.0m |
Lifting volume | 3cubic meter/hour |
Specification | Customized available |
Material | Stainless steel |
Power | 220V or 380V |
Feeding speed | 30m/min |
Auger doser parameters | |
Filling system | auger |
Volume | 10-5000g(change auger) |
Weighing range | 10-6000g |
Accuracy | Volume <100g Bias:0.5-1g |
Volume:100-1000g Bias:0.5%-1% | |
Volume>1000g Bias:0.25%-0.5% | |
Filling speed | 10-50bags/min |
Power | 220V or 380V |
Total power | 1.5kw |
Material hopper | 50L |
Weight | 200kg |

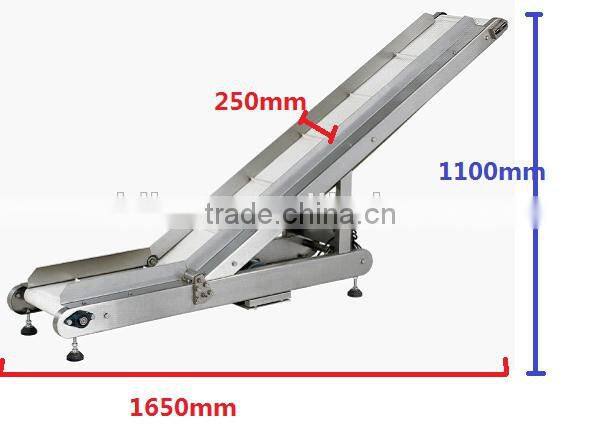

3. Finished product conveyor
Feature:
Delivery speed: 50m/min
Voltage: 220V/50W
Structure: carbon steel
4.Spare part and components' origin
Spare parts' list | |||
No | Specification | unit | terms |
1 | horizontal seal heater inductor | 2pcs | Free of charge |
2 | vertical seal heater inductor | 1pcs | |
3 | cutter | 1pcs | |
4 | themocouple | 1pcs | |
5 | move film belt | 2pcs | |
6 | Proximity switch | 1pcs |
Components' list | ||
No. | Name | General equipment |
1 | PLC touch screen | Simens/Germany |
2 | PLC | Simens/Germany |
3 | Servo motor | Delta/Taiwan |
4 | Control temperature | Yudian/Xiamen |
5 | Color code photoelectric eye | Autonics/Korea |
6 | Cylinder | Airtac/Taiwan |
7 | Electromagnetic valve | Airtac/Taiwan |
8 | FRL combination | Airtac/Taiwan |
9 | Throttle | Airtac/Taiwan |
10 | Mid-relay | Omron/Japan |
11 | Solid state relay | YangMing/Taiwan |
12 | Proximity switch | YangMing/Taiwan |
13 | Button switch | Schneider/France |
14 | Power switch | Schneider/France |
15 | Residual Current Device switch | Schneider/France |
16 | Switch power (3.6A) | Schneider/France |
1) Free consultation service before, during, and after sales;
2) Free project planning and design services;
3) Free debugging of equipment until everything is functional;
4) Free management of equipments' long distance shipping;
5) Free training of equipment maintenance and operating personally;
6) Free new production techniques and formulas;
7) Provide 1 year complete warrantee and lifetime maintenance service
Why do u select us?
1. Good service
A. Provide you the most hot items towards your market.
B. Let you know the process from production to loading for your order.
C. We are care about the case of the goods when you received and try our best to solve the problem.
2.Excellent delivery time
The delivery time will be within 30 days after received deposit. And we could promise: "a penalty of 1 % will becharged for each week of the delay".
3.Product diversification
We are not only produce bathtub, shower room, bathroom cabinets by ourselves, but also as a agent to export rattan furniture and bathroom accessories from other factory. You could always choice the suitable products in our company.
Welcome to visit our factory!
