Low Price Standard Pillow Bag Potato Chips Packing Machine
I.Electronic combination says automatic packaging principle diagram:
1. Put hopper
2. The shock
3. Automatic vertical packaging machine
4. Bull electronic combination says
5. Finished product conveyor
II.The equipment production process: turn on the power will temperature setting and constant temperature setting packaging machine parameters (bag making size and packaging weight) and the artificial feeding reservoir expect hopper vibration to improve transportation measures-material hoist conveying material combination and start electronic measurement and said to print production date, bag making, filling and sealing materials, packaging and inflatable cut off-packing products output process; (this equipment configuration for the double luck film agency: tension membrane resistance small, the film speed, etc.) ;
III. Function Description:
- Chinese and English language touch screen display, easy to operate.
- PLC computer control system, working is stable, adjust parameters without stopping the machine.
- It can save ten parameters, simple to change goods.
- Being adopted to draw film by servo system machine, position accurately.
- Temperature control system independently, accuracy is within ±1℃
IV .Scope of application
Suit for the quantitative weighing of Popcorn, dry pasta, Meatball, Macaroni, hamburgers, oats, washing powder, puffed food, French Fries, biscuit, rice crust, jelly, candy, pistachio nut, apple flake, dumpling, rice dumpling, chocolate, hardware and medicine such particle, platy, strip and irregular shape.

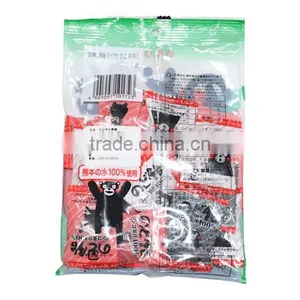

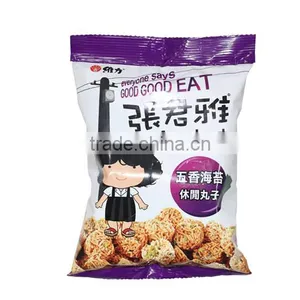

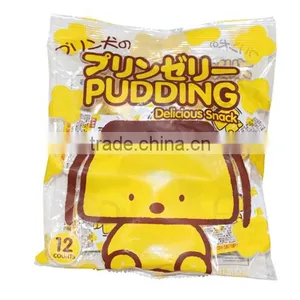

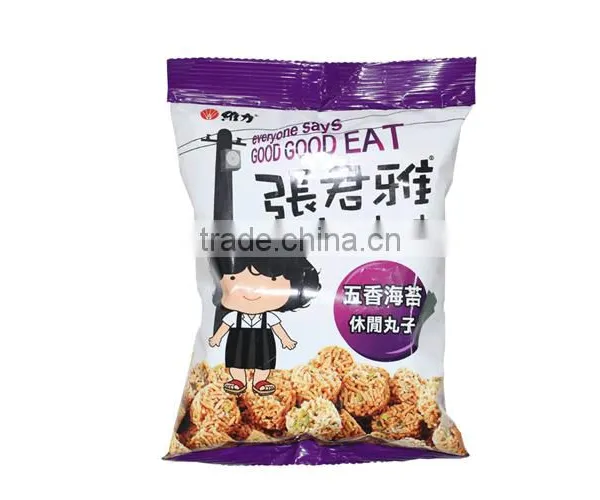

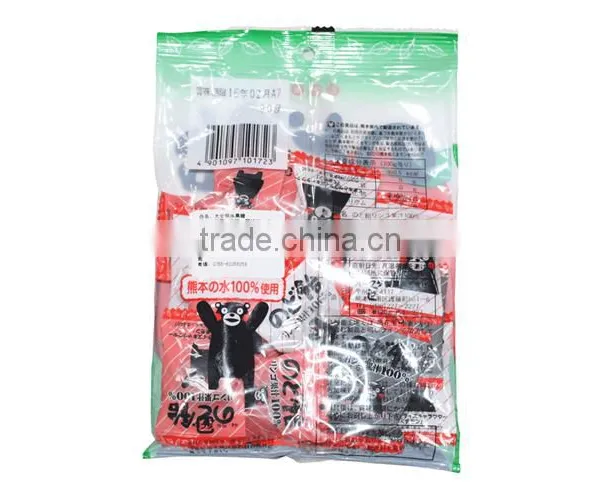

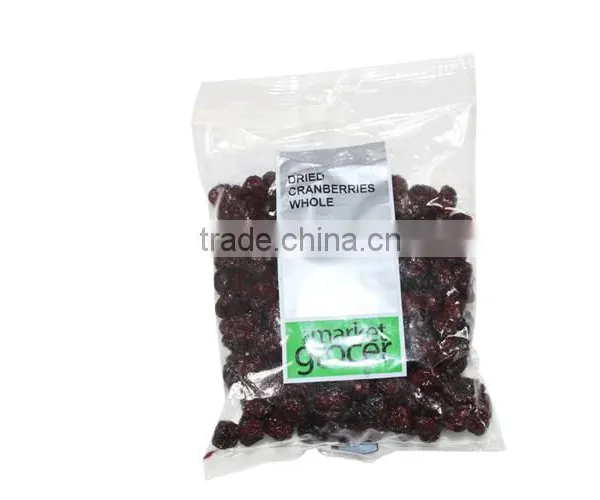

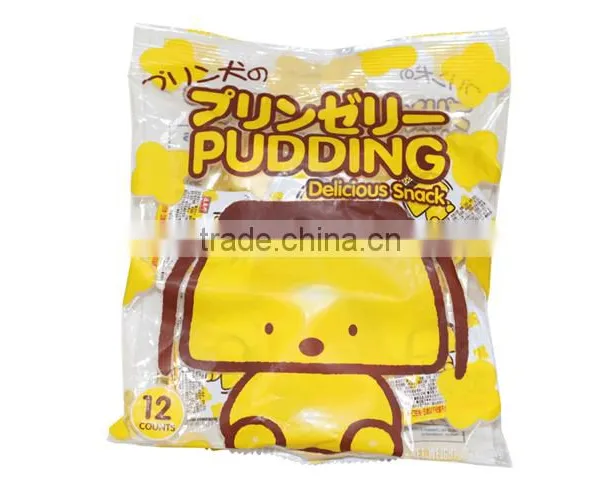

Bay style
Functional Specification
- lImport PLC computer control system, human-machine screen, easy touch screen operation.
- l With imported servo film transporting system and mark sensor, accurate positioning, perfect packing.
- l Perfect automatic alarm function, to minimize the loss.
- l Combine with metering device, it can finish the process of metering, feeding, filling, bag making, printing.
- l Bag type: can make it with pillow bag and vertical bag according to customer needs.
| Model | CBP1-4230 | CBP1-5240 | CBP1-6833 | CBP1-8260 |
| Bag size ( L × W ) | (60-300) × (60-200)mm | (60-300) × (60-200)mm | (60-250) × (60-400)mm | (60-400) × (60-600)mm |
| Max width of roll film | 420mm | 520mm | 680mm | 820mm |
| Packing speed | 5-60bag/min | 5-50bag/min | 5-50bag/min | 5-45bag/min |
| Measuring range | 150-1200ml | 3000ml Max | 6000ml Max | 8000ml Max |
| Packing Material | OPP/CPP OPP/PE PET/PE PE | |||
| Air pressure | 0.65Mpa | |||
| Gas consumption | 0.3m3/min | |||
| Power voltage | 220VAC/50HZ | |||
| Power | 2.2KW | 2.5KW | 3.5KW | 4KW |
| Dimension | (L)1080mm ×(W)1300mm ×(H)1400mm | / | / | / |
| Net weight of machine | 540kg | 650kg | 720kg | 800kg |
Origin of each components
Touch screen: Magic Switch series: Schneider/French
PLC controller: Siemens/Germany Module: Siemens/Germany
Servo motor: TECO/Taiwan Inverter: Schneider/French
Relay: Omron/Japan Date printer: Dingsheng/Shanghai
Solid phase: Schneider/French Photo-sensor: SICK/Germany
Spare part and origin
Aguer elevator
Finished product conveyor
4-head hopper
CUP FILLER SYSTEM
QTY: 5 cups
Counting theory: volumetric meter according to density of material
Components
No. |
Name |
Brand / Origin |
1 |
PLC touch screen |
Siemens / Germany |
2 |
PLC |
Siemens / Germany |
3 |
Servo motor |
Siemens / Germany |
4 |
Control temperature |
Yudian / Xiamen |
5 |
Color code photoelectricity |
Autonics / Korea |
6 |
Cylinder |
Airtac / Taiwan |
7 |
Electromagnetic valve |
Airtac / Taiwan |
8 |
FRL combination |
Airtac / Taiwan |
9 |
Throttle |
Airtac / Taiwan |
10 |
Mid-relay |
Omron / Japan |
11 |
Solid state relay |
YangMing / Taiwan |
12 |
Proximity switch |
YangMing / Taiwan |
13 |
Button switch |
Schneider / France |
14 |
Power switch |
Schneider / France |
15 |
Residual Current Device switch |
Schneider / France |
16 |
Switch power(3.6A) |
Schneider / France |
Spare parts list
No. |
SPECIFICATION |
unit |
terms |
1 |
horizontal seal heater inductor |
2pcs |
Free of charge |
2 |
vertical seal heater inductor |
1pcs |
|
3 |
Cutter |
1pcs |
|
4 |
thermocouple |
1pcs |
|
5 |
move film belt |
2pcs |
|
6 |
Proximity switch |
1pcs |
CHUANGLIBAO has been an professional manufacturer of packing machine since 1998. We have strong research and development team, research and innovate is our aim and market is our guiding. We can research 2-3 new machines each year, and we spent more than USD $50000 for exhibition each year, we have been to Turkey, Indonesia, Malaysia, Dubai and so on, so we think we should have enough experience to help u more.
We are the second biggest packing machine supplier in China, our production is 50 sets per month, we can delivery you machine within 25 days as soon as we got your deposit. And we can send our engineer and master to your factory for machine service if you need, so we can help you in time.
Each Client Can Enjoy The Following Services
- Free consultation service before, during, and after sales;
- Free project planning and design services;
- Free debugging of equipment until everything is functional;
- Free management of equipments' long distance shipping;
- Free training of equipment maintenance and operating personally;
- Free new production techniques and formulas;
- Provide 1 year complete warrantee and lifetime maintenance service
Q: Why do you choose our packing machine?
A: Our machine with high quality and good service, We can solve your packing issue as soon as quickly if you have any questions, we also can send our engineer to you there if u need.
Q: What is the delivery time and how many days will come to destination port?
A: 20 working days after receiving deposit, the delivery time to destination port depends on your destination port.
Q: What’s advantage of your company and your packing machine?
A :Well trained and Experienced after-sales team and agents all over the world, guarantee the good maintenance and service during the use of machines.
