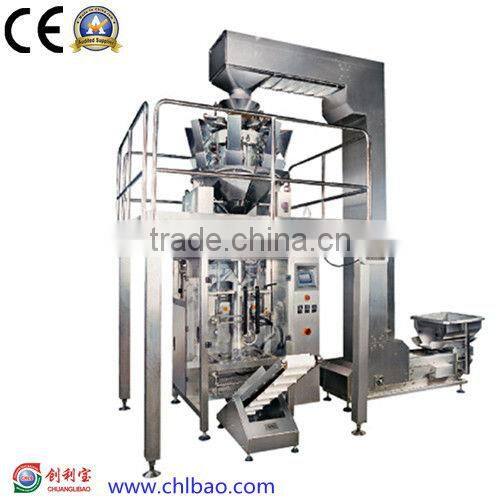

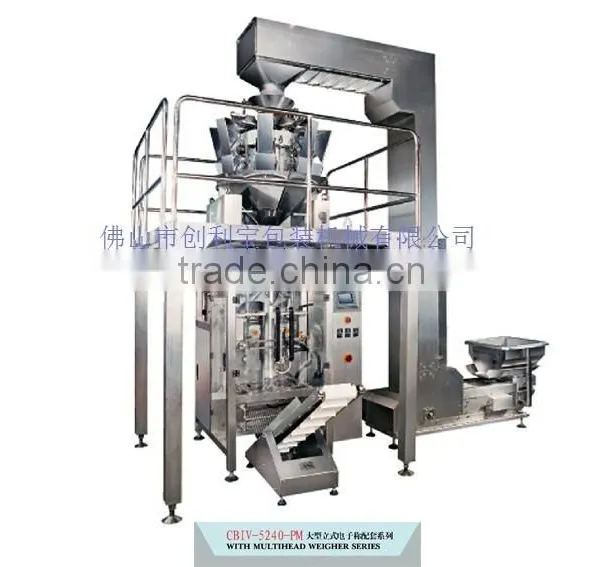

High speed and high quality powder pack machine triangle vertical packing machine CB5240
Machine components:
No. |
Model No. And Name |
Remark |
1 |

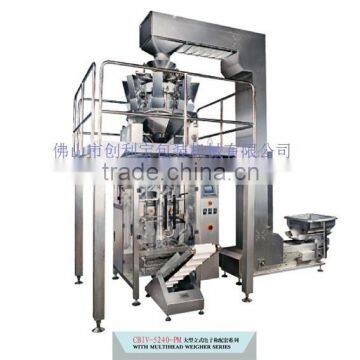

CB-5240 Host machine (Included)
|
Complete machine with 304 stainless steel. |
2 |
AC-10 Weigher with 10 head combination (Included) |
|
3 |

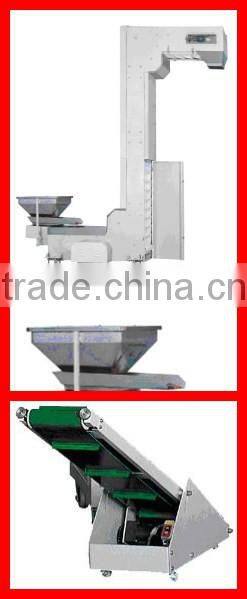

Z type product conveyor (Included) |
|
4 |
Working platform (Included) |
|
5 |
Finished product conveyor (Included) |
|
6 |
Printer (Included) |
|
7 |
Eye mark(included) |
Application:
Suit for the quantitative weighing of Popcorn, dry pasta, Meatball, Macaroni, hamburgers, oats, washing powder, puffed food, French Fries, biscuit, rice crust, jelly, candy, pistachio nut, apple flake, dumpling, rice dumpling, chocolate, hardware and medicine such particle, platy, strip and irregular shape.

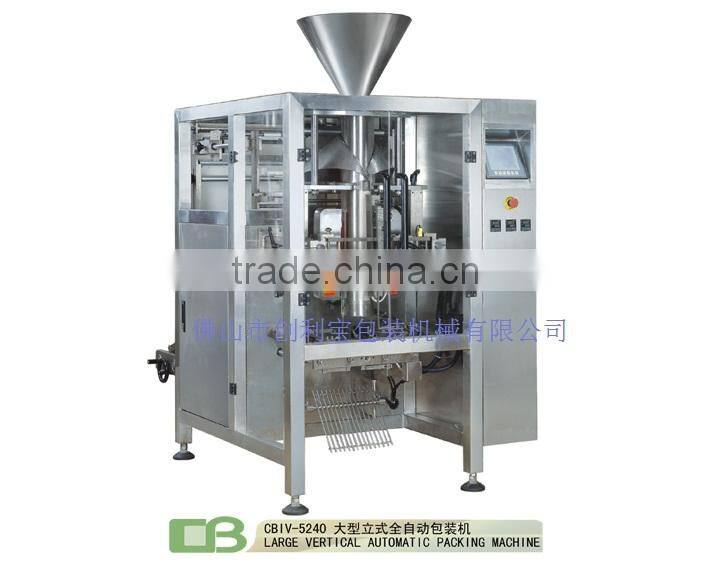

1.VFFS-5240 host machine
Main feature:
l Import PLC computer control system, human-machine screen, easy touch screen operation.
l With imported servo film transporting system and mark sensor, accurate positioning, perfect packing.
l Perfect automatic alarm function, to minimize the loss.
l Combine with metering device, it can finish the process of metering, feeding, filling, bag making, printing.
l Bag type: can make it with pillow bag and vertical bag according to customer needs.
Technical Specifications:
Model |
SS-5240 |
Bag size |
L (80-400) * W (50-250) mm |
Packing speed |
5-60 bags/min |
Measuring range |
3000 ml (max) |
Max width of film roll |
≤520 mm |
Air consumption |
0.65 mpa |
Gas consumption |
0.4 m3/min |
Power requirement |
220 V, 50 HZ |
Machine size |
L 1150 * W 1795 * H 1650 mm |
Machine weight |
600KG |
|

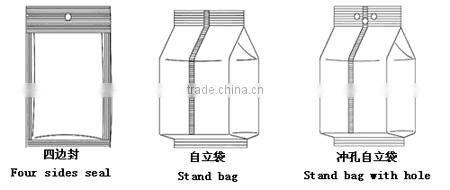

Sealing Type
| |

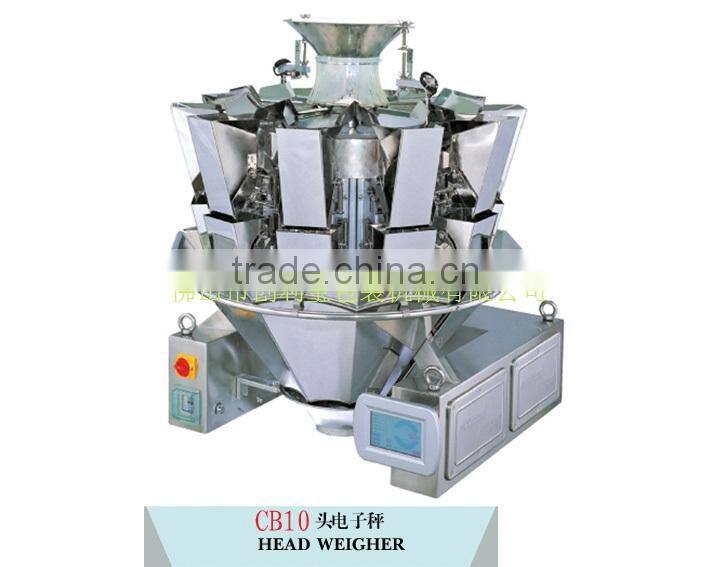

2.JW-A10 10-HEAD COMBINATION WEIGHER
A. Specifications:
Model |
JW-A10 |
|
Max. Cap.(g) |
10-800g |
800-1500g |
Weighing Accuracy(g) |
0.1-1.5g |
0.5-2g |
Max. Weighing Speed |
65WPM |
45WPM |
Hopper Volume |
1600ml |
2500ml |
Control Panel |
10.4"LCD Keypad Screen/Touch Screen |
|
Options |
Dimple Plate/Timing Hopper/Printer/Rotary Top Cone |
|
Driving System |
Step Motor |
|
Power Requirements |
220V / 1000W / 50/60HZ / 10A |
|
Packing Dimension(mm) |
1720 (L)x1100 (W)x1100 (H) |
|
Gross WGT |
420KG |
|
3 .Include parts
4,Component
Component list | |||
No. |
Name |
General equipment |
|
1 |
PLC touch scree |
Siemens /Germany |
|
2 |
PLC |
Siemens /Germany |
|
3 |
Servo motor |
Siemens / Germany |
|
4 |
Control temperature |
Yudian/Xiamen |
|
5 |
Colour code photoelectricity |
Autonics/Korea |
|
6 |
Cylinder |
Airtac/Taiwan |
|
7 |
Electromagnetic valve |
Airtac/Taiwan |
|
8 |
FRL combination |
Airtac/Taiwan |
|
9 |
Throttle |
Airtac/Taiwan |
|
10 |
Mid- relay |
Omron/Japan |
|
11 |
Solid state relay |
YangMing/ Taiwan |
|
12 |
Proximity switch |
YangMing/ Taiwan |
|
13 |
Button switch |
Schneider/France |
|
14 |
Power switch |
Schneider/France |
|
15 |
Residual Current Device switch |
Schneider/France |
|
16 |
Switch power(3.6A) |
Schneider/France |
|
Welcome to visit our factory to check the machine !
