Home > Products > Powder packing machine > Factory Price Stable Filling Masala Spices Chili Powder/ Milk Powder / Washing Detergent Powder Packing Machine with perforation

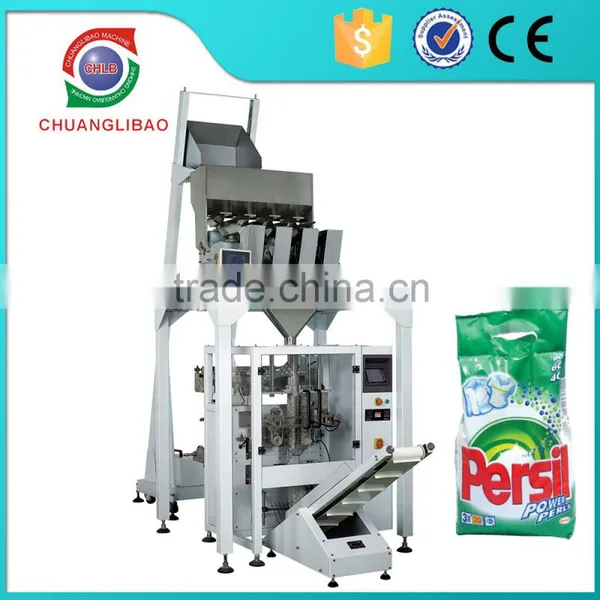

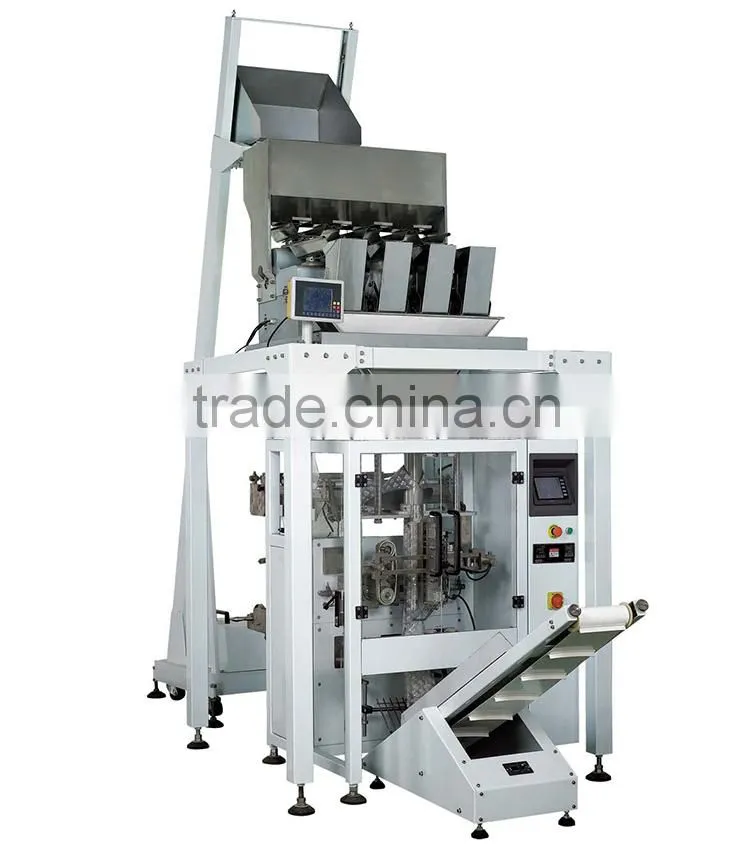

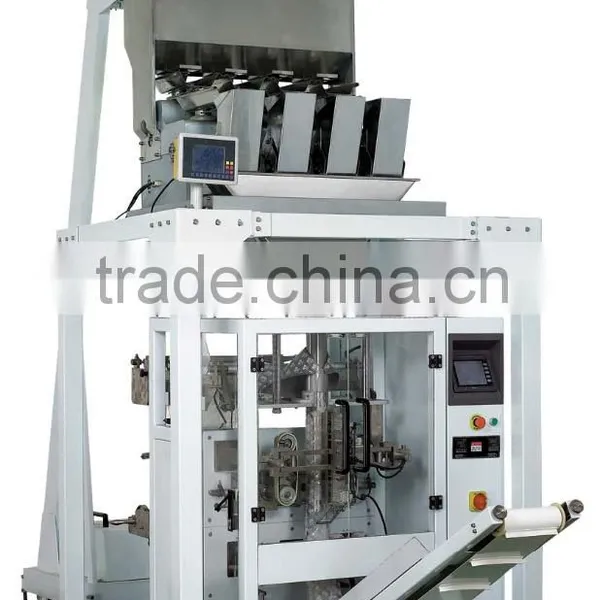

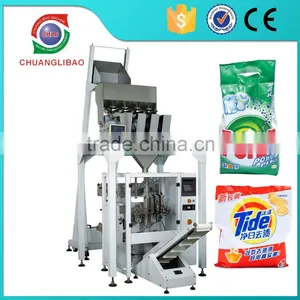

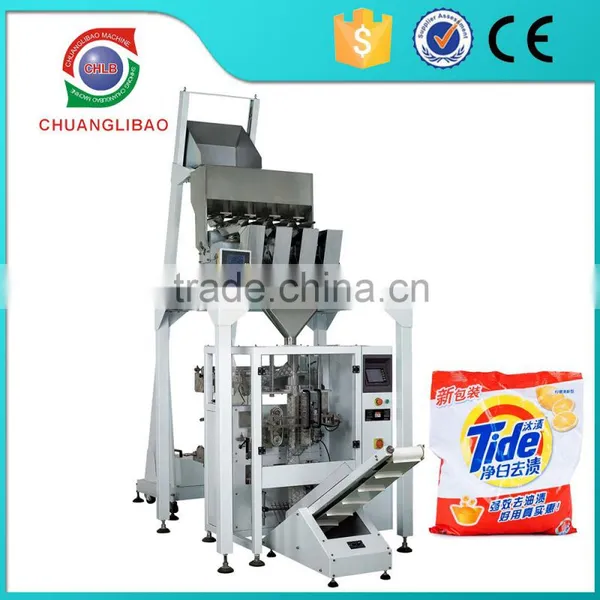

Factory Price Stable Filling Masala Spices Chili Powder/ Milk Powder / Washing Detergent Powder Packing Machine with perforation
- 500 Set / Sets per Month
- Guangzhou/Shenzhen/Foshan
- T/T L/C D/P D/A Credit Card PayPal
- Maquillageplastic sealing heat shrink packaging machine Seal and shrink the film packaging machine
- Express deliverybox packing and paste sheet packing machine Box sealing and paste single package all-in-one machine
- Maquillagemembrane packing machine
- Bookseal the heat-shrink packaging machine Seal and shrink the film packaging machine
- Automatic Screw Counting Packing Machine
- Maquillagemembrane packing machine Gift packageseal and cut the packaging machine
Product Details
Condition: | New | Function: | Filling, Sealing, Wrapping, Other, Filling, Sealing, Wrapping, Configue the defense package | Application: | Chemical, Commodity, Food, Other, Medical, Textiles, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles |
Packaging Type: | Bags, Capsule, Pouch | Packaging Material: | Plastic | Automatic Grade: | Automatic |
Driven Type: | Electric | Voltage: | 220V | Power: | 50HZ 3KW |
Place of Origin: | Guangdong, China | Brand Name: | CLB | Model Number: | CBP1-4230PM with 4 heads |
Dimension(L*W*H): | L 1080 X W1300 X H 1400 | Certification: | CE SGS | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Factory Price Stable Filling Masala Spices Chili Powder/ Milk Powder / Washing Detergent Powder Packing Machine with perforation
1.Application & sample bags:
Suit for the quantitative weighing of Popcorn, dry pasta, Meatball, Macaroni, hamburgers, oats, washing powder,
puffed food, French Fries, biscuit, rice crust, jelly, candy, pistachio nut, apple flake, dumpling, rice dumpling, chocolate,
hardware and medicine such particle, platy, strip and irregular shape.
2.Function Description:
1.Idea for dosing fine granule products, can be adjusted manually. Easy to clean thoroughly. Anumber of options are available depending on specific requirements.
2.Composed of a series of vibratory chute designed to control the flow of the products towards the weighing cell.
3.As soon as the programmed weight is reached,the vibratory pans come to an immediate halt and the weighing cell empties its contents into the forming tube.
Model | CBP1-4230 | CBP1-5240 | CBP1-6833 | CBP1-8260 |
Bag size ( L × W ) | (60-300) × (60-200)mm | (60-300) × (60-200)mm | (60-250) × (60-400)mm | (60-400) × (60-600)mm |
Max width of roll film | 420mm | 520mm | 680mm | 820mm |
Packing speed | 5-60bag/min | 5-50bag/min | 5-50bag/min | 5-45bag/min |
Measuring range | 150-1200ml | 3000ml Max | 6000ml Max | 8000ml Max |
Packing Material | OPP/CPP OPP/PE PET/PE PE | |||
Air pressure | 0.65Mpa | |||
Gas consumption | 0.3m3/min | |||
Power voltage | 220VAC/50HZ | |||
Power | 2.2KW | 2.5KW | 3.5KW | 4KW |
Dimension | (L)1080mm ×(W)1300mm ×(H)1400mm | / | / | / |
Net weight of machine | 540kg | 650kg | 720kg | 800kg |
3.All following parts
1 x main machine CB-4230(SUS304)
1 x cup filler(five cups only)
1 x material elevator(SUS304)
1 x easy bag opening
1 x forming set
1 x date code printer
1 x Print mark registration for correct bag cut off.
1 x bag support after cut off
1 x 130mm belt width conveyor(painted)
4.Teching video link for CBP1-4230PM with 4 heads
/watch?v=gpCErAGcLzk
5.Excellent services for free:
- Consultation service before, during, and after sales;
- Project planning and design services;
- Debugging of equipment until everything is functional;
- Management of equipments' long distance shipping;
- Training of equipment maintenance and operating personally;
- New production techniques and formulas;
- Provide 1 year complete warrantee and lifetime maintenance service.
- Spare part list
No. | Spare part | QTY | |
1 | kit | 1 | 400mm x 200mm x 200mm |
2 | belt | 2 | For driving the film |
3 | Horizontal heater | 4 | For temperature control |
4 | Vertical heater | 4 | For temperature control |
5 | Socket head wrench | 1 | For driving screw |
6 | Cross screwdriver | 1 | For driving screw |
7 | Straight screwdriver | 1 | For driving screw |
8 | Monkey spanner | 1 | For driving screw |
9 | Spanner | 1 | For driving screw |
10 | knife | 1 | For cutting |
11 | thermocouple | 1 | For temperature control |
12 | Printer keypad | 1 | For printing |
13 | Printer heater | 1 | For temperature control |
14 | Color ribbon for printer | NY800 BLACK | For printing |
25mm-100m | |||
15 | Manual for sensor | 1 | For operating manual |
16 | brush | 1 | For cleaning |
Payment items: 30% T/T as deposit and 70% T/T balance before the shipment.Machine checking is available before the shipment.
Delivery time:For standard pillow packing machine as CB-100 / 100I / 320 / 380I / 300S etc,10-15 working days;for standard big vertical packing machine,25~35 working days.
Q1:What is your company specialized in?
A1:Foshan CHUANGLIBAO PACKING MACHINE Co.,Ltd. is built in 2003,it's a professional manufacturer
of Pillow packing machine and Vertical packing machine over 10 years in Foshan,China.About 40 min from factory to Guangzhou airport.
Q2:Have you ever exported your packing machine to other countries?
A2:Yes.We have exported the machines to many other countries,like America,Austrilia,Malaysia,Mexico,
Spain,Croatia,Greece,Thailand,Vietnam,South Africa,India,Indonedia,Saudi Arabia,Jordan,Ymen,Morocco,
Turkey,South Africa,Iran,Russia ,Serbia etc.
Q3:What info you need before confirming the machine?
A3:Your product picture,
your product size(length,width,height,weight etc.),
packing type(Back seal / quad seal / 3-side seal etc),
your product samples(for testing).
Q4:We never operate this kinds of machine,how can I learn it?
A4:You can bring your technician to learn the operation in our company.There are some training lessons
about the machine operation. If you don't have the time to come us,we will send you the video and manual
for your reference.
Q5:If the machine is breakdown with unexpected problems ,what should we do?
A5:At first,you can take off the power and check the machine carefully,then restart it.
Second,operate it step by step according to the machine manual.
Third,if the problem cannot be solved by yourself,you can reflect the situation to us and we will help you
to solve it asap.If needed,our technician can service overseas.
CHUANGLIBAO has been an professional manufacturer of packing machine since 2003. We have strong research and development team, research and innovate is our aim and market is our guiding. We can research 2-3 new machines each year, and we spent more than USD $50000 for exhibition each year, we have been to Turkey, Indonesia, Malaysia, Dubai and so on, so we think we should have enough experience to help u more.
We are the second biggest packing machine supplier in China, our production is 50 sets per month, we can delivery you machine within 25 days as soon as we got your deposit. And we can send our engineer and master to your factory for machine service if you need, so we can help you in time.
