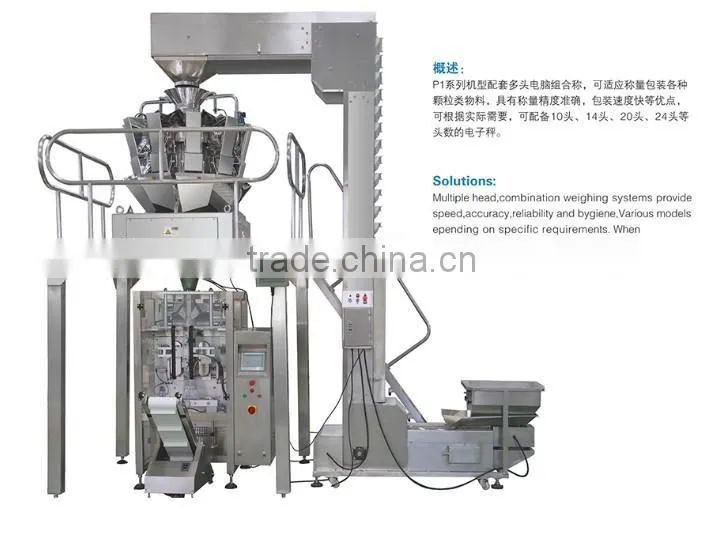

vertical automatic washing powder packing machine
Technical Specifications:
Bag size |
L (80-400) × W (80-250) mm |
Packing speed |
5-50 bags/min |
Measuring range |
max 3000 ml |
Max width of film roll |
≤520 mm |
Air consumption |
0.65 mpa |
Gas consumption |
0.4 m3/min |
Power requirement |
220 V, 50 HZ |
Machine size |
L 1150 * W 1795 * H 11650 mm |
Machine weight |
600KG |
power |
4KW |
Scope of application:
Suitable for many kinds of measuring equipments,and package different kinds of products ; such as puffy food, shrimp roll, peanut, popcorn, cornmeal, seed and sugar etc.
which shape is roll, slice and granule.
bags style:
Function Description:
- Adopted to color touch screen and high accuracy output PLC control, bag making, measuring, filling, sealing, date printing, product output in one operation.
- The control of pneumatic and power is independent, noise is low, and working is stable.
- Adopted to vacuum drawing film, less pulling resistance, bag is formed in better appearance.
- Double servo control, high accuracy position with specification size.
- Adopted to external film releasing mechanism, simple and easy to install the packaging film.
- Adjustment of bag deviation just needed to be played on the touch screen, easy to operate.
-
Close down machine framework, defending powder into inside of the machine.
Optional device :
Item
Specification
Qty(set)
Main machine
SS-4230PM
1
10-head weigher
10 heads
1
elevator
Z-shape
1
Working platform
1
forming
With the machine
1
Date printer
Regular
1
conveyor
130mm
1
Rotary table
1

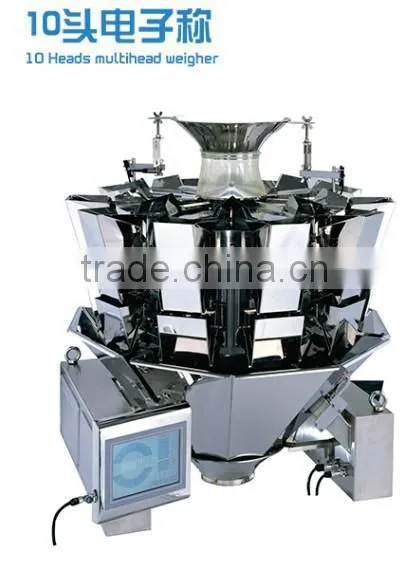

Multihead weigher:
Technical characteristics:
1.High precision data-type weighing sensor realizes precise weighing.
2.IP65 grade water-proof and dust-proof design. It’s clear with all stainless steel parts. Full sealed design prevents accumulation of material.
3.It can fine the opening and closing speed of hopper door according to the feather of items to be weighted, and prevent crushing and blocking of material.
4.With powerful digital automatic counting function.
Technical parameters:
Name |
10-head New-version |
Model |
BO-2/10-2.5 |
Hopper size |
2.5L |
Weighing range |
10-1500g |
Weighing accuracy |
±0.1-1.5g |
Weighing speed |
Max.80bpm |
Structure |
Carbon steel /Stainless steel |
Controller |
10.4” Touch screen |
Check weigher:
Applications
Apply Range: Used to detect the weight of product whether match with the target weight, meanwhile auto-selecting device picks out the unqualified products.
Conveyor belt type metal detector
AC-RCB-A-III:
Z-shaped automatic material elevator:
Platform:
Finished products conveyor:
simple photos about us:
Clients service:
1) Free consultation service before, during, and after sales;
2) Free project planning and design services;
3) Free debugging of equipment until everything is functional;
4) Free management of equipments' long distance shipping;
5) Free training of equipment maintenance and operating personally;
6) Free new production techniques and formulas;
7) Provide 1 year complete warrantee and lifetime maintenance service.
Purpose of serving: truth , responsible ,Convenient , Efficient
Provide first- class service, quality parts and technical support is the primary obligation of our commitment to customers and every employee.
Customer evaluation and satisfaction is the sole criterion of quality of service companies.The company will work closely with all areas of the business
partners, and guarantee full customer investment in product integration, aspects of the system implementation, technical support, staff training to
provide comprehensive services.And each customer will have a staff responsible for keeping track of and communicate with each other in order to
receive timely feedback products, services conditions.
Customer service Technical Support Training Service
Customer service:
The company will work with all areas of business partners to provide automated data collection program planning users,
design, configuration, installation, implementation and upgrades.The company will ensure the successful implementation
of packaging machinery products provide comprehensive and specialized services.
Technical Support:
Service Department will be responsible for the user's service and maintenance support.Through the improvement and advanced techniques,
such as technical maintenance, user support centers, systematically ensure the timeliness of service, continuity and professionalism, and provide
quality packaging machinery.
