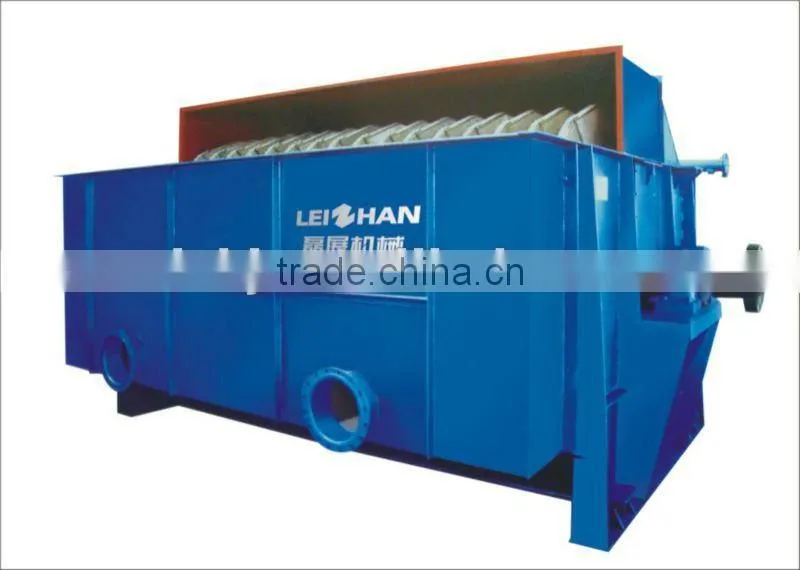

Help CenterLeizhan Disc Sludge Thickener for Paper Pulp Making Production Line
Related Products
-
Disc Filter Pulping Equipment / Paper Pulp Disc Thickener Using in Pulp MillUS$ 1,000 - 50,000MOQ: 1 Unit -
Leizhan ZNP Series Disc Thickener/Pulping Equipment/Thickening and Washing Pulp MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
ZNP Series Disc Thickener of Fluting and Kraft Paper Production LineUS$ 10 - 100,000MOQ: 1 Set
-
Leizhan Pulping Equipment ZNP Series Disc Thickener/paper Processing Equipment/paper Pulp MachineryUS$ 1 - 10,000MOQ: 1 Set
-
Disc Thickener for Waste Paper Recycle Plant/fluting Paper Making EquipmentNegotiableMOQ: 1 Set
Specifications
Sludge thicknener1.Stainless steel sector
2.White water filtrated is lower
3.Higher effciency and less space
Application of leizhan paper machine Disc sludge thickener/paper pulping production line/OCC line
Paper machine Disc refiner is mainly used to wash and thicken pulp in pulping and papermaking process.
Main specification of paepr machine Disc sludge thickener/paper pulp production line/OCC line
type |
ZNP2508 |
ZNP2510 |
ZNP2512 |
ZNP2514 |
ZNP2516 |
ZNP3510 |
ZNP3514 |
ZNP3512 |
ZNP3516 |
diameter(mm) |
Φ2500 |
Φ3500 |
|||||||
amount of disc(n) |
8 |
10 |
12 |
14 |
16 |
10 |
12 |
14 |
16 |
nominal area(m2) |
60 |
75 |
90 |
105 |
120 |
150 |
180 |
10 |
20 |
Concentration of input pulp (%) |
0.8-1.2 |
||||||||
Concentration of output pulp (%) |
3.5-4.5 |
||||||||
processing capacity ONP (t/d) |
0.9-1.2t/(m2.d) |
||||||||
processing capacity AOCC (t/d) |
1.5-2.4t(m2.d) |
||||||||
motor power(KW) |
11 |
15 |
18.5 |
22 |
30 |
||||
Working principal of paper machine Disc refiner/paper pulp production line/OCC line
Its working principle is to dewater by gravity through the level difference between pulp out of disc wire and white water in the disc. The pulp at the consistency of 0.8~1.2% enters the vat and then is attached to disc sector. The white water in the disc flows to the ends of hollow shaft through guide slot and then discharge out. Pulp attached on disc sector is knocked off by high pressure shower. The thickened pulp at the consistency 3-4% flows over the plate of adjusting valve into outlet vat where it is discharged out. The rotating speed of main shaft can be adjusted according to the required outlet consistency and capacity.

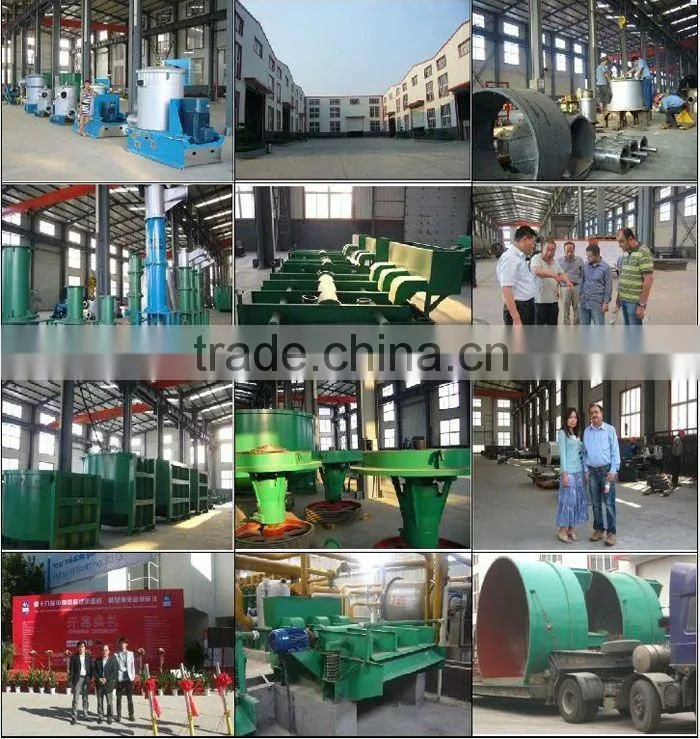

Welcome to visit our factory! welcome to contact with Ms Serina, Skype: hellers8810
Leizhan main product list for your reference
1.Chain conveyor
2.Hydra-pulper, D-type hydra-puler, Drum type hydra-pulper
3.High density de-slagging machine
4.Vibrating screen, mid consistency pressure screen, paper machine pressure screen, UV-flow pressure screen, inflow pressure screen,external flow pressure screen, center section energy saving pressure screen,fiber fractionating screen,light rejects screen,double drum pressure screen, coarse screen , fine pulp screen etc.
5.PZ series reject separator, Single-effect separating machine,, single fiber separating machine etc.
6.Pulp pump
7.Double disc refiner, high taper fine grinding machine, double disc pulp-grinding machine, conical refiner etc.
8.High taper helical propeller, square pulp pool stirrer
9.Other paper recycling machines such as grapple, cutter,drum unpacker., disc thickener, sludge dewatering machine etc.
10.Reasonable waste paper pulp making line/OCC line/paper recycling machine price
