Help CenterLeizhan ZNP Series Disc Thickener/Pulping Equipment/Thickening and Washing Pulp Machine
Related Products
-
ZNP Series Disc Thickener of Fluting and Kraft Paper Production LineUS$ 10 - 100,000MOQ: 1 Set -
Leizhan Pulping Equipment ZNP Series Disc Thickener/paper Processing Equipment/paper Pulp MachineryUS$ 1 - 10,000MOQ: 1 Set
-
Disc Thickener for Waste Paper Recycle Plant/fluting Paper Making EquipmentNegotiableMOQ: 1 Set
-
Rejects Separator for the Scrap Paper PulpNegotiableMOQ: 1 Set
-
Rejects Separator for the Scrap Paper Pulp/ Paper Converting/Waste Paper Pulp Machine/corrugated Paper Making Production LineNegotiableMOQ: 1 Set
Specifications
1.washing and thickening the low consistency2.Stainless steel sector
3.Well selling machinery

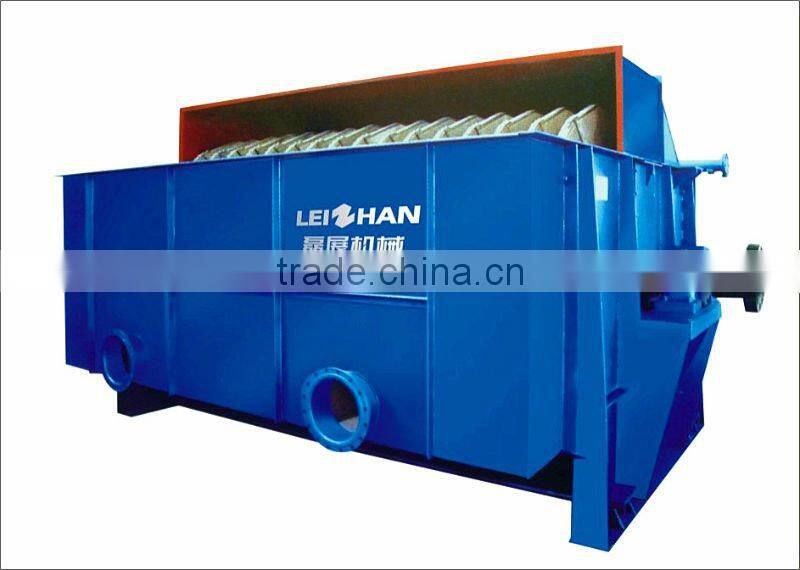

Leizhan ZNP series Disc Thickener / Pulping Equipment / Thickening and Washing Pulp Machine
Application
Used for washing and thickening the low consistency.
The operation of the design do not need vacuum or water slurry high or a leg hydraulic mostly can increase yields and ensure the stability for the equipment into a pulp flow and concentration of change are not sensitive, use a wide range, easily deal with high low degree of free pulp.
Main specification
| type | ZNP2508 | ZNP2510 | ZNP2512 | ZNP2514 | ZNP2516 | ZNP3510 | ZNP3514 | ZNP3512 | ZNP3516 |
diameter(mm) |
Φ2500 |
Φ3500 |
|||||||
| amount of disc (n) | 8 | 10 | 12 | 14 | 16 | 10 | 12 | 14 | 16 |
| nominal area (m2) | 60 | 75 | 90 | 105 | 120 | 150 | 180 | 10 | 20 |
| concentration of input pulp (%) | 0.8-1.2 |
||||||||
| concentration of output pulp (%) | 3.5-4.5 |
||||||||
| processing capacity ONP (t/d) | 0.9-1.2t/(m2.d) |
||||||||
| processing capacity Aocc (t/d) | 1.5-2.4t(m2.d) |
||||||||
| motor power (Kw) | 11 | 15 | 18.5 | 22 | 30 | ||||
Other paper pulp making machine

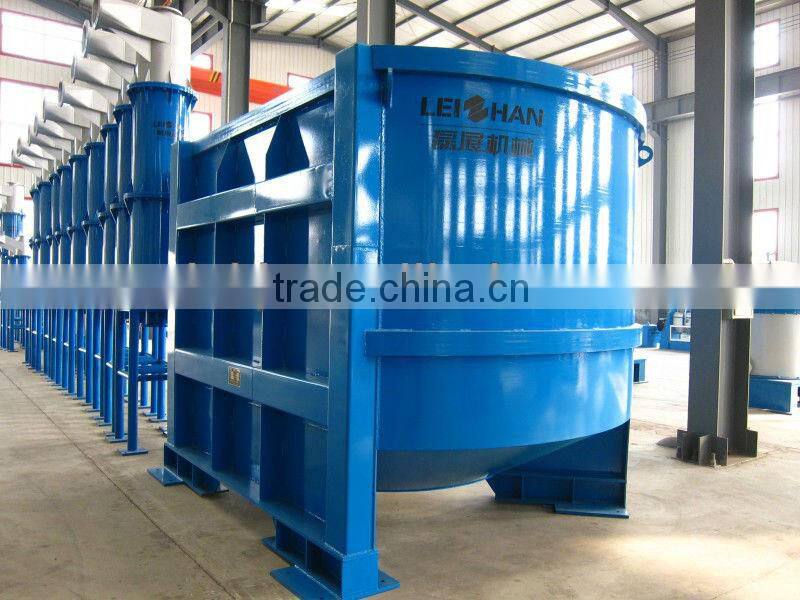

D type hydrapulper

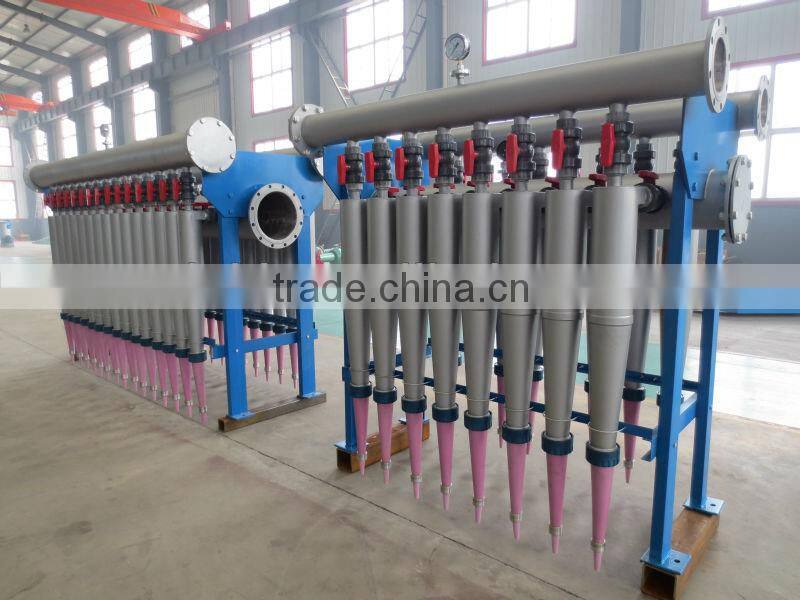

Low density cleaner

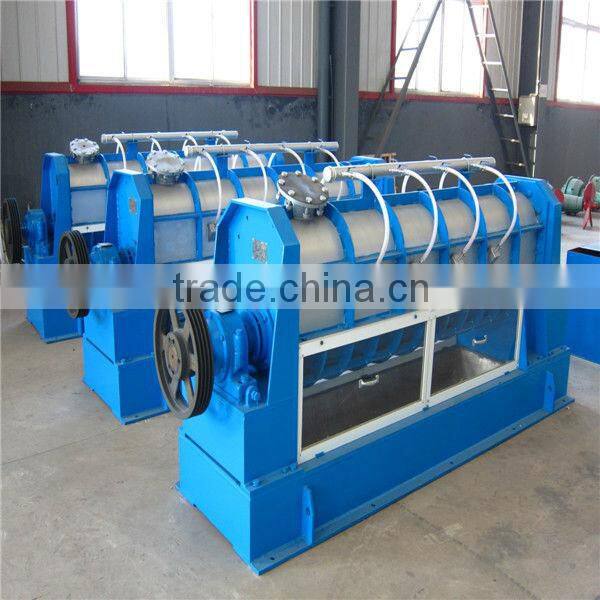

Pressure screen
Reject separator
Delivery site
1.Pre-sales Service
- Offering comprehensive technical and business consultation services;
- Proposing the most suitable scheme and equipment for our clients;
- Designing and fabricating targeted products according to the special requirements of clients;
- Training periodically high qualified service technician.
2.After-sales Service
- Highly inspecting equipments in every working procedure, quality comes first;
- Fast & Safe Delivery;
- Assisting our clients for foundation construction of equipments;
- Dispatching engineers to install and debug equipments;
- Training the first-line operators on site;
- Regularly visit clients to solve production problems;
- Providing life-long maintenance service;
- Providing technical exchanging;
Zhengzhou Leizhan Technology Paper Machinery Co.,LTD is a professional manufacturer with more than 30 years manufacturing experience in making complete set of screening, impurity removal, pulping and refining equipment. Our company is located in Zhengzhou which is the hometown of machinery in Henan Province. We have more than 200 staffs including 50 engineering technicians which can be your best technical support. With high quality products and perfect pre-sale and after-sale service, we have won lots customers from all over the world.
Factory show
Workshop
Customers visit our factory
Exhibition
Main products for paper pulp making
Paper machine
Paper making production lines we can provide
Waste paper pulp machine production line
Automatic corrugated box production line
Corrugated paper making production line
Fluting paper pulp making production line
Coated White Board Paper production line
Honeycomb Paper making production line
testliner paper making production line
Paper plate making production line
tissue paper making production line
toilet paper making machine line
kraft paper making machine line
boxboard paper machine line
Paper coating machine line
Napkin paper machine line
OCC line
Welcome to visit our factory. Any questions, contact us please!
What do you offer?
A: We can offer the whole pulp and paper production line. From factory design to machine installation and training, our company can supply for you all.
Are your a manufacturer?
A: Yes. Of course we are. We are spealized in pulp & paper equipment manufacturing in China for more than 30 years. There are about 50 paper mills near our factory and most of them are using our machines. So, welcome to visit our factory and I believe you will be satisfied with our products.
What's your advantages?
A: We have more than 30 years experience in the field of papermaking industry.
20000 square meters workshop with more than 200 staffs including 50 engineers.
ISO9001:2000 and BV certification.
Strict quality control of every procedure
