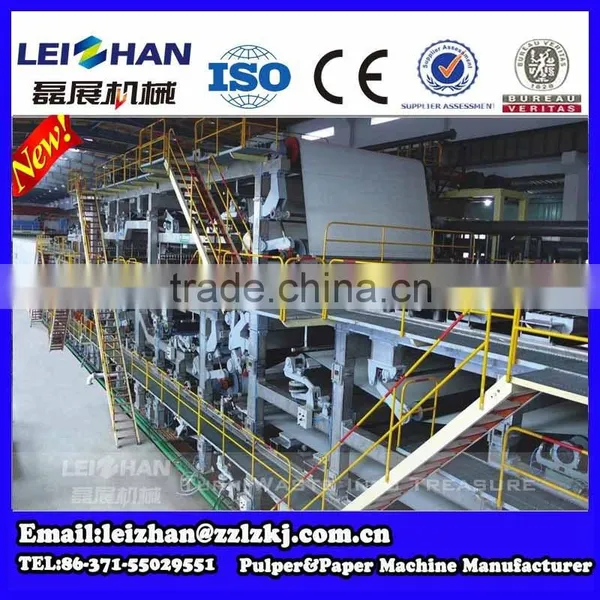

Brown kraft paper making machine/ corrugated paper machine

Name: Brown kraft paper making machine/ corrugated paper machine
Brand: Leizhan
Price: USD $18,000 - 100,000 / Set

FOB Price

USD $18,000 - $100,000 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port Qingdao Shanghai Tianjin
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Product Type:	Paper Plate Machine	Processing Type:	Laminating Machine
Place of Origin:	Henan, China	Brand Name:	Leizhan	Model Number:	1092-4400
Voltage:	380/480v	Power(W):	Up to each type	Dimension(LWH):	Up to each type
Weight:	Up to each type	Certification:	CE	Warranty:	1 year
After-sales Service Provided:	Engineers available to service machinery overseas

Packaging Details

High Speed Corrugated Paper Machine to be packed in strong and sound seaworthy packing capable of standing tropical climatic conditions.
We also respect your demands in packing terms and details.
Additional sea & air worthy export packaging will be available if required, at additional costs.

Product Description

Brown kraft paper making machine/ corrugated paper machine

Product Description

Corrugate Paper Machine / Kraft Paper Making / Paper Recycling Machine Prices

Raw materials

High speed corrugated paper making machine is mainly used for paper making (recycling paper making machine),such as kraft paper making, corrugate cardboard paper making , fluting paper making and so on . we can offer the whole line of paper making.

Application:

High speed corrugated paper machine consists of headbox, fourdrinier wire forming, press section, drying section, gas hood section, sizing machine, calender, mechanical drive section, compressed air system, lubrication system, hydraulic pressure system, basic section, reeling machine.

Main frames of corrugate paper machine:

Headbox

Qty.: 2 sets

Type: Air cushion type headbox

Lip width: 3700mm

Starching concentration: 0.6~0.9%

Headbox cross direction basic weight difference less than: ±1.5%

Overflow percentage: 2~5%

Cone pulp feeding main pipe flow: 10~15%

Wire section

Type: fourdrinier wire

Designed wire tension: 7KN/m

Wire width: 3850mm

Wire table length: bottom wire table 20m, top wire table 7m.

Wire elongation: 1.5%

After wire dryness: 20-22%

Press section

Forcing method: hydraulic pressure forcing

After press paper dryness: 46-48%

Roll dynamic balance: G2.5

5KN/m Designed felt tension: 5KN/m

Requirement of bearing: large diameter press roll use NSK bearing. Others use ZWZ bearing products.

Roll material: stainless steel roll shell

Drying section

Dry wire designed tension: 4kgf/cm

Finished paper dryness: 92-94%

Working pressure 0.3Mpa

Cylinder surface roughness ≤0.8micrometer

Working pressure 0.5Mpa

Diameter/roll surface length:

Sizing machine

Sizing concentration: ~8%

Designed lineal pressure: 50kN/m

Operating side shaft: 45#

Blade: EP

ways of pressure: pneumatic pressurizing

Main equipments of corrugate paper machine

No.	equipment	QTY
1	2400mm corrugate paper making machine	1 set
2	dryer can Exhaust hood	1 set
3	850axial flow ventilator	3 sets
4	1500mm Pressure type mesh vat	1 set
5	Model 15roots pump	1 set
6	suction box	3 sets
7	2400mm Winding machine	1 set
8	calender	1 set
9	Rewinding machine	1 set
10	5m3 high consistency Hydrapulper	2 sets
11	Fiber separator	1 sets
12	Pressure screen	1 set
13	2m2High frequency vibration screen	2sets
14	450Double disk pulp refiner	3 sets
15	12m2 Pulp thickener	1 set
16	Φ700mmThruster	6 sets
17	4 inch Pulp pump	4 sets
18	6 inch Pulp pump	6 set
19	8 inch Pulp pump	4 set
20	Japan Sanken Control cabinet	1 set
21	air pump cabinet	1 set
22	Work table	1 set

Main feature

1.Automatic trimming,improves the production efficiency and quality greatly.

2.Pneumatic belt feed and paper rewinding and every axis has a separate tension

adjustment mechanism.

3.Production equipment products with high automation, simple operation and high

efficiency.

4.Has been for the user's preferred toilet paper production equipment products.

Corrugated Paper

Case Show

Whole Stock Preparation Line In Egypt

Project: Whole set of 150t/d Kraft Liner, Fluting, White board paper, T-paper Stock Preparation Line.

Customer company: Egypt Al- Karma Paper Industries

Address: Sadat city, Egypt.

Time: 2015

Working Site

Project: 600T/D T-Paper, Fluting&Testliner Paper production line .

Project: Toilet Tissue Roll Making Project Egypt.

Company Profile

---About Leizhan

Zhengzhou Leizhan Technology Paper Machinery Co.,LTD is a professional manufacturer with more than 30 years manufacturing experience in making complete set of screening, impurity removal, pulping and refining equipment.

Our company is located in Zhengzhou which is the hometown of machinery in Henan Province. We have more than 200 staffs including 50 engineering technicians which can be your best technical support.

---Trading Nation

We have exported to many foreign countries,for example, Russia, Egypt, Iran, Argentina, Uzbekistan, Turkmenistan, Burma, Vietnam, Pakistan etc. And we are looking forward to establish cooperation relationship with friends all around the world.We warmly welcome you on-the-spot investigation!

Our Services

Acceptance standard

Unless stipulated in the technical documents accordingly, technology acceptance standards of designed main parts are in accordance with relevant state departments issued current relevant standards.

providing main parts technology acceptance standard of technical design.

Technical service

During paper machine installation, We cooperate with buyer for technological improvement to reach desired results.

We explains paper machine performance, structure and operation to buyer related people for free.

Quality guaranteed

We makes sure paper machine achieve promised performance with correct installation, commissioning, normal operation and maintenance.
In warranty period, for quality problem, we repair and replace defective parts for free(except quick-wear part).

Welcome to visit us, we are located in Zhengzhou city, Henan province, We will pick you up at air port.

FAQ

Q: What's your advantages?

A: We have more than 30 years experience in the field of papermaking industry. 20000 square meters workshop with more than 200 staffs including 50 engineers.

Q: What are your company's flagship products?

A: Our pulp equipment is advanced like screening, impurity removal, pulping and refining equipment.

Q: Where is your company's advantage in the industry ?
A: We have 30 years experience, We are leading in terms of pulping equipment,

in addition, we provide a more personalized service.

Company Profile

Zhengzhou Leizhan Technology Paper Machinery Co., Ltd.

Zhengzhou Leizhan Technology Paper making machinery Co.,Ltd is a professional manufacturer of pulp and papermaking equipments, which engaged in research and development, manufacture and sale, now has successfully developed the marketable high consitency pressure screen, inflow pressure screen and D type Hydrapulper, and become the leader manufaturer in this area for the domestic market.
This company is located in Zhengzhou City, Henan Provice, covering 40 thousand square meters. It has total assets of 50 million, over 200 employees including 10 senior engineers. This company has been certified for State ISO9001 Quality System Certification and owns 14 patents. Leizhan is designed with low carbon enviromental protaction, pays more attention to the international technical cummunication and cooperation, The main series of the products are waste paper delivery, waste paper bale breaking and screening, waste paper pulping, heavy slag cleaning, screening, deinking, concentration, heat dispersion, pulping, mixing and pulp conveying etc.
Leizhan has processing and testing equipment like CNC cutting machine, sand blasting system, vertical and horizontal CNC lathe, planer milling machine, vertical boring machine, automatic continuous welding machine, CNC bending machine, CNC shearing machine, veneer reeling machine, 1200 tons of press machine, high speed dynamic balance correction machine, assembly test table etc.
By more than 30 year's development, facing the new market condition and competition, we will improve and strengthen our brand strategy continuously, regard quality and service as the foundation of long-run development, by implementing the innovation of technology and management, based on pulper equipment, we strive forward to the international stage actively.

Contact Us

Zhengzhou Leizhan Technology Paper Machinery Co., Ltd.: Contact nameleizhan company; Phone86-371-55129198; AddressHetun village, Dawei town, Xinmi city, Henan Provience Zhengzhou,Henan
