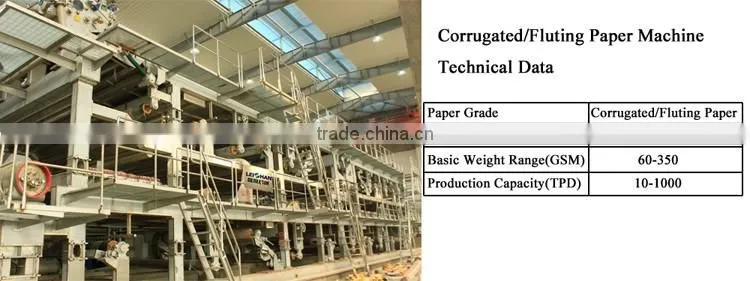

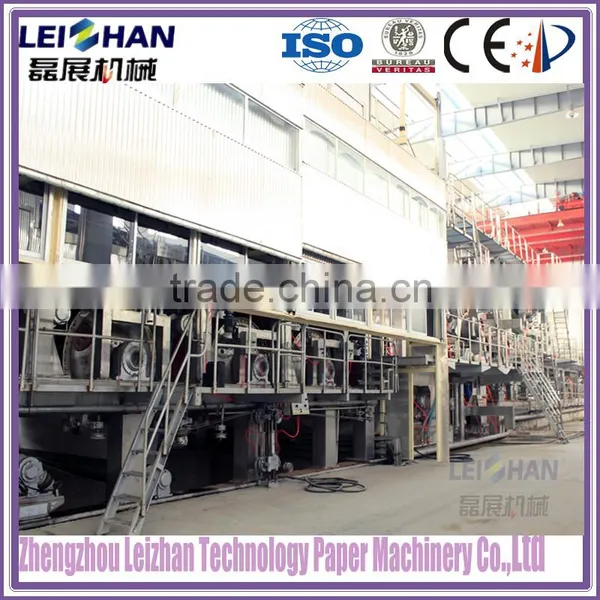

China manufacturer paper mill single face corrugated machine
Main technical data:
1. Paper type: kraft paper
2. Gram weight: 80-200g/m2
3. Trimmed width: 3200mm
5. Designed speed: 100-180m/min high speed
6. Production capacity: 100t/d
7. Dryness:
After wire section: ≥18-21%
After press section: ≥38-42%
Paper product dryness: 90%-92%
8. Finished product ratio: 96%
2. Features of this type of paper making machine
Waste paper recycling processing kraft paper machine, Saturating Kraft machine is equipped with dewatering element according to max.
The production capacity can be assured. When the paper making basic weight is changing, the vacuum degree of vacuum dewatering element can be adjusted to make sure the paper dryness.
3. MAIN SECTIONS
2 |
Main structure |
|
||||||
|
1, |
Headbox |
|
|||||
|
2, |
Wire section |
|
|||||
|
3, |
Press section |
|
|||||
|
4, |
Drying section |
|
|||||
|
5, |
Gas hood section |
|
|||||
|
6, |
Sizing machine |
|
|||||
|
7, |
Calender |
|
|||||
|
8, |
Reeling machine |
|
|||||
|
9, |
Mechanical drive |
|
|||||
|
10, |
Compressed air system |
|
|||||
|
11, |
Lubrication system |
|
|||||
|
12, |
hydraulic pressure system |
|
|||||
|
13, |
Basic section |
|
|||||
|
14 |
Main electrical transmission |
||||||
Wire section:
It consists of headbox, fourdrinier part, basic section, mechanical drive and electrical control.
Press section:
Type: two large diameter press
The second press top roll is artificial stone roll. Others are blind press. All of the press rolls are coated with rubber.
Designed tension of press felt: 6KN/m.
Drying part: paper making machine price
This part is equipped with 22 dryer cylinder with diameter of 1800mm. It is divided into three groups. Number 1, 2, 15 and 16 are dryer cylinder with chromeplate treatment.
Designed dry wire tension: 5KN/m.
Boiler of our kraft paper making machine :
teat liner paper /kraft paper machine headbox:
The step diffusion pulp inlet is made of stainless steel 304. organic glass 3 level steps spring back pulp spread. Box is welded stainless steel. 2 stainless steel evener roll. Top and bottom lip are made of stainless steel 316L. Top lip can be adjusted totally or partly.
Pulp equipment in paper recycling production line :(click the picture to see more details )
1.Pre-sales Service
- Offering comprehensive technical and business consultation services;
- Proposing the most suitable scheme and equipment for our clients;
- Designing and fabricating targeted products according to the special requirements of clients;
- Training periodically high qualified service technician.
2.After-sales Service
- Highly inspecting equipments in every working procedure, quality comes first;
- Fast & Safe Delivery;
- Assisting our clients for foundation construction of equipments;
- Dispatching engineers to install and debug equipments;
- Training the first-line operators on site;
- Regularly visit clients to solve production problems;
- Providing life-long maintenance service;
- Providing technical exchanging;
Factory show
Exhibition
Paper making production lines we can provide
Waste paper pulp machine production line
Automatic corrugated box production line
Corrugated paper making production line
Fluting paper pulp making production line
Coated White Board Paper production line
Honeycomb Paper making production line
testliner paper making production line
Paper plate making production line
tissue paper making production line
toilet paper making machine line
kraft paper making machine line
boxboard paper machine line
Paper coating machine line
Napkin paper machine line
OCC line
