Hydrapulper sieve plate/ paper pulp machine part/ hydrapulper part
- 100 Set / Sets per Month
- Qingdao Tianjin Shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Product Type: | Other, pulping equipment | Processing Type: | Other, waste paper pulverizing |
Place of Origin: | Henan, China | Brand Name: | Leizhan(Hongda before) | Model Number: | D5 |
Voltage: | 380 | Power(W): | Motor power:75-450(Kw) | Dimension(L*W*H): | 2700x2500X1950(mm) |
Weight: | 1.5t | Certification: | Other, BV | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
wooden case outside,carton inside or according to customer needs
Product Description

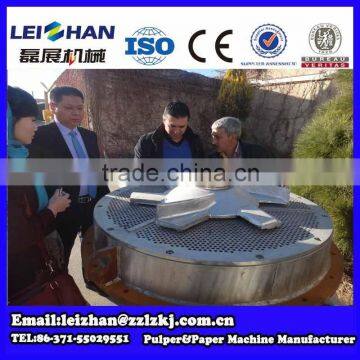

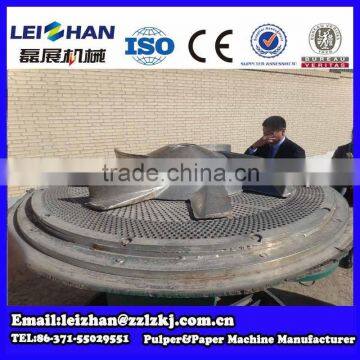

Hydrapulper sieve plate/ paper pulp machine part/ hydrapulper part
1.Application

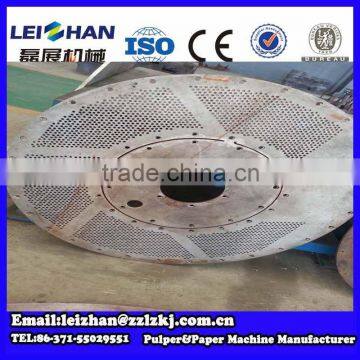

304 Stainless steel sieve plate used for hydrapulper with high quality and good price.
2.Brief introduction
D type hydrapulper‘s rotor deviates from the center of tank bottom and thus makes the paper materials contact the rotor more quickly and more frequently.Traditional waterpower paper pulp machine makes a rotary flow unimpeded and paper materials move to the center of rotor from joining according to spiral trajectory. While D type hydrapulper has changed this way,making the materials contact the rotor more quickly,which can shorten the paper materials handling time.So the production capacity increase immediately without any increase in power and volume.
Customers
3.Features

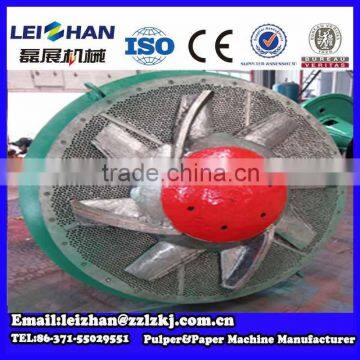

1 .It adopts fox rotor so it takes less power and has higher pulp efficiency.
2.The rotor and screen plate are above the slot base, forming a low pressure area around the screen plate, which reduces the impurities contact with the cutter and screen plate to prolong the service life of cutter and screen plate.
3. Cutter blade is equipped between cutter and screen plate to prevent waste like wire, weavings twining and lower the running current.
4. Cleaning function, easy to start the equipment.

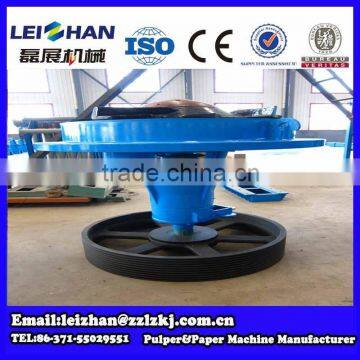

5. Three sets of bearings are equipped in the transmission system to prolong the service life and reduce maintenance costs.
6.D type hydrapulper is equipped with European standard pulley to shorten maintenance time, improve working efficiency and reduce operating costs.
7.Hydrapulper with volume more than 25m³ is equipped with drive support.
4.Main specification
Type | ZDSD23 | ZDSD24 | ZDSD25 | ZDSD26 | ZDSD27 | ZDSD28 | ZDSD29 | ZDSD30 | ZDSD31 | ZDSD32 |
Normal Volume(m3) | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 |
Concentration (%) | 3-5 | |||||||||
Product capacity(t/d) | 30-60 | 40-100 | 80-120 | 140-180 | 180-230 | 230-280 | 270-320 | 300-370 | 350-400 | 400-450 |
Motor power(KW) | 75 | 110 | 160 | 185 | 220 | 280 | 315 | 355 | 400 | 450
|
Working site
Whole Stock Preparation Line In Egypt
Project: Whole set of 150t/d Kraft Liner, Fluting, White board paper, T-paper Stock Preparation Line.
Customer company: Egypt Al- Karma Paper Industries
Address: Sadat city, Egypt.
Time: 2015
Working Site
Project: 600T/D T-Paper, Fluting&Testliner Paper production line .
Project: Toilet Tissue Roll Making Project Egypt.
---About Leizhan
Zhengzhou Leizhan Technology Paper Machinery Co.,LTD is a professional manufacturer with more than 30 years manufacturing experience in making complete set of screening, impurity removal, pulping and refining equipment.
Our company is located in Zhengzhou which is the hometown of machinery in Henan Province. We have more than 200 staffs including 50 engineering technicians which can be your best technical support.
---Trading Nation
We have exported to many foreign countries,for example, Russia, Egypt, Iran, Argentina, Uzbekistan, Turkmenistan, Burma, Vietnam, Pakistan etc. And we are looking forward to establish cooperation relationship with friends all around the world.We warmly welcome you on-the-spot investigation!
Acceptance standard
- Unless stipulated in the technical documents accordingly, technology acceptance standards of designed main parts are in accordance with relevant state departments issued current relevant standards.
- providing main parts technology acceptance standard of technical design.
Technical service
- During paper machine installation, We cooperate with buyer for technological improvement to reach desired results.
- We explains paper machine performance, structure and operation to buyer related people for free.
Quality guaranteed
- We makes sure paper machine achieve promised performance with correct installation, commissioning, normal operation and maintenance.
- In warranty period, for quality problem, we repair and replace defective parts for free(except quick-wear part).
Welcome to visit us, we are located in Zhengzhou city, Henan province, We will pick you up at air port.
Q: What's your advantages?
A: We have more than 30 years experience in the field of papermaking industry. 20000 square meters workshop with more than 200 staffs including 50 engineers.
Q: What are your company's flagship products?
A: Our pulp equipment is advanced like screening, impurity removal, pulping and refining equipment.
Q: Where is your company's advantage in the industry ?
A: We have 30 years experience, We are leading in terms of pulping equipment,
in addition, we provide a more personalized service.
Company Profile
Zhengzhou Leizhan Technology Paper making machinery Co.,Ltd is a professional manufacturer of pulp and papermaking equipments, which engaged in research and development, manufacture and sale, now has successfully developed the marketable high consitency pressure screen, inflow pressure screen and D type Hydrapulper, and become the leader manufaturer in this area for the domestic market.
This company is located in Zhengzhou City, Henan Provice, covering 40 thousand square meters. It has total assets of 50 million, over 200 employees including 10 senior engineers. This company has been certified for State ISO9001 Quality System Certification and owns 14 patents. Leizhan is designed with low carbon enviromental protaction, pays more attention to the international technical cummunication and cooperation, The main series of the products are waste paper delivery, waste paper bale breaking and screening, waste paper pulping, heavy slag cleaning, screening, deinking, concentration, heat dispersion, pulping, mixing and pulp conveying etc.
Leizhan has processing and testing equipment like CNC cutting machine, sand blasting system, vertical and horizontal CNC lathe, planer milling machine, vertical boring machine, automatic continuous welding machine, CNC bending machine, CNC shearing machine, veneer reeling machine, 1200 tons of press machine, high speed dynamic balance correction machine, assembly test table etc.
By more than 30 year's development, facing the new market condition and competition, we will improve and strengthen our brand strategy continuously, regard quality and service as the foundation of long-run development, by implementing the innovation of technology and management, based on pulper equipment, we strive forward to the international stage actively.
