Paper making 304 stainless steel screen basket

  Screen Basket

Hot selling screen basket is perforation/hole or slot/wedge wire structure designed to achieve high efficiency screening of recycled, mechanical, and paper pulp fiber.

Features

• Mechanically held wires, built in the round
• Rugged, high mechanical strength
• Available for outward and inward flow screens
• Precise slot-width tolerance

Benefits

• High shive and stickies removal efficiency
• Maximized flow capacity
• Extended operating life
• Application flexibility

Specifications

       1. Materials: SS201, 304, 316, 316L

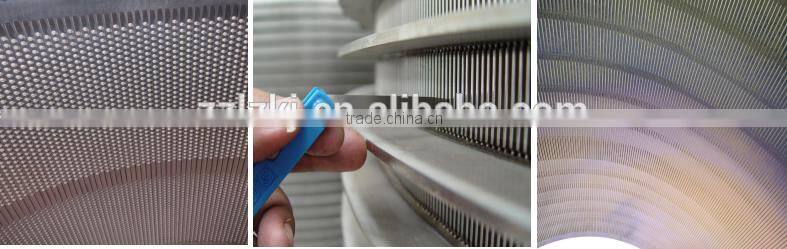

       2. Structure: perforation/hole or slot/wedge wire

       3. Be suitable for pressure screen

       4. Hardness: chrome-plated 200-250 micron, electrical polished

       •  Standard perforation diameter: more than φ1.2mm

            Plate thickness:6mm-12mm

       •  Screen slot: more than 0.1mm

           Plate thickness: 6mm-12mm

       •  Advanced technology, high machining accuracy, long service life

          Bar coating guarantee more than 0.20 mm

Pressure screen

Usage:

Pressure screen is used for coarse and fine screening of recycled pulp before paper machine.

Types

1. ZNS series mid consistency pressure screen

2. NLS series inflow pressure screen

3. UV series up-flow pressure screen

4. SG series double-drum pressure screen

Zhengzhou Leizhan Technology Paper Machinery Co.,LTD is a professional manufacturer with more than 30 years manufacturing experience in making complete set of screening, impurity removal, pulping and refining equipment.

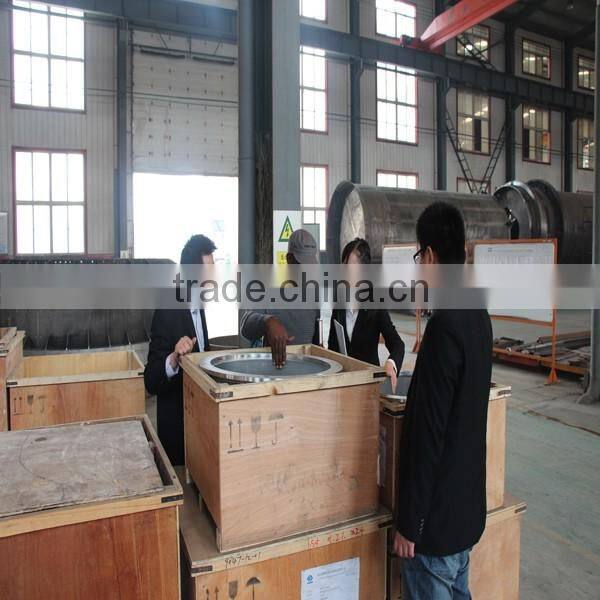

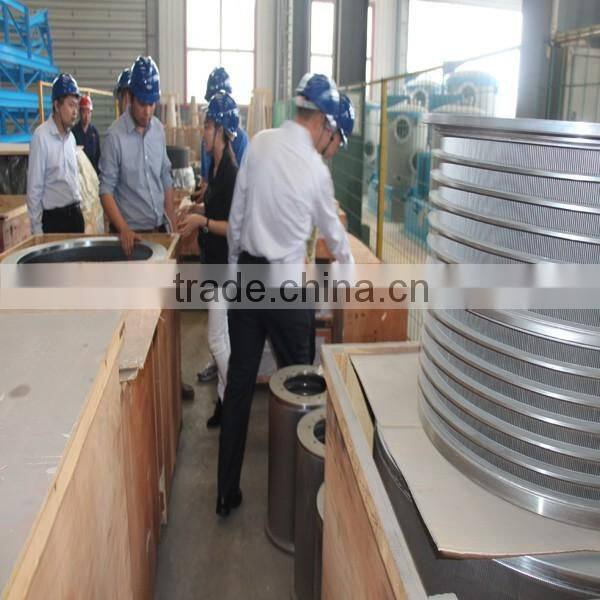

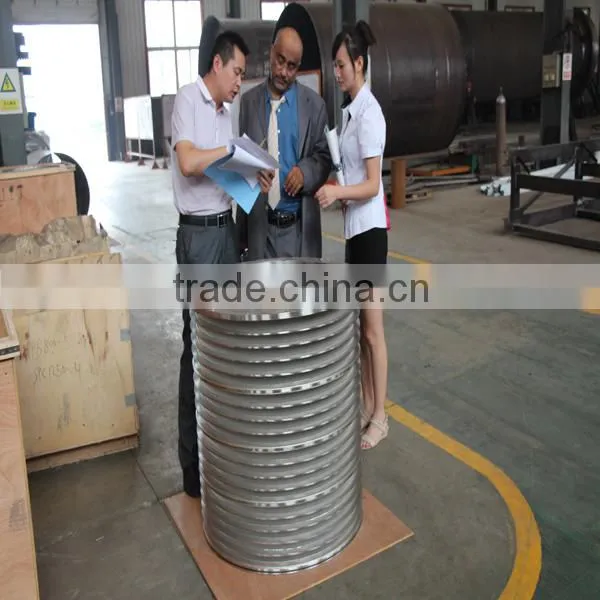

Customers visit our factory

Exhibitions

Main products for paper pulp making

Pre-sales Service

• Offering comprehensive technical and business consultation services;
• Proposing the most suitable scheme and equipment for our clients;
• Designing and fabricating targeted products according to the special requirements of clients;
• Training periodically high qualified service technician.

After-sales Service

• Highly inspecting equipments in every working procedure, quality comes first;
• Fast & Safe Delivery;
• Assisting our clients for foundation construction of equipments;
• Dispatching engineers to install and debug equipments;
• Training the first-line operators on site;
• Regularly visit clients to solve production problems;
• Providing good life-long maintenance service;
• Providing technical service with a technical service team.
