Inflow pressure screen for fluting paper/test liner production line
- 500 Set / Sets per Month
- Shanghai Tianjin Qingdao
- T/T Credit Card
- ZLS heating screw conveyor
- China ZLS heating screw conveyor machine for paper pulp making
- advanced design heating screw conveyor machine
- D Type Hydrapulper ZDSD Series Pulper pulping equipment for pulp and paper making plant
- D Type Hydrapulper /Vertical Hydrapulper for pulp and paper mill
- Pulp making machine D Type Hydrapulper for paper making industry
Product Details
Type: | Pulping Equipment | Computerized: | No | Place of Origin: | Henan, China |
Brand Name: | Leizhan | Model Number: | ZSL |
Packaging Details
Standard Export packing:Wooden case also can pack as customers request
Product Description

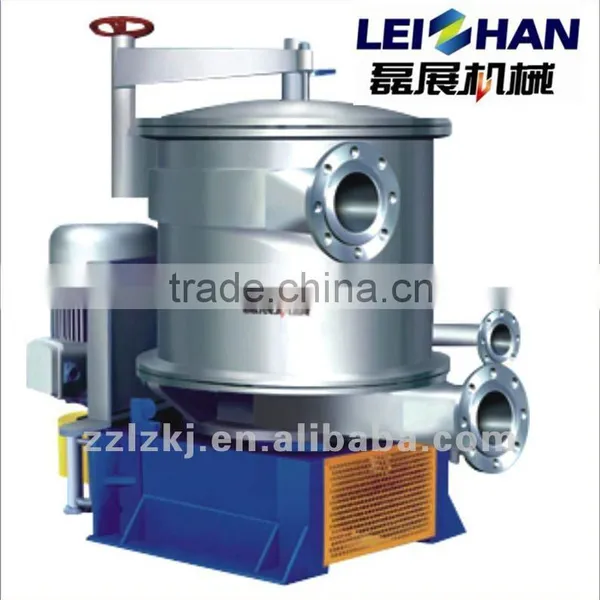

Leizhan ZSL series Inflow pressure screen of paper machine:
Product details:
The equipment is used for fine screening before paper machine. It is also used for screening the chemical pulp and waste paper pulp.
Design features:
1.Certification:ISO9001
2.Power: 18.5~75Kw
3.Less Energy Consumption
4.High Efficiency and Few Tailings
Separate the impurity from the fiber efficiency to avoid slot pluging in the condition of proper flow & low plusing force;
It is more suitable to be as pre-net screen with less consistency than 1.2%;
Its performance can promote the paper machine to be in proper running with less broken paper.
Great output with more long fiber; lower power consumption; high screening efficiency with less rejects
.
Main specification:
Type | ZSL0.6 | ZSL1.2 | ZSL2 | ZSL3 | ZSL3.5 | ZSL4.5 |
Screen Area (m2) | 0.6 | 1.2 | 2 | 3 | 3.5 | 4.5 |
Slot width (mm) | 0.25-0.55 | |||||
Diameter of hole(mm) | Φ1.2-Φ2.0 | |||||
Concentration of Input Pulp(%) | 0.3-0.8 | |||||
Product Capacity(t/d) | 14-45 | 25-90 | 55 | 150 | 60-300 | 100-50 |
Motor power (Kw) | 18.5 | 22 | 37-45 | 45-55 | 55 | 75 |
Company Profile
Zhengzhou Leizhan Technology Paper making machinery Co.,Ltd is a professional manufacturer of pulp and papermaking equipments, which engaged in research and development, manufacture and sale, now has successfully developed the marketable high consitency pressure screen, inflow pressure screen and D type Hydrapulper, and become the leader manufaturer in this area for the domestic market.
This company is located in Zhengzhou City, Henan Provice, covering 40 thousand square meters. It has total assets of 50 million, over 200 employees including 10 senior engineers. This company has been certified for State ISO9001 Quality System Certification and owns 14 patents. Leizhan is designed with low carbon enviromental protaction, pays more attention to the international technical cummunication and cooperation, The main series of the products are waste paper delivery, waste paper bale breaking and screening, waste paper pulping, heavy slag cleaning, screening, deinking, concentration, heat dispersion, pulping, mixing and pulp conveying etc.
Leizhan has processing and testing equipment like CNC cutting machine, sand blasting system, vertical and horizontal CNC lathe, planer milling machine, vertical boring machine, automatic continuous welding machine, CNC bending machine, CNC shearing machine, veneer reeling machine, 1200 tons of press machine, high speed dynamic balance correction machine, assembly test table etc.
By more than 30 year's development, facing the new market condition and competition, we will improve and strengthen our brand strategy continuously, regard quality and service as the foundation of long-run development, by implementing the innovation of technology and management, based on pulper equipment, we strive forward to the international stage actively.
