D Type Hydrapulper /Vertical Hydrapulper for pulp and paper mill

  Description of D Type Hydrapulper

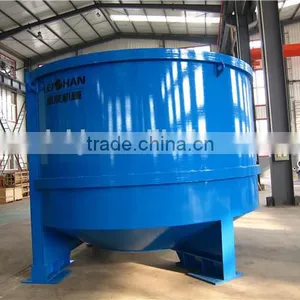

       Model ‘D’ Type Hydrapulper is used for continuously breaking waste paper. The tub adopts Model DR’ structure, rotor contacts with pulp frequently, so the breaking time is shortened greatly.

Model “D” hydrapulper, hydrapurgerⅡ, drum screen, ragger and grapple make up of continuous pulping and discharging system. This system is used for processing OCC, AOCC, etc. The plastics, styrene and other light and heavy rejects can be discharged from the tub before being broken and flow through the screen plate, so the production and pulp quality are improved.

Semi-finished products:

Main features of D Type Hydrapulper

1.New type energy-saving VOKES rotor strengthens hydraulic circulation and fiber relief.

2. D type structure changes slurry flow ways, make contact between pulp and rotor more quick and frequent. The mechanical action is enhance, pulping time is shortened so that the capacity is improved.

3. Pulp chamber of rotor is higher than the undersurface of pulper barrel, form a low pressure area around rotor to collect heavy impurities, reduce wear to cutterhead and sieve plate. So that can prolong the rotor and sieve plate service life .

4. Adjustable gap between rotor and sieve plate ensures the pulping effect.

5. When D type hydrapulper work with hydrapurger, drum screen, ragger, rope cutter and grapple and form continuous pulping and deslagging system, the large light and heavy impurities in pulper can be rejected in time,which avoid pulping the impurities, reduce the following equipment burden. At the same time, it take less time to stop and clean,improve the whole system dealing capacity.

Main models of D Type Hydrapulper for pulp and paper mill

 Parts used in D Type Hydrapulper for pulp and paper mill

There maybe used continuous pulping system, the flowchart diagram as below:

Visitors

    The package of  M.C. Pressure Screen/ Coarse Screen is standard export wooden case, water-proof and anti-corrusion. If any specific requirement for the package, just tell us.

Services:

1.Pre-sales Service S

D Type Hydrapulper

•  Offering comprehensive technical and business consultation services;
•   Proposing the most suitable scheme and equipment for our clients;
•   Designing and fabricating targeted products according to the special requirements of clients;
•   Training periodically high qualified service technician.

2.After-sales Service

D Type Hydrapulper

•   Highly inspecting equipments in every working procedure, quality comes first;
•   Fast & Safe Delivery;
•   Assisting our clients for foundation construction of equipments;
•   Dispatching engineers to install and debug equipments;
•  Training the first-line operators on site;
•   Regularly visit clients to solve production problems;
•   Providing life-long maintenance service;
•   Providing technical exchanging;
