High performance wire mesh machine
Chapter One:Technical Parameter
High performance wire mesh machine
1. Output paper: kraft paper, corrugated paper
2. Output weight: 90-150g/m2
3. Net paper width: 2400mm
4. Design speed: 150m/min
5. Working speed: 80-120m/min
6. Capacity: 25-30 T/D
7. The gauge: 3200mm
8. Pressure type: pneumatic pressure device
9. Driving type: use AC frequency conversion,and driving by step
10. Machine design: squaring box type, including left and right hand machine, high speed running
in safe and safety environment.
11. Layout type: Headbox——fourdrinier wire part ——2 main pressing part ——1Φ2500mm dryer——
1Φ2500mm dryer—— 3 Φ1500mm dryers——sizing machine—— 6 Φ1500mm dryers——paper winding
machine ( right hand machine)

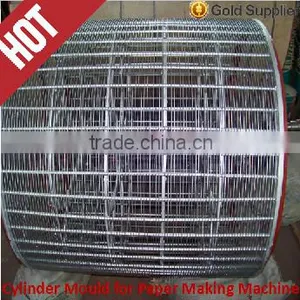

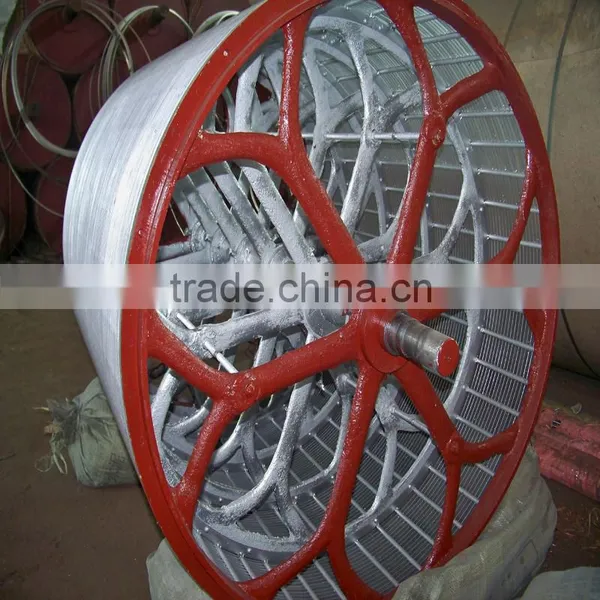

Cylinder mould/ wire mesh machine
Chapter two: Technical design and requirement for the water, electricity, air and vapor
1.Technical design: Pulping, paper making and processing equipment adopt one-stop process design.
This advanced design occupies small space for convenient operation and management. It has high security
and automatization degree, and can provide you high production with steady quality.
2.requirement for the water,electricity, air and vapor
Requirement for the electrical source:
High voltage: AC10000V±10%
Low voltage: AC380V 220V±10%
Frequency: 50HZ±1%
Operated with compressed air:
Dielectric pressure: (aire supply)0.6-0.7Mpa
The highest temerature: 35°C
Quality: need filtrating
Working air pressure: above 0.6Mpa
3. Compressed air for the meter:
Dielectric pressure: 0.5-0.6Mpa
The highest temerature: 35°C
Quality: filtrated, unoiled and arefaction
Working air pressure: above 0.5Mpa
4. Branch water and primary water: clear and colorless water without sand, neutral PH scale.
5. Vapor:
working pressure: 0.3-0.4Mpa
Testing pressure: 0.8Mpa

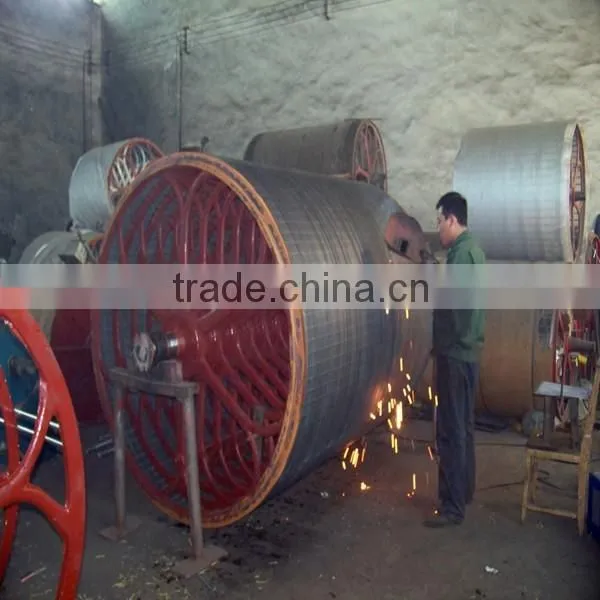

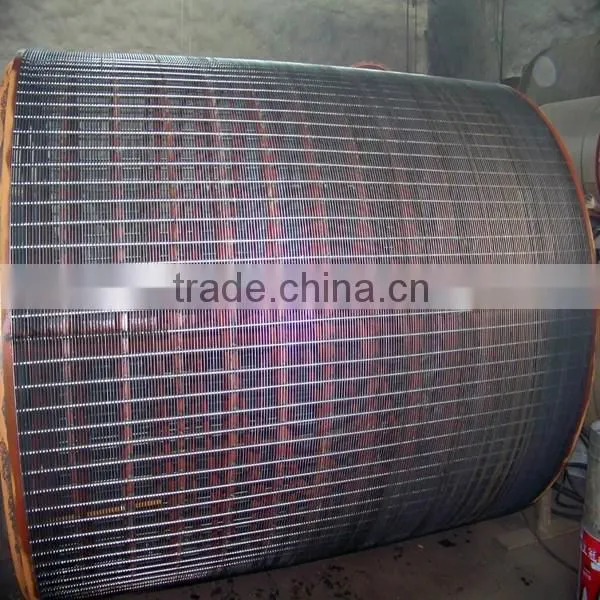

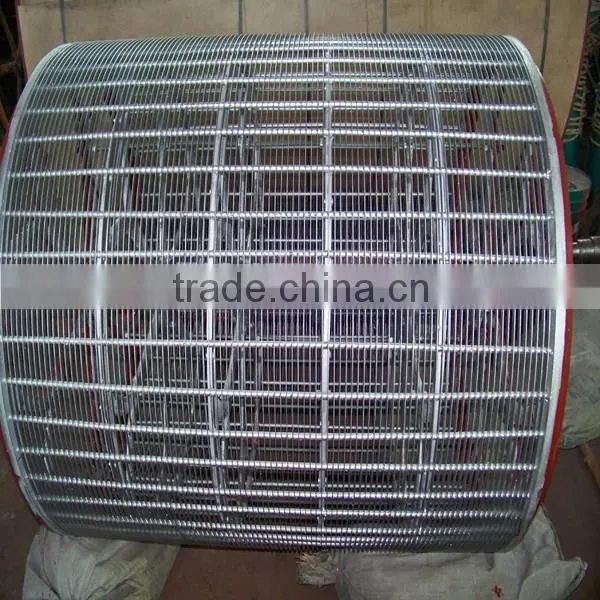

Stainless steel wire mesh machine
wire mesh machine
Chapter Fhree: the main equipment structure
1. Fourdrinier part: The length of fourdrinier part is 18m, vacuum couch roll Φ650mm×2300mm open style
headbox, inner is bordered with stainless steel, drave by two homogenate roll, macromolecule water board,
macromolecule anti-grinding faceplate, suction box 8 pieces. Roll: none slot roll with rubber covered. Frame:
square frame is made of steel.
2. The press part: the main press 2, double, Φ 650mm×2850mm 4 stone rolls, Φ 600mm×2850mm 4 rubber rolls;
shore hardness 95°±2, and pneumatic compression device(standard height and moderate rubber roll)
3. The dryer part: Φ 2500mm×2850mm 2 dryer cans,Φ 1500mm×2850mm 9 dryer cans. arrangment pattern
(1+1+3+sizing machine+6), and pneumatic compression device. equipped with pneumatic guide and electric
mesh-fastener.
4. winding part: 2400mm cylinder winding paper machine and 2400mm rewinding machine.
5. Driving and controlling part: using of AC frequency conversion, and driving by step.

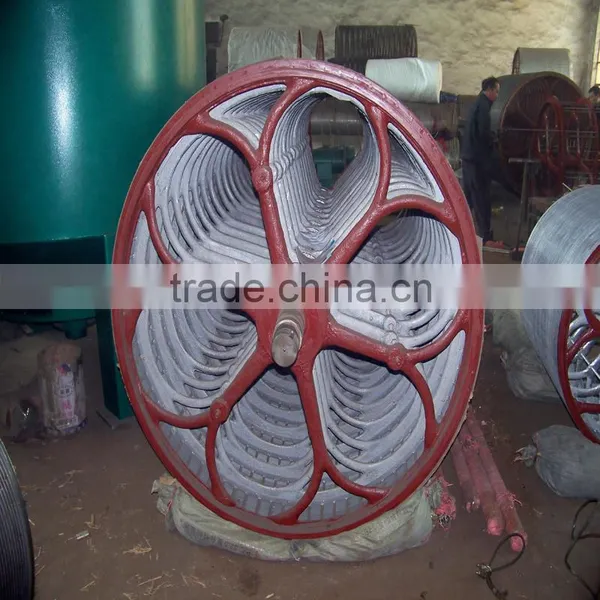

After painting

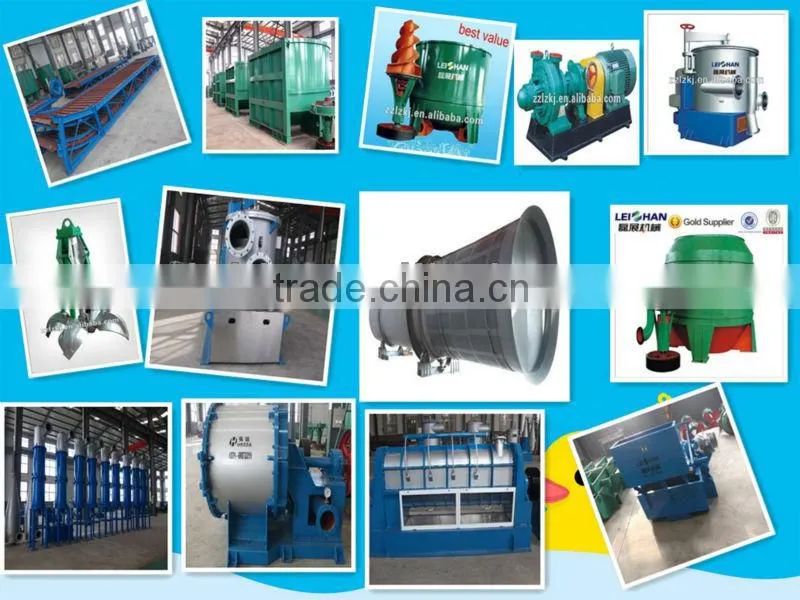

Chapter Four: Paper making, pulping and auxiliary equipment
| 1. 2400mm multi-dryer cylinder and fourdrinier-wire paper machine | 1 set |
| 2. Exhausting hood | 3 sets |
| 3. Flow fan | 2sets |
| 4. SL-4G vacuum pump | 1 set |
| 5. Suction box | 8sets |
| 6.2400mm winding machine | 1set |
| 7. 2400mm rewinding machine | 1set |
| 8. 2400mm sizing machine | 1set |
| 9. Paper transducer | 1set |
| 10. 5 m3 water pulp shredder | 2 sets |
| 11. 2m2 shaking screen | 2 sets |
| 12. Pressure-flow within sieve | 2 set |
| 13.380 double pulping machine | 2 sets |
| 14. Φ700 thruster | 4 sets |
| 15. Pulp-150 | 6 sets |
| 16. Pulp-200 | 4 set |
| 17. 606 desander 20sets | 2groups |
| 18. 4T boiler | 1 set |

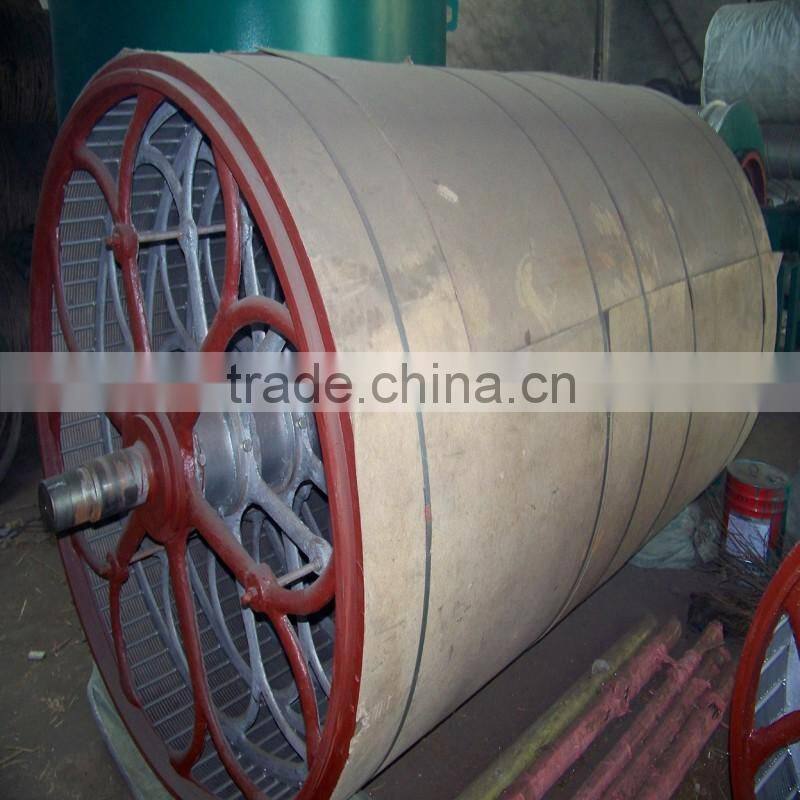

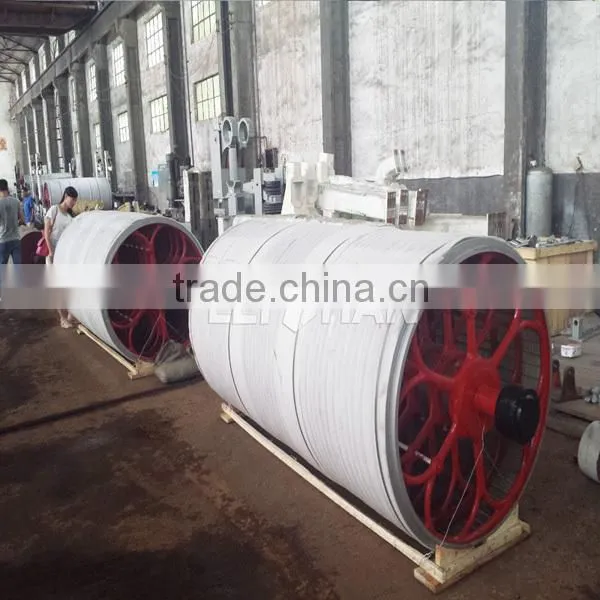

After packing
Why choose us?We have the following advantages:
(1) Excellent characters
1.high speed;
2.good quality;
3.stable working;
4.saving power;
petitive price;
6.high production capacity;
fessional engineers;
8.OEM;
9.can design according to your request.
welded wire mesh
(2)Perfect service:
1. Technical consultation;
2. Project evaluation;
3. Detailed design of factory;
4. Installing and testing the whole production line;
5. Training engineers and workers;
6. Supplying spare parts for long time.
(3)Competitive company:
Our company, Zhengzhou Leizhan Technology Paper Machinery Co., Ltd. located in zhengzhou city,
China,is a leading professional paper machine manufacturer in Chinawith best quality,lower price and perfect service for more than 33 years, which special in pulp making machine,paper making machine and paper processing machine manufacturing.There are two branch factories, total areas is 96,000. Our company gathered one technician team of 116 engineers and 12 experts. We have gained ISO9001:2008 and we have exported many countries, such as Nigeria, Kazakstan, Uzbekistan, Mexico, USA, Pakistan, Brazil, Bhutan,el salvador, Armenia, Afghanistan, Fiji Island, Egypt, Rwanda, Libya, Uganda, Bangladesh, Tajikistan, Eritrea, Paraguay, Egypt, Ghana, Indonesia, Thailand, etc. A. Our company undertakes design, manufacturing, supply, erection and commissioning of paper macines & new pulp mill and modernization of existing pulp mill and paper machines on a turnkey basic. We have the necessary capabilities in project engineering, design, manufacturing and project management.
B. We are professional in manufacturing all kinds of paper rmachine, tissue paper machine, craft paper machine, printing paper machine, coated paper machine. What's more, we aslo design machines as per customer's own requirements. C. OEM Service offered
| After-sale service |
|
1. One year quality warranty,if some parts of the machine damaged of course not by person on purpose we could provide one to you for free. 2. We have after-sale service department, engineers are meant to solve all the problems for customers, either through skype/msn,phone,email or go to customer's factory for free 3. Lifelong time problems inquiring regarding the machines we could help you out any time you contact us. http://zzlzkj.en.china.cn/ |
