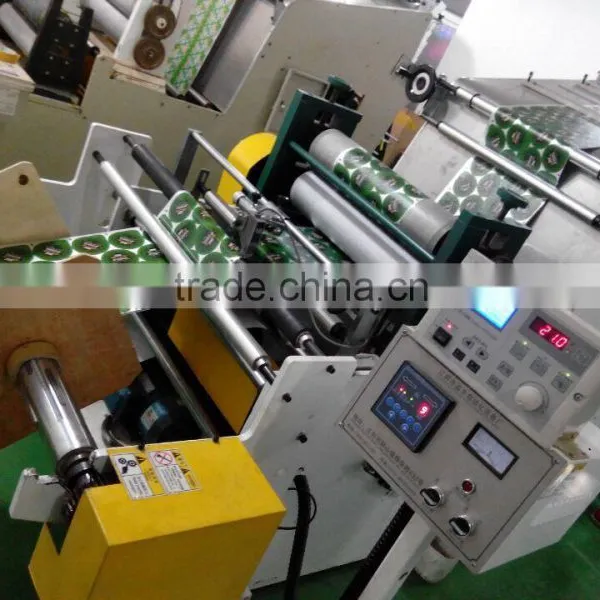

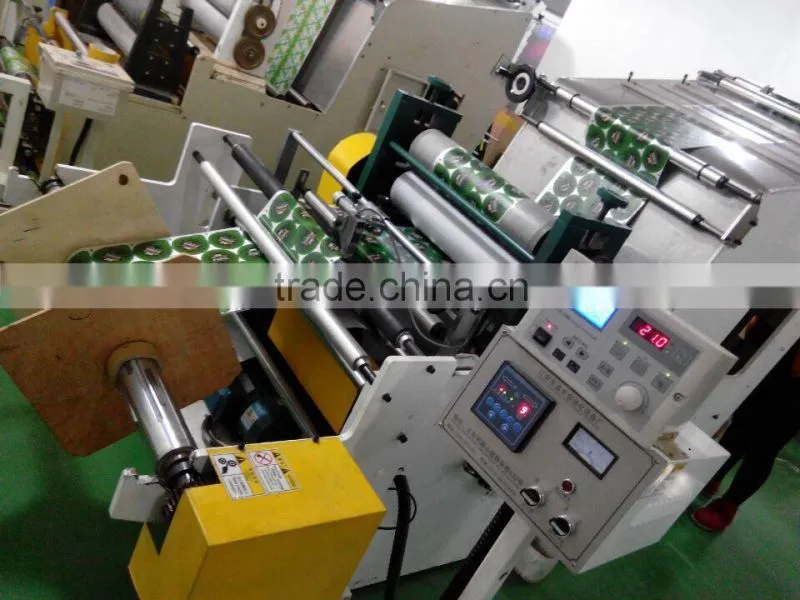

Flexo yogurt aluminum foil lid punching machine

 1.Machine Type: Embossing Aluminum foil Punching Machine

 2.Application: Die Cutting Aluminum Foil Laminating Film,Aluminum foil

 3.Punching Stroke:80-230strokes/minute

 4.Automatic Unwinding Speed: ≤38m/minute

 5.Punching Size: 60-500mm

 6.Precison: ±0.1mm~±0.25mm

 6.Punching Type: Embossing Punching, Profiled Punching

 7.Max. Unwinding Diameter: Φ 600mm;Max.Unwinding Width:500mm

 8.Die Cut Mould: width:500mm;length:600mm

 9.Embossing Roller: 700mm in length

10.Total Power:4.5KW

11.Unity Machine Dimension:(L*W*H):3.0M*1.5M*1.6M

12.Total Weight: 2000KG

13.Color:The whole Body of the machine colored with milky white. Electric Box      colored with milky white.

Machine's Equipments and Relevant Parameters

 1) Main control: China INOVANC Brand PLC and MCGS brand touch screen.

 2) Traction motor: adopt 0.75kw independent motor INOVANCE frequency

     converter and PLC link control.

3) Mould driving motor: with 3.7kw independent motor INOVANCE frequency

    converter and PLC link control.

4)Tension control motor: 3kw servo motor,INOVANCE PLC Link control.

5) Unwinding device with 50NM magnetic brake tension control.

6) Main motor 3.7kw AC 3 phase frequency conversion motor control by INOVANCE

    frequency converter.

7) Unwinding lock: Pneumatic style

8) Leftover material Recycler:Torque rewinding
